Product Description

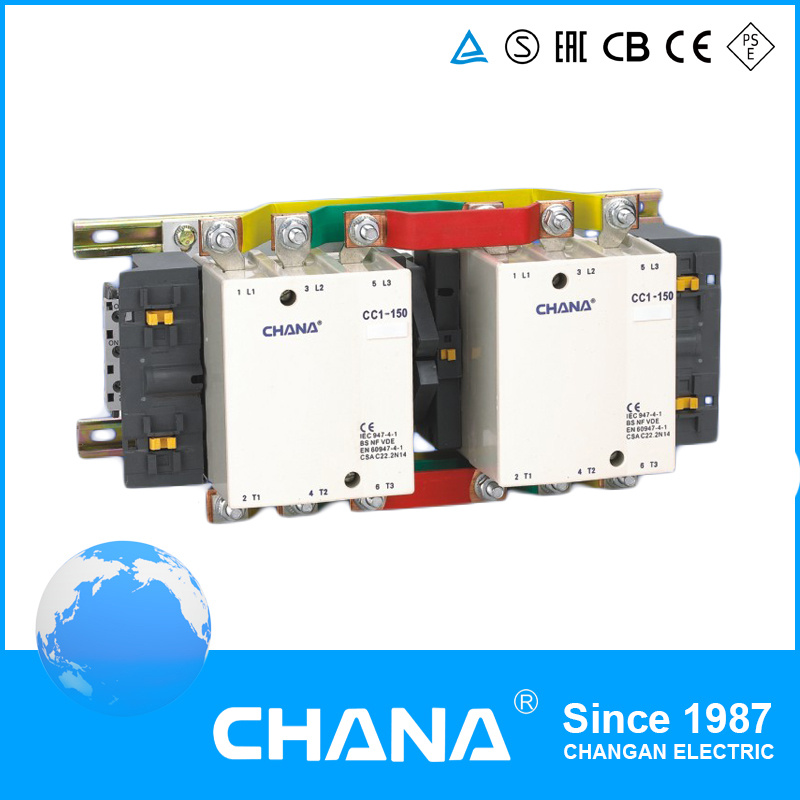

Product Name: CC1-N Change-over type Contactor
1. General Changeover contactor
Application: Remote making & breaking circuits; Protect circuit
From over-load when assembling with thermal over-load relay;
Frequent start-up and control of AC contactor;
Electric ratings: AC50/60Hz, 690V, up to 95A;
Utilization category: AC-3, AC-4;
Altitude: ≤ 2000m;
Ambient temperature: -5º C~+40º C;
Mounting category: III;
Mounting conditions: Inclination between the mounting plane and the vertical plane should not exceed ± 5° ;
Standard: IEC/EN 60947-4-1. IEC/EN 60947-5-1.
2. Type Designation of the changeover contactor
3. Structure of changeover contactor
The contactors are composed of two horizontally mounted contactors through mechanical interlock.
The lateral-side interlock is mounted between the two contactors.
5. Technical Data of changeover contactor
6. Overall and Mounting Dimensions (mm) of the changeover contactor
About US:
Changan Group Co., Ltd specializing in the R&D, manufacture and sale of low voltage Products, such as Circuit Breakers, Contactors, Relays, Switches, Distribution boxes and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.
1. We already get the certificate of ISO9001, CE, SGS. CB IEC TUV
2. We have 27 years of manufacture and 17 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Bengal, Thailand, south American, Mid-east market and so on.
How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM is welcomed. Free OEM for more than usd3000 orders.
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We usually use T/T
2.30% deposit and 70% before shipping
3. L/C also acceptable
Warranty:
1. We provide 1.5 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
TYpe | CC1-
09 | CC1-
12 | CC1-
18 | CC1-
25 | CC1-
32 | CC1-
40 | CC1-
50 | CC1-
65 | CC1-
80 | CC1-
95 |
| Rated working current (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 |
| AC3 capacity of three-phase squirrel-cage motor AC3(kW) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 |
| 440V | 4 | 5.5 | 9 | 11 | 15 | 22 | 30 | 37 | 45 | 45 |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 |
| Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 |
| Electrical life | AC4X104 | 20 | 20-15 | 20-7 | 15-7 | 15-7 | 10-7 | 7 | 7-6 | 7-5 | 7-5 |
| AC3X106 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1.6 | 1.6 | 1.6 |
| Mechanical lifeX106 | 20 | 20 | 20 | 20 | 20 | 20 | 50 | 20 | 10 | 10 |
| Number of the contact | 3P+NO OR 3P+NC |
| 3P+NO+NC |
| Matched auxiliary contact type | LA1-DN02(2NC),LA1-DN11(1NO+NC),LA1-DN20(2NO),LA1-DN22(2NO+2NC),LA1-DN40(4NO,LA1-DN04(4NC),LA1-DN13(1NO+3NC),LA1-DN31(3NO+1NC) |
| Matched time delay auxiliary contact type | Time delay after power on:LA2-DT0(0.1-3S),LA2-DT2(0.1-30S),LA2-DT4(10-180S),Time delay after power off:LA3-DR0(0.1-3S),LA3-DR2(0.1-30S),LA3-DR4(10-180S)
|
