IEC Standard Single Core Strand Solid Copper/Aluminum Electrical Wire

IEC Standard Single Core Strand Solid Copper/Aluminum Electrical Wire
Price: US $ 0.1-30/Meter
Min Order: 100/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: electrical wire
Product Name: Aluminum Wire Price/ 4 Sq mm Aluminum Core PVC Ins
Rated Voltage: 300/500V 450/750V
Conductor: Copper
Insulation: XLPE/PVC
Sheath: PVC/PE
Core Number: 1 2 3 4 5 6 7 8 9 10
Color Color: Red, Yellow, Blue, Green or as Your Requirement
Origine: Shandong, China
Packaging: Wooden Drum
Shipping: 3-10 Working Days
Application: Power Station
Voltage: Low and Medium Voltage Cable
Current: DC & AC
Insulation Material: XLPE
Certification: VDE
Model: XLPE Power Cable
Brand: Chan Qing Teng

Product Description

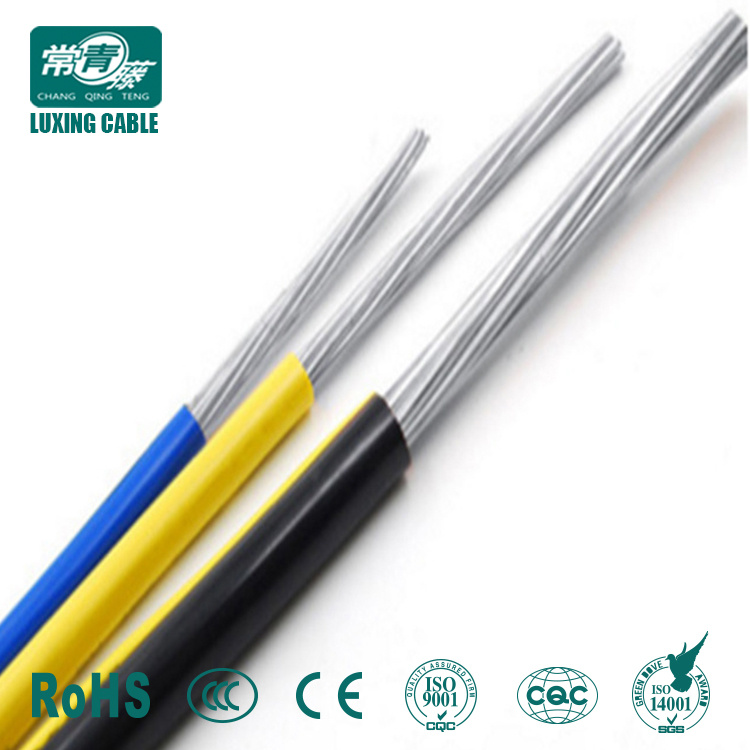

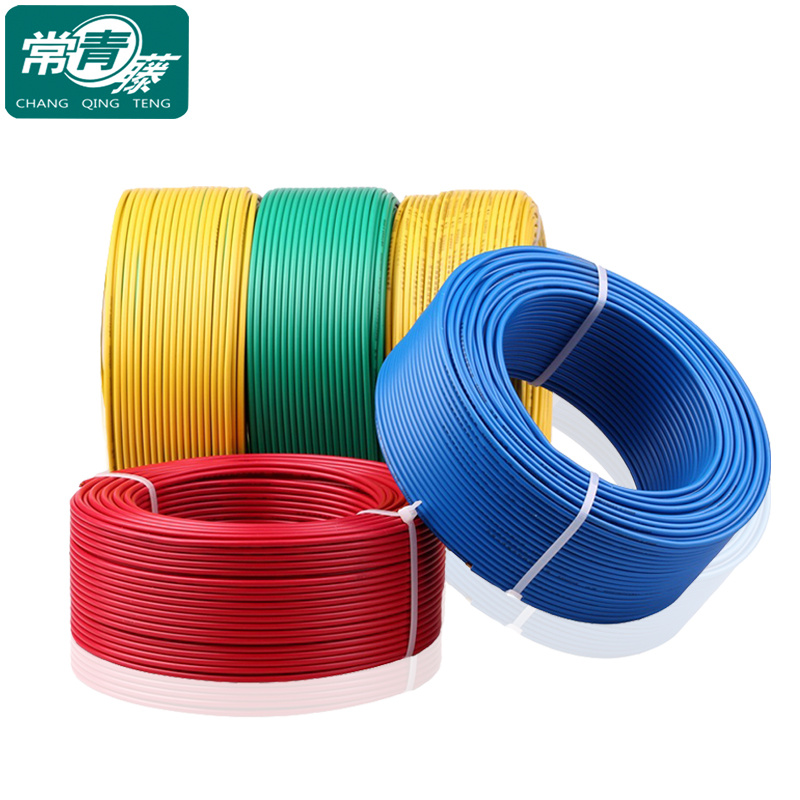

        IEC standard single core strand solid copper/aluminum electrical wire


1 Product name: IEC standard single core strand solid copper/aluminum electrical wire

2 Color: black,white,red,blue,green,gray,etc

3  Application:
This product is fit for AC rated voltage 450/750 V and below of domestic electrical appliances,of smaller size motorriace tools,
of various meters and motorized lighting installations.



4 Use features:
Installation temperature not lower than 0ºC,and the bending radius should not be less than 10 times of
outer dismeter of cable;The long-time working temperature of cable should not be higher than 70ºC;
When core is in short-circuit(max 5s)the temperature should not exceed 160ºC.

5Nominal cross section area of conductor:
0.5 mm2,0.75 mm2,1.0 mm2,1.5mm2,2.5mm2,4mm2,6mm2,10 mm2,
16 mm2,25 mm2,35 mm2,50 mm2,up to 400mm2

6 Conductor:  copper cu/aluminum al/tinned copper

7  Insulation material:  PVC

8  Core: 1 core,2 core,3 core,4 core,5 core

9  Rated voltage:  low voltage,300/500 v,470/750 v,450/750 v

10  Insulation thickness:  0.6mm 0.7mm 0.8mm 1.0mm,1.5 mm,2 mm,or according requirements

11  Armour:  can be armored if it is needed

12  Steel tape thickness: NA

13  Sheath thickness:   0.6mm 0.7mm 0.8mm 1.0mm,1.5 mm,2 mm,or according requirements

14  Approx.overrall/average diameter of cable: 2.4-33mm

15  Approx weight of cable:  copper conductor 20.3-3870 kg/km;aluminum conductor 17-1390 kg/km

16  Conductor resistance at 20ºC:  copper conductor ≤0.0778-12.1Ω/km,aluminum conductor ≤0.0470-11.80Ω/km

17  Other product describtion:  as follows

NameModel Cores Production scope Rated voltage(V) Execution standard
60227 IEC 01
 (BV)
common usage single core rigid conductor cable without sheath 11.5~400450/750GB5023.3
60227 IEC 02
 (RV)
common usage single core flexible conductor cable without sheath 11.5~240450/750
60227 IEC 05
 (BV)
single core solid conductor cable without sheath for internal wiring, conductor temp is 70ºC10.5-1300/500
60227 IEC 06
 (RV)
single core flexible conductor cable without sheath for internal wiring, conductor temp is 70ºC10.5-1300/500
60227 IEC 07
 (BV-90)
single core solid conductor cable without sheath for internal wiring, conductor temp is 90ºC10.5~2.5300/500
60227 IEC 08
 (RV-90)
single core flexible conductor cable without sheath for internal wiring, conductor temp is 90ºC10.5~2.5300/500
60227 IEC 10
 (BVV)
Light type PVC sheath cable 2~51.5~35300/500GB5023.4
60227 IEC 52
 (RVV)
Light type PVC sheath flexible cable2, 3 0.5, 0.75300/500GB5023.5
60227 IEC 53
 (RVV)
Common PVC sheath flexible cable2~50.75~2.5300/500
BVCopper core PVC insulation cable 10.75~1300/500JB8734.2
BLV Aluminum core PVC insulation cable 12.5~400450/750
BVRCopper core PVC insulation flexible cable12.5~70450/750
BVV Copper core PVC insulation and sheath round cable10.75~10300/500
BLVVAluminum  core PVC insulation and sheath round cable 2.5~10300/500
BVVBCopper core PVC insulation and sheath flat cable1,2,30.75~10300/500
BLVVBAluminum core PVC insulation and sheath flat cable1,2,32.5~10300/500
RVVPCopper core PVC insulation and sheath screened  flexible cable(wire)1,2,3,
4~24
0.3~2.5
0.3~1.5
0.2~0.4
300/300JB8734.5

Packaging & Shipping

Material:
Steel wooden drum( fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity.
Larger quantity, more discount benefit ready for you!

Port: Tianjin, Qingdao, or other ports as per your requirements.

Sea freight and insurance fee:

FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

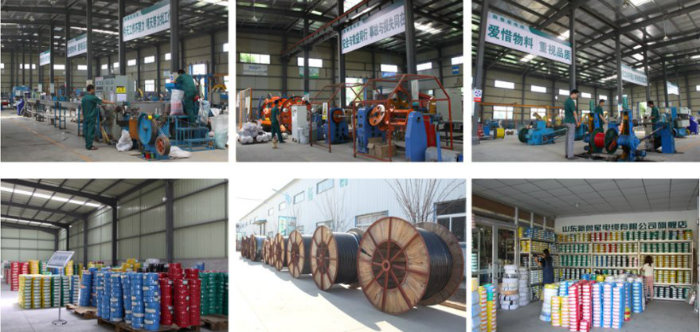

Luxing Factory : our production base

VR Video Show:
China Electric Cable Manufacturer
http://720yun.com/t/nog9w79oojtarrymua?pano_id=VWbhWj3AEEfEAb8T


Luxing Cable Mainly Produce
300/500V 450/750V electrical wire AAC conductor
600/1000V PVC insulated cableAAAC conductor
600/1000V XLPE insulated cableACSR conductor
1.8/3KV to 26/35KV power cable OPGW
Armored underground cableABC cable
Control cable and instrumentation cables Rubber cable

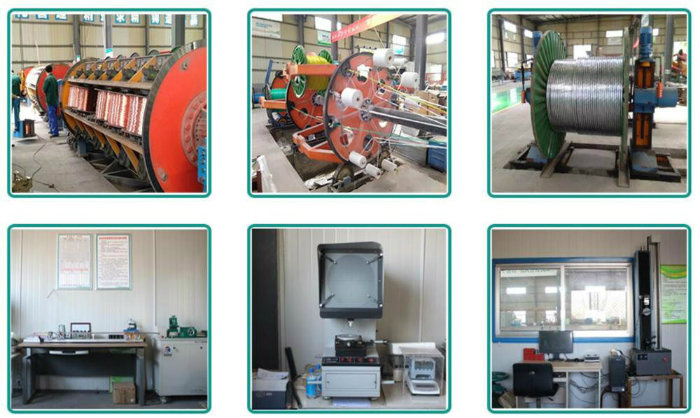

Strict Quality Test


Packaging & Shipping


Why Choose US

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

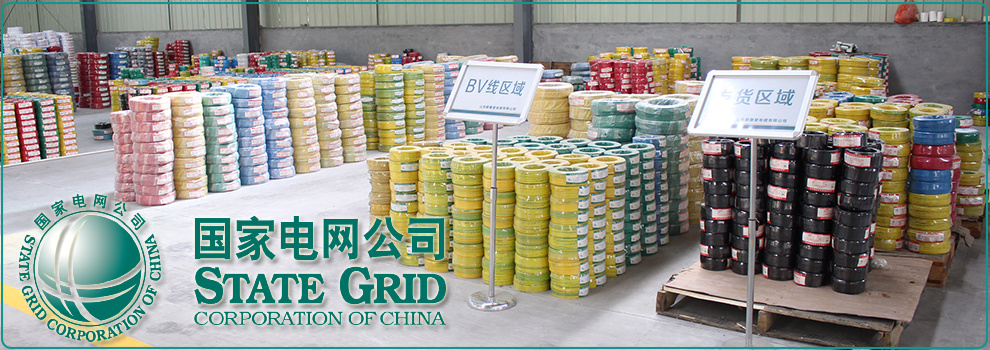

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
