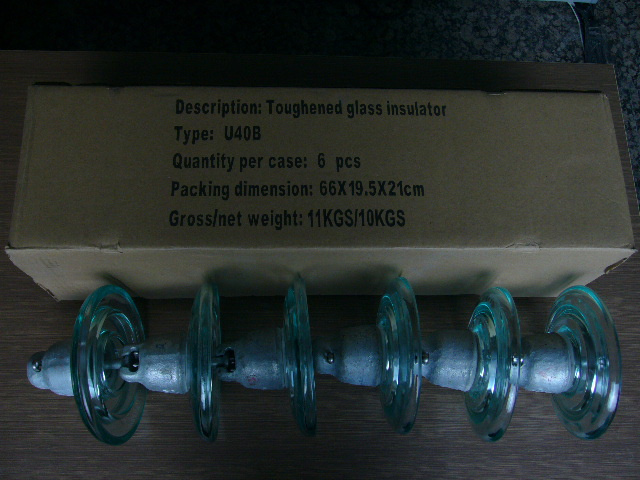

IEC Standard Suspension Insulator Glass Insulator

Name: IEC Standard Suspension Insulator Glass Insulator
Brand: all-electronics-online.com
SKU: 677035545
Availability: InStock
Rating: 5 (119 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	U
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mechanical Failing Load:	40kn,70kn,120kn,etc
Application:	High-voltage
Structure:	Suspension Insulator
Material:	Toughened Glass
Connection Method:	Plug in Socket Eye
Color:	Cyan
Brand:	Cowinelec, OEM or ODM

Product Description

* According To IEC60305: 1995, MOD
* Standard according to IC60120: 1984, Equ & Section 2 of VS3288, W or R pin.
For U70-U160, W type pin; U40, U210-U550 R type Pin
* Power frequency according to IEC60383-1: 1993, MOD & section 1 BS 137/1982
* Nice appearance, strong quality, nice packing and competive price

Type number	Mechanical failing load(kN)	Electromechanical load test value(KN /1hour)	Unit spacing(mm)	Nominal diameter(mm)	Minimum nominal creepage distance(mm)	50%Lightning flashover voltage(peek)KV	1 minute wet withstand voltage(kv)	Power Frequency puncture voltage(kv)	unit weight(kg)
LXHY4-70	70	52.5	146	255	500	120	45	130	5.2
LXHY-100	100	75	146	255	500	120	45	130	5.2
LXHY-120	120	90	146	255	500	120	45	130	5.3
LXHY3-160	160	120	155	280	450	125	50	130	7.0
LXHY3-210	210	157.5	170	320	550	140	55	130	9.6
LXHY3-240	240	180	170	320	550	140	55	130	9.9

Glass insulator

Currency designation	U160B/155	U210B/170	U240B/170
Designation	LXP6-160	LXP6-210	LXP6-240
(mm)Diameter D	360	360	360
(mm)Spacing H	155	170	170
(mm)Creepage L	550	550	550
(mm)Socket soupling	20	20	24
(KN)Mechanical failing Load	160	210	240
(KN)Mechanical routine test	80	105	120
(KV)Wet Power frequency withstand voltage	45	45	45
(KV)Dry lighting impulse withstand voltage	110	110	110
(P.U)Impulse puncture voltage	2.8	2.8	2.8
(KV) Power frequency puncture voltage	/	/	/
(μV)Rodio influence voltage(10KV, 1MHZ)	50	50	50
(KV)Corona visual test	18/22	18/22	18/22
power frequency electric arc voltage	0.12s/20kA	0.12s/20kA	0.12s/20kA
(kg)Net weight per unit	10.1	10.1	10.2

PROFESSOINAL: High Voltage Electrical Materials and Poleline Hardwares

Cowin Electrical Co., Ltd, is located in the largest manufacturing base of low-voltage electric equipment of Liushi China, which is called "the Electric Device Metropolis of China".

Cowin regards quality of products as life. We have standard Management System. We produce and widely sell over 300 series, more than 10000 types in high-and-low voltage electrical device, complete equipment, power transformer, cable and wire, instrument and meter, welding equipment, which are praised by all users. A number of new independent intellectual property right, intelligent appliances is moving into the market.

We are keeping our business principles for "Approaching the first-class management, producing the first-class products, providing the first-class service". All Cowin staffs are working hard and constantly innovate.

Honest Cowin are welcome to all users to fighting a better tomorrow hand in hand, Cowin -Cooperation and doulbe win.
