Prod Model: |
Y2-100L1-4-2.2KW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Blue or to Request |
Power: |
2.2kw |
Voltage: |
220/380V, 380/660V, 660/1140V |
Application: |
Industrial |
Operating Speed: |
Low Speed |
Number Of Stator: |
Three-Phase |
Species: |
Y, Y2 Series Three-Phase |
Rotor Structure: |
Squirrel-Cage |
Casing Protection: |
Closed Type |
Starting Mode: |
Direct on-line Starting |
Brand: |
Kailida |
Product Description

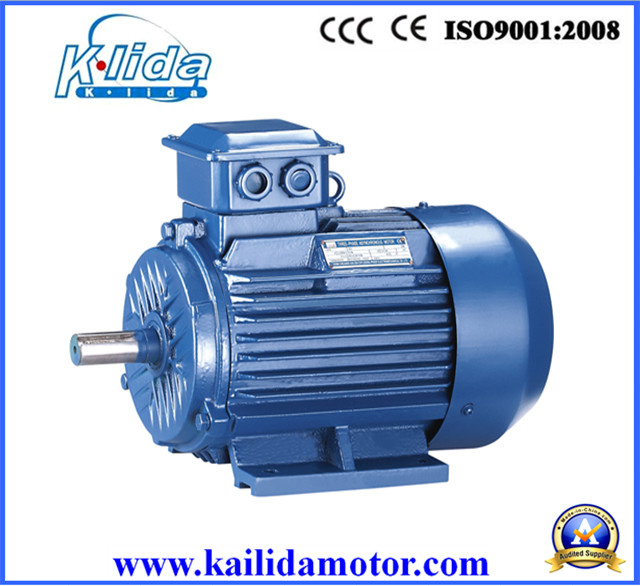

Y2 series three-phase induction motor is specially designed for European market, whose terminal box is located on the top. This motor has a very compact structure and attractive appearance. The sizes and mounting dimensions are produced according to the IEC standard. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.
We can also supply aluminum housing type for frame size below IEC132.
Operating Conditions
Ambient temperature: -15 Centigrade≤ θ ≤ 40 Centigrade
Altitude: Altitude should be lower than 1000meters above sea level.
Rated voltage: 380V Rated frequency: 50Hz
Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
Duty/Rating: Continuous (S1).
Insulation class: F, the temperature rise of the stator winding is examined at 80K (by resistance method).
Protection class: The main body of the motor is IP54
Cooling method: IC411.
TECHENICAL DATA OF Y2 SERIES |
Type | Rated Power | Current | Speed | EFF | Power Factor | Tst/Tn | Ist/In | Mst/Tn | Noise | Libration grade |
kW | HP | A | r/min | (%) | COSφ | (dB) | (mm/s) |
Y2-631-2 | 0.18 | 0.24 | 0.53 | 2730 | 65 | 0.8 | 5.5 | 2.2 | 2.2 | 61 | 1.8 |
Y2-632-2 | 0.25 | 0.33 | 0.69 | 2730 | 68 | 0.81 | 5.5 | 2.2 | 2.2 | 61 | 1.8 |
Y2-711-2 | 0.37 | 0.5 | 0.99 | 2750 | 70 | 0.81 | 6.1 | 2.2 | 2.2 | 64 | 1.8 |
Y2-712-2 | 0.55 | 0.75 | 1.39 | 2790 | 73 | 0.82 | 6.1 | 2.2 | 2.3 | 64 | 1.8 |
Y2-80M1-2 | 0.75 | 1 | 1.83 | 2845 | 75 | 0.83 | 6.1 | 2.2 | 2.3 | 67 | 1.8 |
Y2-80M2-2 | 1.1 | 1.5 | 2.6 | 2840 | 77 | 0.84 | 7.0 | 2.2 | 2.3 | 67 | 1.8 |
Y2-90S-2 | 1.5 | 2 | 3.5 | 2840 | 79 | 0.84 | 7.0 | 2.2 | 2.3 | 72 | 1.8 |
Y2-90L-2 | 2.2 | 3 | 4.9 | 2840 | 81 | 0.85 | 7.0 | 2.2 | 2.3 | 72 | 1.8 |
Y2-100L-2 | 3 | 4 | 6.4 | 2850 | 83 | 0.87 | 7.5 | 2.2 | 2.3 | 76 | 1.8 |
Y2-112M-2 | 4 | 5.5 | 8.1 | 2890 | 85 | 0.88 | 7.5 | 2.2 | 2.3 | 77 | 1.8 |
Y2-132S1-2 | 5.5 | 7.5 | 11 | 2910 | 86 | 0.88 | 7.5 | 2.2 | 2.3 | 80 | 1.8 |
Y2-132S2-2 | 7.5 | 10 | 15 | 2920 | 87 | 0.88 | 7.5 | 2.2 | 2.3 | 80 | 1.8 |
Y2-160M1-2 | 11 | 15 | 22 | 2935 | 88 | 0.89 | 7.5 | 2.2 | 2.3 | 86 | 2.8 |
Y2-160M2-2 | 15 | 20 | 29 | 2935 | 89 | 0.89 | 7.5 | 2.2 | 2.3 | 86 | 2.8 |
Y2-160L-2 | 18.5 | 25 | 35 | 2935 | 90 | 0.9 | 7.5 | 2.0 | 2.3 | 86 | 2.8 |
Y2-180M-2 | 22 | 30 | 41 | 2940 | 90 | 0.9 | 7.5 | 2.0 | 2.3 | 89 | 2.8 |
Y2-200L1-2 | 30 | 40 | 56 | 2945 | 91.2 | 0.9 | 7.5 | 2.0 | 2.3 | 92 | 2.8 |
Y2-200L2-2 | 37 | 50 | 68 | 2945 | 92 | 0.9 | 7.5 | 2.0 | 2.3 | 92 | 2.8 |
Y2-225M-2 | 45 | 60 | 82 | 2950 | 92.3 | 0.9 | 7.5 | 2.0 | 2.3 | 92 | 2.8 |
Y2-250M-2 | 55 | 75 | 100 | 2965 | 92.5 | 0.9 | 7.5 | 2.0 | 2.3 | 93 | 3.5 |
Y2-280S-2 | 75 | 100 | 136 | 2965 | 93 | 0.9 | 7.5 | 2.0 | 2.3 | 94 | 3.5 |
Y2-280M-2 | 90 | 125 | 160 | 2965 | 93.8 | 0.91 | 7.1 | 2.0 | 2.3 | 94 | 3.5 |
Y2-315S-2 | 110 | 150 | 196 | 2975 | 94 | 0.91 | 7.1 | 1.8 | 2.2 | 96 | 3.5 |
Y2-315M-2 | 132 | 180 | 234 | 2975 | 94.5 | 0.91 | 7.1 | 1.8 | 2.2 | 96 | 3.5 |
Y2-315L1-2 | 160 | 215 | 280 | 2975 | 94.6 | 0.92 | 7.1 | 1.8 | 2.2 | 99 | 3.5 |
Y2-315L2-2 | 200 | 270 | 348 | 2975 | 94.8 | 0.92 | 7.1 | 1.8 | 2.2 | 99 | 3.5 |
Y2-355M2-2 | 250 | 340 | 433 | 2980 | 95.3 | 0.92 | 7.1 | 1.8 | 2.2 | 103 | 3.5 |
Y2-355L2-2 | 315 | 420 | 544 | 2980 | 95.6 | 0.92 | 7.1 | 1.8 | 2.2 | 103 | 3.5 |
Y2-631--4 | 0.12 | 0.16 | 0.44 | 1320 | 57 | 0.72 | 4.4 | 2.1 | 2.2 | 52 | 1.8 |
Y2-632-4 | 0.18 | 0.24 | 0.62 | 1320 | 60 | 0.73 | 4.4 | 2.1 | 2.2 | 52 | 1.8 |
Y2-711-4 | 0.25 | 0.33 | 0.79 | 1350 | 65 | 0.74 | 5.2 | 2.1 | 2.2 | 55 | 1.8 |
Y2-712-4 | 0.37 | 0.5 | 1.12 | 1340 | 67 | 0.75 | 5.2 | 2.1 | 2.3 | 55 | 1.8 |
Y2-80M1-4 | 0.55 | 0.75 | 1.57 | 1390 | 71 | 0.75 | 6.0 | 2.4 | 2.3 | 58 | 1.8 |
Y2-80M2-4 | 0.75 | 1 | 2.05 | 1380 | 73 | 0.76 | 6.0 | 2.3 | 2.3 | 58 | 1.8 |
Y2-90S-4 | 1.1 | 1.5 | 2.9 | 1390 | 75 | 0.77 | 6.0 | 2.3 | 2.3 | 61 | 1.8 |
Y2-90L-4 | 1.5 | 2 | 3.7 | 1410 | 78 | 0.79 | 7.0 | 2.3 | 2.3 | 61 | 1.8 |
Y2-100L1-4 | 2.2 | 3 | 5.2 | 1410 | 80 | 0.81 | 7.0 | 2.3 | 2.3 | 64 | 1.8 |
Y2-100L2-4 | 3 | 4 | 6.8 | 1440 | 82 | 0.82 | 7.0 | 2.3 | 2.3 | 64 | 1.8 |
Y2-112M-4 | 4 | 5.5 | 8.8 | 1445 | 84 | 0.82 | 7.0 | 2.3 | 2.3 | 65 | 1.8 |
Y2-132S-4 | 5.5 | 7.5 | 11.9 | 1445 | 85 | 0.83 | 7.0 | 2.3 | 2.3 | 71 | 1.8 |
Y2-132M-4 | 7.5 | 10 | 16 | 1460 | 87 | 0.84 | 7.0 | 2.3 | 2.3 | 71 | 2.8 |
Y2-160M-4 | 11 | 15 | 23 | 1470 | 88 | 0.84 | 7.5 | 2.2 | 2.3 | 75 | 2.8 |
Y2-160L-4 | 15 | 20 | 30 | 1470 | 89 | 0.85 | 7.5 | 2.2 | 2.3 | 75 | 2.8 |
Y2-180M-4 | 18.5 | 25 | 36 | 1475 | 90.5 | 0.86 | 7.5 | 2.2 | 2.3 | 76 | 2.8 |
Y2-180L-4 | 22 | 30 | 43 | 1475 | 91 | 0.86 | 7.2 | 2.2 | 2.3 | 76 | 2.8 |
Y2-200L-4 | 30 | 40 | 58 | 1475 | 92 | 0.86 | 7.2 | 2.2 | 2.3 | 79 | 2.8 |
Y2-225S-4 | 37 | 50 | 70 | 1485 | 92.5 | 0.87 | 7.2 | 2.2 | 2.3 | 81 | 2.8 |
Y2-225M-4 | 45 | 60 | 85 | 1485 | 92.8 | 0.87 | 7.2 | 2.2 | 2.3 | 81 | 3.5 |
Y2-250M-4 | 55 | 75 | 103 | 1485 | 93 | 0.87 | 7.2 | 2.2 | 2.3 | 83 | 3.5 |
Y2-280S-4 | 75 | 100 | 140 | 1485 | 93.8 | 0.87 | 7.2 | 2.2 | 2.3 | 86 | 3.5 |
Y2-280M-4 | 90 | 125 | 197 | 1485 | 94.2 | 0.87 | 6.9 | 2.1 | 2.2 | 93 | 3.5 |
Y2-315S-4 | 110 | 150 | 201 | 1485 | 94.5 | 0.87 | 6.9 | 2.1 | 2.2 | 93 | 3.5 |
Y2-315M-4 | 132 | 180 | 241 | 1485 | 94.8 | 0.88 | 6.9 | 2.1 | 2.2 | 97 | 3.5 |
Y2-315L1-4 | 160 | 215 | 288 | 1485 | 94.9 | 0.88 | 6.9 | 2.1 | 2.2 | 97 | 3.5 |
Y2-315L2-4 | 200 | 270 | 360 | 1485 | 95 | 0.89 | 6.9 | 2.1 | 2.2 | 97 | 3.5 |
Y2-355M3-4 | 250 | 340 | 443 | 1490 | 95.3 | 0.9 | 6.8 | 2.1 | 2.2 | 101 | 3.5 |
Y2-355L3-4 | 315 | 420 | 556 | 1490 | 95.6 | 0.9 | 6.8 | 2.1 | 2.2 | 101 | 3.5 |


CERTIFICATE

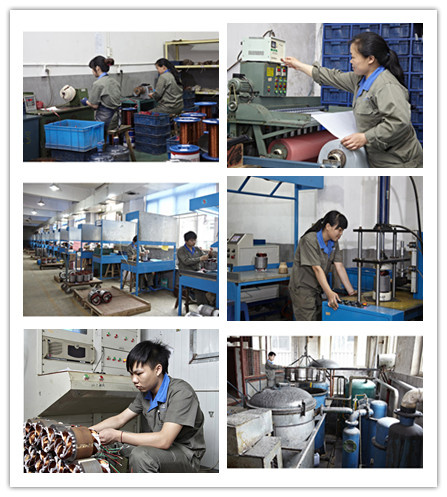

Zhejiang Kailida Explosion-Proof Electromechanical Co., Ltd. is an advanced manufacturer integrating design, production, sales and service. We specialize in developing & manufacturing electric motor, explosion-proof motors. We make progress and improvement constantly with complete quality checking facilities and strict quality controlling feedback system.
Main products include YB2, YBFseries explosion-proof motor. YS, Y, Y2, Y3, YX3, YSF series three phase electric motor, YC, YY, YL series single phase motor. We have passed ISO9001: 2000 quality management system, CCC, EXDI, EXDII BT4, MA and CE certification. Our products have been distributed to Europe, Middle East, southeast Asia, Africa, and so on.
We believe "best quality, highest reputation, important clients". We offer high quality products with competitive price and best service. We sincerely hope to establish steady cooperation with customers all of the world based on mutual benefits.
