| Prod Model: |
BIC-435-V4.35 |
| Final Foil External: |
1.0 Oz |
| Final Height Of PCB: |
0.3mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
None |
| Colour Of Component Legend: |
None |
| RoHS Required: |
Yes |
| Workmanship: |
Ipc-6012c Class 2 |
| Thermal Shock Test: |
No Blistering |
| Warpage : |
0.15% |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4350b |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
Microwave PCB Board 2 Layer Tg280 RO4350B 10 mil With Immersion Gold
Commodity Introduction

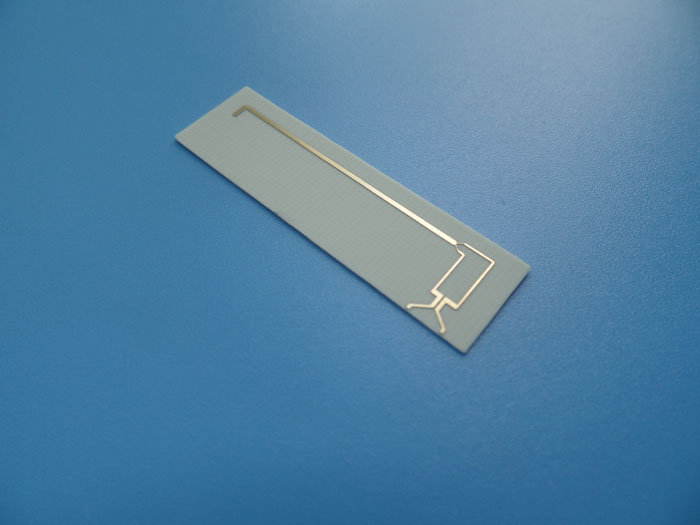

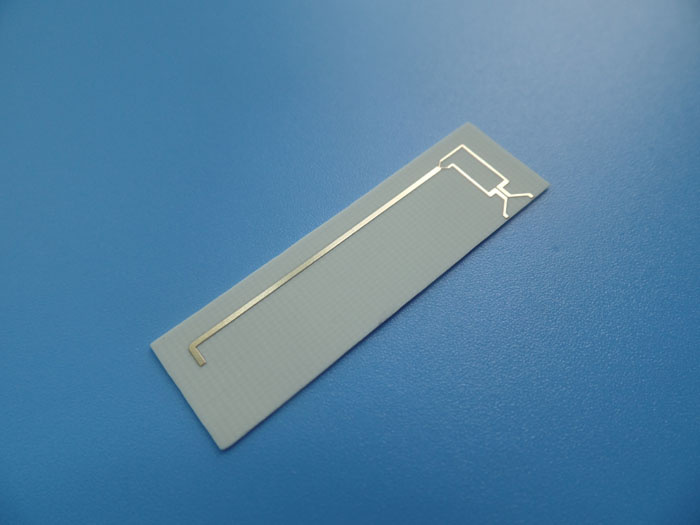

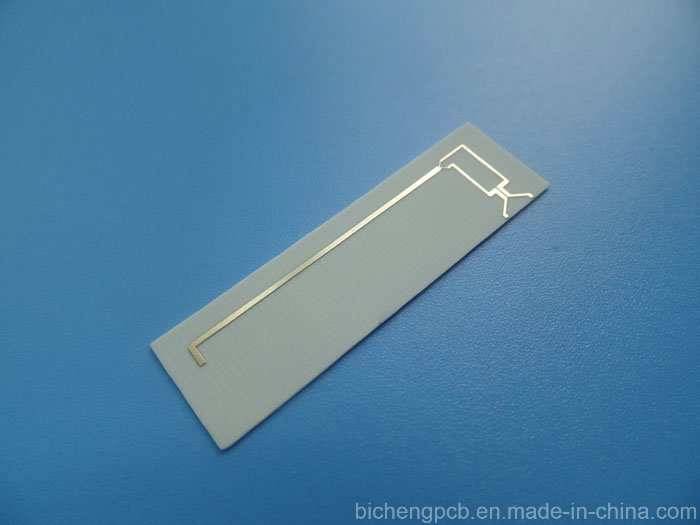

This is a type of Double sided PCB board at 0.3mm thick for the application of antenna. The base laminate is Tg 280 RO4350B from Rogers Corp. No solder mask and silkscreen applied. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards are packed separately.
Parameters & Data Sheet| Number of Layers | 2 |
| Board Type | High Frequency PCB |
| Board Thickness | 0.30 mm +/-0.03 |
| Board Material | RO4350B |
| Board Material Supplier | Rogers Corp |
| Tg Value of Board Material | 280ºC |
| |
| PTH Cu thickness | ≥20 um (See hole wall details) |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1 oz) |
| |
| Solder Mask Type and Model No. | NA |
| Solder Mask Supplier | NA |
| Solder Mask Colour | NA |
| Number of Solder Masks | NA |
| Thickness of Solder Mask | NA |
| |
| Type of Silkscreen Ink | |
| Supplier of Silkscreen | NA |
| Color of Silkscreen | NA |
| Number of Silkscreen | NA |
| |
| Mininum Trace (mil) | - |
| Minimum Gap(mil) | - |
| |
| Surface Finish | Immersion Gold |
| RoHS Required | Yes |
| Warpage | 0.15% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles. No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Outline dimension Unit: mm| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 10.00 | ±0.15 | 10.01 | 10.02 | 10.01 | 10.02 |
| 2 | 37.00 | ±0.15 | 37.02 | 37.01 | 37.00 | 37.02 |
Double sided PCBGenerally, there're 5 types of 2 layer PCB's available from us. (1) FR-4 material (The most common used today) Normal TG, High TG 170, High CTI 600V Material (CCL) Brand: ITEQ, SHENGYI, KB (2) High frequency material RO4350B, RO4003C PTFE (F4B series from China Brand) (3) Insulated Metal Substrate (IMS) PCB, typical stack-up as follows L1---Copper conductor PP---dielectric material L2---copper conductor PP---dielectric material AL---aluminum base (4) Metal core PCB (MCPCB), typical stack-up as follows L1---copper conductor PP---dielectric material AL---aluminum core PP---dielectric material L2---copper conductor (5)Polyimide material (Flexible PCB)
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
