Immersion Gold Multilayer PCB 6 Layer with Green Soldermask

Name: Immersion Gold Multilayer PCB 6 Layer with Green Soldermask
Brand: all-electronics-online.com
SKU: 823318125
Availability: InStock
Rating: 4.7 (35 reviews)

Price:	US $ 0.89/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-247-V2.47
Outer Copper Foil:	1 Oz
Board Thickness:	1.6mm
Surface Treament:	Enig
Solder Mask:	Green
Legend Color:	White
Min Line Width (Mil):	6.2 Mil
Min Line Spacing (Mil):	5.3 Mil
Electrical Test:	100% PCB Passed
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Solderability Test:	245ºC 5s 1 Cycle
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

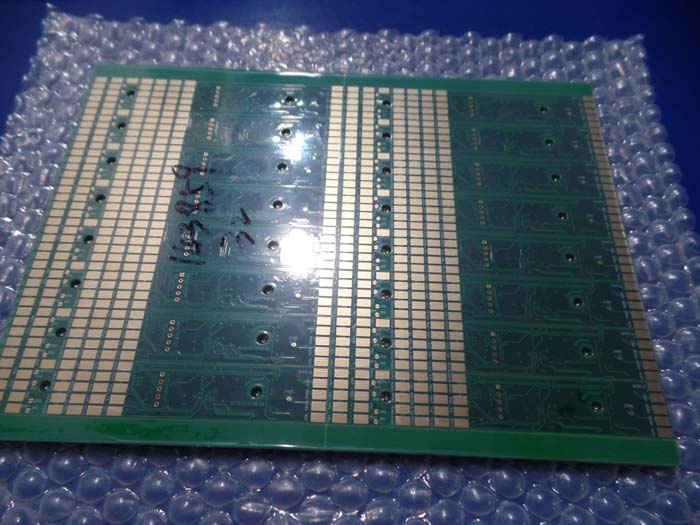

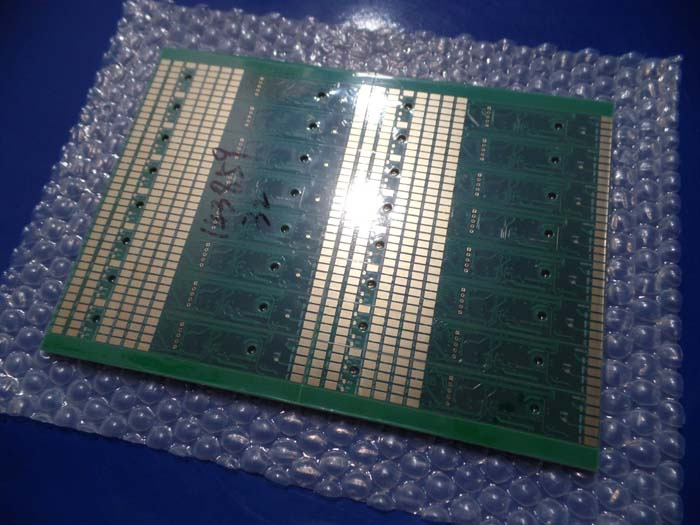

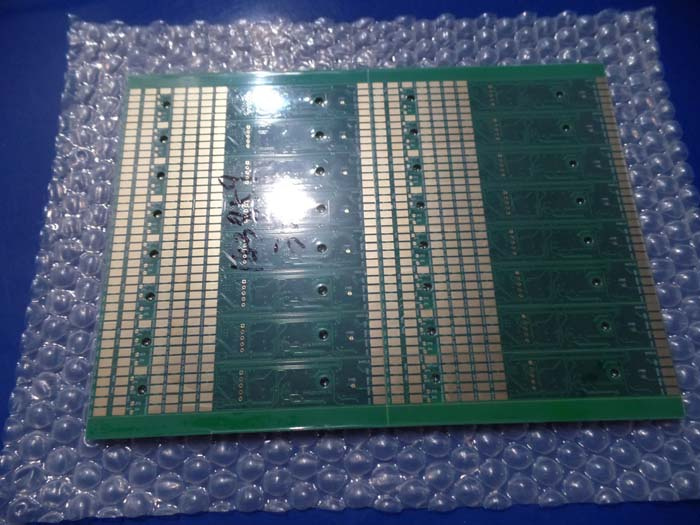

High Tg170 Immersoin Gold Panel PCB ITEQ FR-4 with V-groove 1.60-1.62mm Thick
in Sound System

Commodity Introduction
This is a type of FR-4 PCB for the application of Sound System. It's a 6 Layer board at 1.6mm
thick.The base laminate is from ITEQ, Solder mask and silkscreen from KUANG SHUN. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	1.6+/-10%mm	1.60-1.62mm
	Outer copper foil	>=35 um	44.69um
	Inner copper foil	35 um	35 um
	Warp-twist	<= 0.75%	0.52%
Legend	Type	KUANG SHUN	KUANG SHUN
	Color	White	White
	Location	CS	CS
Marking	Co.logo	As requirement	OK
	UL.logo	As requirement	OK
	Date code	As requirement	OK
	Marking form	As requirement	OK
	Location	CS	CS
Min line width (mil)		6	6.2
Min line spacing (mil)		5.5	5.3
Min ring width (mil)		NA	NA
Solder Mask	Type	KUANG SHUN	KUANG SHUN
	Color	Green	Green
	Thickness	>=10 um	14 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	ENIG		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	116.99	116.96	117.08	117.03	116.91
2	120.98	120.92	120.88	120.86	121.04

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

No	Required	PTH	Actual Dimension
1	0.900	Y	0.900	0.875	0.925	0.900
2	1.000	Y	1.000	0.975	1.025	1.000
3	3.100	N	3.100	3.075	3.125	3.100

Learn PCB and Buy PCB
PCB fabrication process

1). Etching
Purpose: Etching is to etch off the non-circuit parts of the copper layer by chemical reaction
method

2). Solder Mask
Purpose: Solder mask is transferring the solder mask film graphics to the board to protect the
track and prevent the track from the effect of tin welding during assembly.

3). Silkscreen
Purpose: The silkscreen character is a mark that is easy to recognize.

4). Edge connector plating (Gold finger)
Purpose: A nickel gold layer with a thickness is plated on the PCB edge of the plug to make it
more resistant to wear.

HASL (a process of coordinate)
HASL is a layer of tin generated on the non-solder mask area to protect pad copper surface from
oxidation to ensure good welding performance.

5). Contour
Purpose: By stamping or milling machine to cut the PCB into customers' required shape.

6). Electrical test
Purpose: Through the electronic 100% test to find the open circuit, short circuit and other functional
defects which are not easy to find by visual inspection.

7). Final Inspection
Purpose: Through 100% visual inspection to find out the defects in appearance and repair minor
defects to avoid problems and defects in the shipment.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
