Immersion Gold Multilayer PCB Board with 1.0mm Thick
| Price: |
US $ 2.01/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-202-V2.02 |
| Final Foil External: |
1oz |
| Final Height Of PCB: |
1.0mm ±0.1 |
| Surface Finish: |
Immersion Gold (80.4%) 2 Micoinch |
| Solder Mask Color: |
Green, Psr-2000 Gt600d, Taiyo Supplied. |
| Colour Of Component Legend: |
White, Ijr-4000 MW300, Taiyo Supplied. |
| Minimum Trace And Space: |
5mil/6mil |
| Minimum / Maximum Holes: |
0.3/5.5mm |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
O4003c Core and RO4450b Prepreg Combined with Fr-4 |
| Material: |
Hydrocarbon/Woven Glass and Fiberglass Epoxy |
| Insulation Materials: |
Glass Reinforced Hydrocarbon and Epoxy Resin |
Product Description

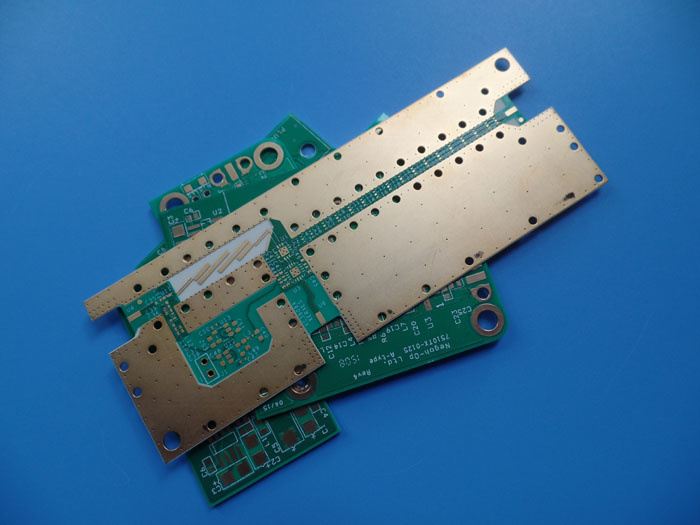

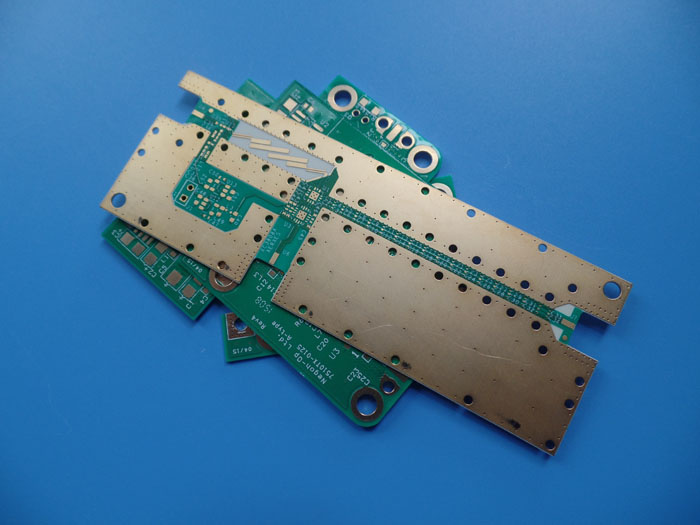

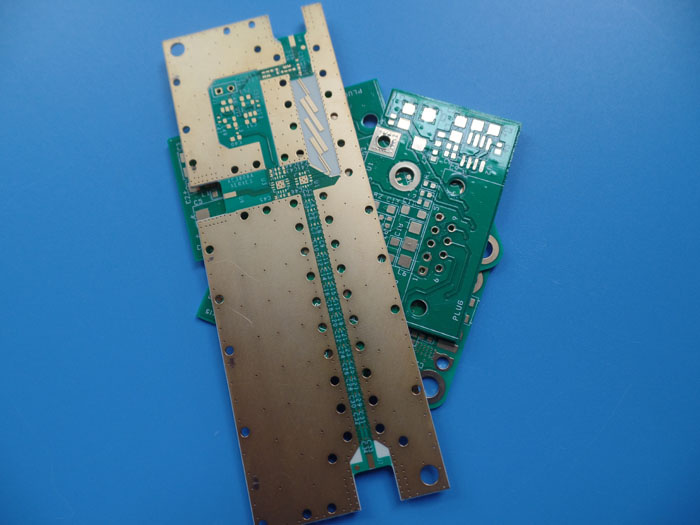

4 Layer PCB Manufacturing Hybrid PCB RO4003C Core And RO4450B Prepreg Combined With FR-4
Applied In RF Amplifer
Commodity Introduction This is a type of RO4003C Core And RO4450B with FR-4 PCB for the application of RF Amplifer. It's a 4 layer board at 1.0mm thick. The base laminate is from ROGERS CORP and ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 93.5 x 68.92mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| RO4003C 0.305mm (12mil) |
| copper ------- 35um(1oz) MidLayer 1 |
| RO4450B 0.101mm |
| copper ------- 35um(1oz) MidLayer 2 |
| FR-4 0.25mm |
| copper ------- 17um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5mil/6mil |
| Minimum / Maximum Holes: | 0.3/5.5mm |
| Number of Different Holes: | 7 |
| Number of Drill Holes: | 491 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 2 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4003C 0.305mm (12mil) and FR-4 0.25mm combined |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.0mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (80.4%) 2 micoinch over 100 microinch nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000 GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP. |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH), via open |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | RF Amplifier
Wifi Module
Antena Wireless
Antena Wifi Usb
RF Transmitter
Frequency Converter
RF Module |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |

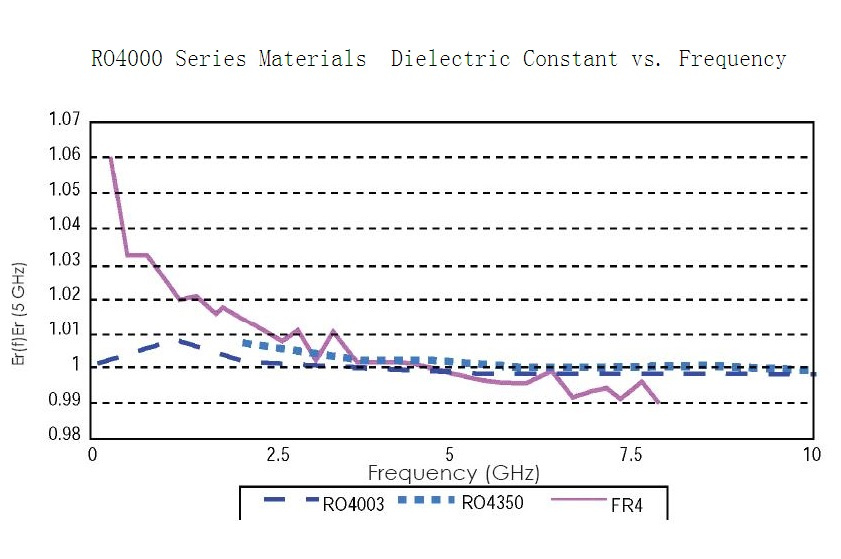

Learn PCB and Buy PCBFrequently used Unit Conversion in PCB industry 1 inch= 25.4mm1 inch= 1000mil1 foot = 12 inch=0.3048 meter 1mm = 39.37mil1mm = 1000µm1µm = 39.37 micro inch 1oz = 35µm = 1.4mil = 305g/m² 1inch² = 0.0645dm² = 6.4516cm² = 645.16mm²1ft² = 144 inch² = 0.09290304m² = 9.29dm²1m² = 1549.9969 inch²RO4000 Series Materials Dielectric Constant
