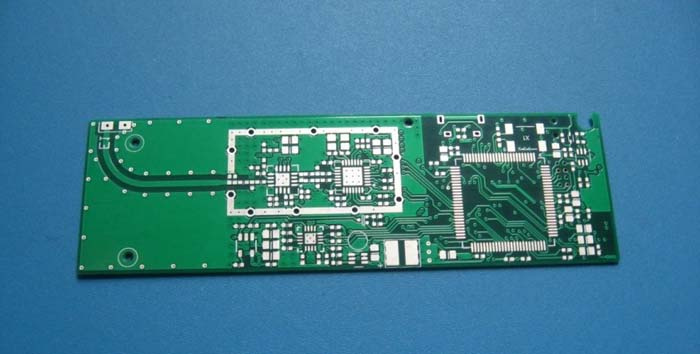

Immersion Silver 4 Layer PCB with 05mm Board Thick
| Price: |
US $ 0.51/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1044R1.4 |
| Surface Finish: |
Immersion Silver |
| Board Thick: |
0.5mm |
| Copper Thick: |
1 Oz |
| Inner Copper Thick: |
0.5 Oz |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Minimum Trace and Space: |
6.99 Mil/8.47 Mil |
| Minimum / Maximum Holes: |
0.399mm/3.556mm |
| Via: |
Via Tented |
| Test: |
Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
4 Layer PCB Board MultiLayer PCB Manufactruing FR-4 Immersion Silver PCB Applied In
Vehicle Tracking.
Commodity Introduction
This is a type of FR-4 PCB for the application of Vehicle Tracking. It's a 4 layer board at 0.5mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Nanya and Taiyo. It's

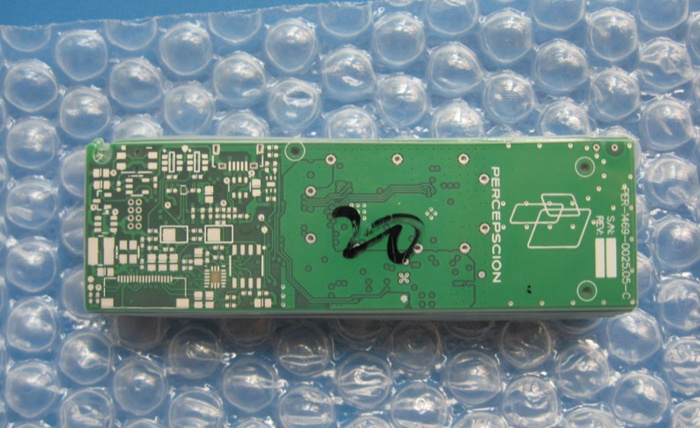

fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are pa
-cked separately.
Parameters & Data Sheet| PCB SIZE | 111 x 45mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| PP 2116 x 1 |
| copper ------- 18um(0.5oz) |
| FR-4 0.1mm |
| copper ------- 18um(0.5oz) |
| PP 2116 x 1 |
| copper ------- 18um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6.99mil/8.47mil |
| Minimum / Maximum Holes: | 0.399mm/3.556mm |
| Number of Different Holes: | 7 |
| Number of Drill Holes: | 1521 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140 TG>135 |
| Final foil external: | 1oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 0.5mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Silver, Ag>0.15µm |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Vehicle tracking, Navigation System
Switching Power Supply
Digital Receiver
UHF Radio
Power Supply |

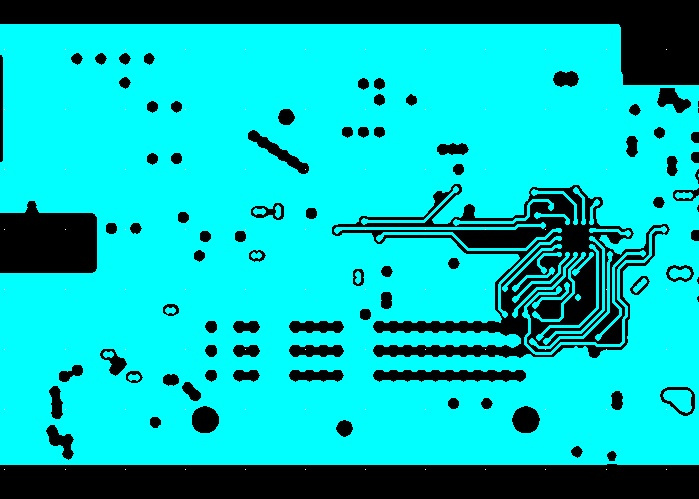

| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
PCB fabrication Process
1). Contact PCB fabricator
Contact your satisfied vendor such as Bicheng. You're registered and will be quoted for you. Place
your order and follow up the production schedule.
2). Material cutting
Purpose: According to the requirement from engineering data, cut the large plate which is in
compliance with the requirement into small pieces of production board piece to meet customer
requirements of the small sheet.
3). Drill
Purpose: According to the requirement from engineering data, drill all the holes.
4). Copper deposition
Purpose: Copper deposition is a thin copper deposit on the wall of the insulating hole by chemical
method
5). Pattern transfer
Purpose: Pattern transfer is the transfer of image production on the film to the board
6). Pattern plating
Purpose: Pattern electroplating is a layer of copper or gold over nickel or tin that requires a thickn
-ess plated on the exposed copper of the pattern graphic or on the hole wall.
7). Film stripping
Purpose: The NaOH solution is used to strip the anti-plating film to expose the non-pattern circuit
layer.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

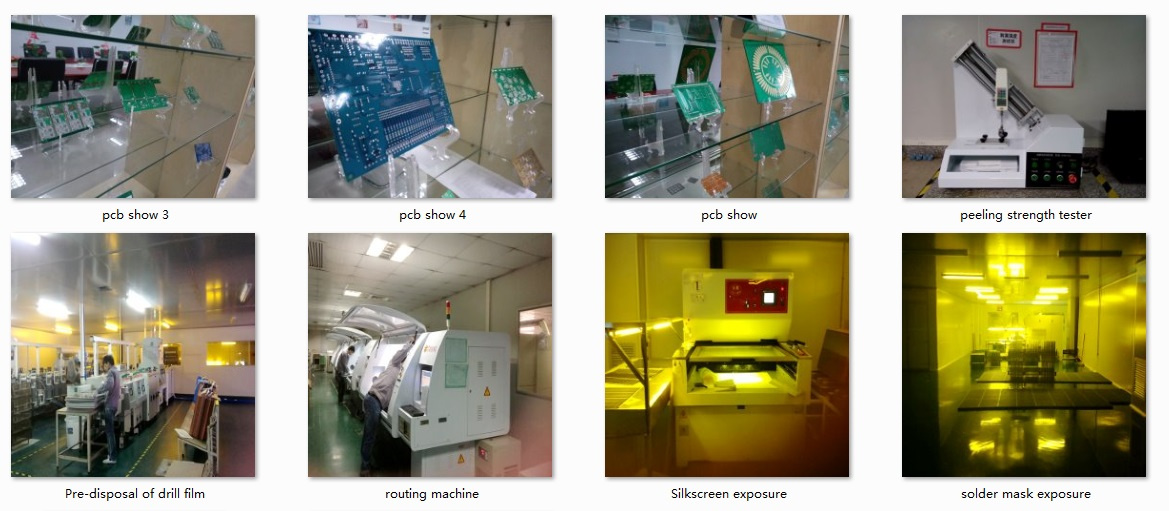

Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
