Immersion Silver PCB Built 0.8mm Fr4 with Double Sided Copper
| Price: |
US $ 0.68/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-887-V8.87 |
| Board Thick: |
0.8mm |
| Surface Finish: |
Immersion Silver, ≥0.15um |
| Out Layer Copper: |
1 Oz |
| Soldermask Color: |
Blue |
| Silkscreen Color: |
White |
| Minimum Trace And Space: |
No Required |
| Minimum / Maximum Holes: |
0.5 mm / 5.0 mm |
| Via: |
Minimum Size 0.5mm |
| Board Plating: |
0.0029" |
| Test: |
100% Electronic Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

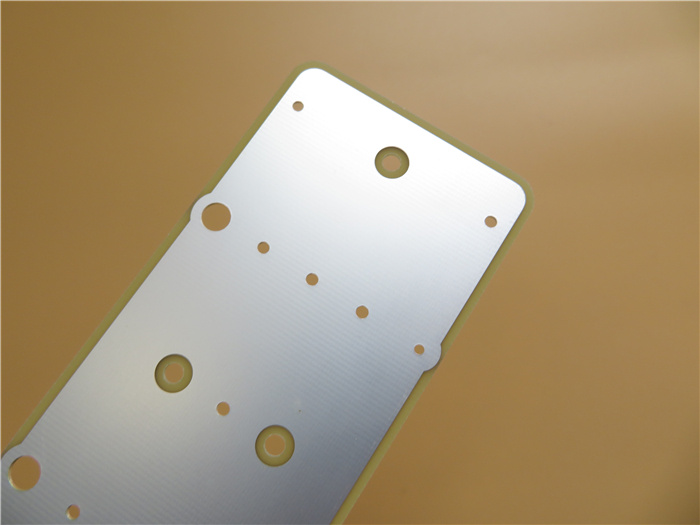

1.1 General description This is a type of double sided PCB with immersion silver built on FR-4 substrate with Tg
150°C for the application of Satellite Dish. It's 0.8 mm thick without silkscreen and no solder
mask. The base material is from ITEQ supplying single PCB. They're fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 20 panels are packed for shipment. 1.2 Features and benifits a. Mid Tg FR4 with Outstanding thermal resistance and suitable for lead-free process;
b. Immersion silver, the Environmental-friendly surface treatment, mature technology;
c. Powerful PCB capabilities support your reaearch and development, sales and marketing;
d. 8000 types of PCB per month;
e. More than 15 years of experience;
f. Coupon policy for new customer;
g. Focus on low to medium volume production1.3 Application
Wireless Routers, Embedded Systems, Satellite Broadband, USB WiFi Antenna, Remote
Server, Media Access Control, Tracking Devices For Vehicles, PLC Controls, Multi Chip Modules,
Central fire alarm systems
1.4 Parameter and data shee| PCB SIZE | 201 x 56mm=1PCS |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | NO |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| FR-4 IT158 0.8mm |
| copper ------- 18um(0.5oz)+plate BOT layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | N/A |
| Minimum / Maximum Holes: | 0.5 mm / 5.0 mm |
| Number of Different Holes: | 3 |
| Number of Drill Holes: | 32 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 Tg150ºC, er<5.4.IT-158, ITEQ Supplied |
| Final foil external: | 1 oz |
| Final foil internal: | 0 oz |
| Final height of PCB: | 0.8 mm ±0.08 |
| PLATING AND COATING | |
| Surface Finish | Immersion silver, ≥0.15um |
| Solder Mask Apply To: | NO |
| Solder Mask Color: | NO |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | NO |
| Colour of Component Legend | NO |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 0.5mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
