Impedance Control Multilayer PCB 10 Layers with Immersion Gold
| Price: |
US $ 0.82/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-189-V1.89 |
| Final Foil External: |
1.5 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Impedance Control: |
Differential Pairs, 90 Ohm.Single Trace,50 Ohm |
| Via: |
Not Be Visible |
| Minimum Trace and Space: |
4 Mil/4 Mil |
| Minimum / Maximum Holes: |
0.25/6.5mm |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

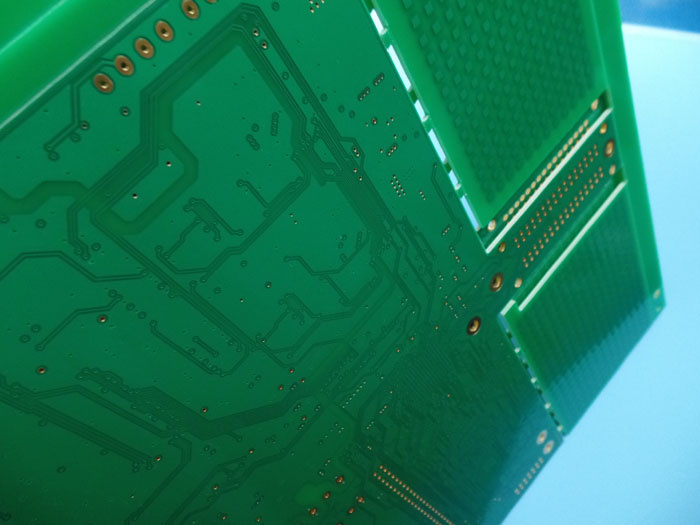

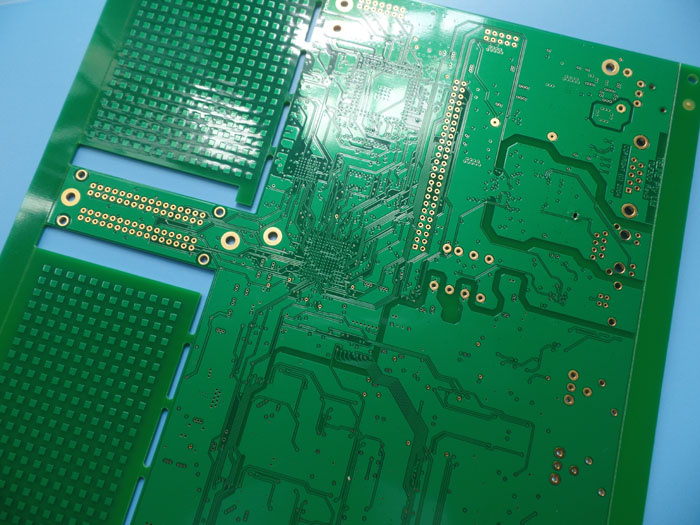

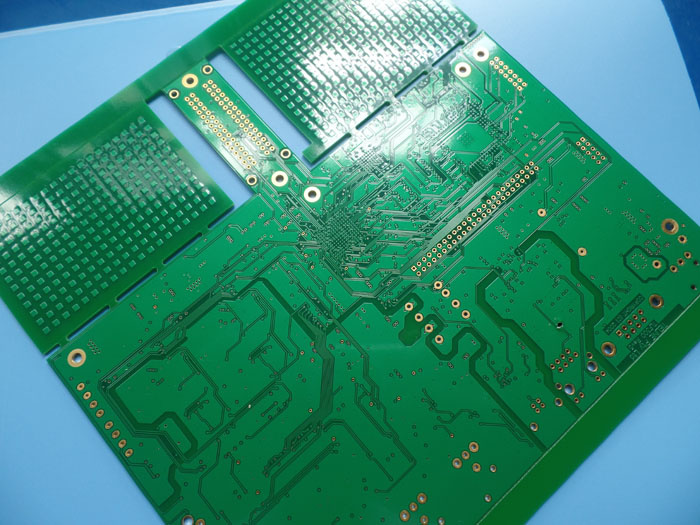

Via In Pad Printed Circuit Boards 10 Layer Tg170 FR-4 With Green Mask Immersion Gold
Applied In Satellite Radio
Commodity IntroductionThis is a type of FR-4 PCB for the application of Satellite Radio. It's a 10 layer board at 1.6mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameters & Data Sheet| PCB SIZE | 221 x 211mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 10 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP Signal |
| 4mil prepreg |
| copper ------- 18um(0.5oz) GND Plane |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) SIG1 |
| 5mil prepreg |
| copper ------- 18um(0.5oz) SIG2 |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) PWR Plane |
| 13mil prepreg |
| copper ------- 18um(0.5oz) GND Plane |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) SIG3 |
| 5mil prepreg |
| copper ------- 35um(1oz) SIG4 |
| 5mil FR-4 |
| copper ------- 35um(1oz) GND Plane |
| 4mil prepreg |
| copper ------- 35um(1oz)+plate BOT Signal |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/4mil |
| Minimum / Maximum Holes: | 0.25/6.5mm |
| Number of Different Holes: | 27 |
| Number of Drill Holes: | 4182 |
| Number of Milled Slots: | 3 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | Differential pairs impedance control,
Layer 4 and layer 7, 4/4mil,
5/21mil 90ohm+/-10%.
Single trace impedance control:
Layer 1, L3, L10, 8mil, 10mil track
50ohm +/-10% |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4 |
| Final foil external: | 1.5oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (19.1%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH), Via in Pad and via tented and
not be visible. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Power Inverter
Gps Systems
Security Systems
Automation
Satellite Radio
Inverter Generator |
TYPE OF ARTWORK TO
BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |

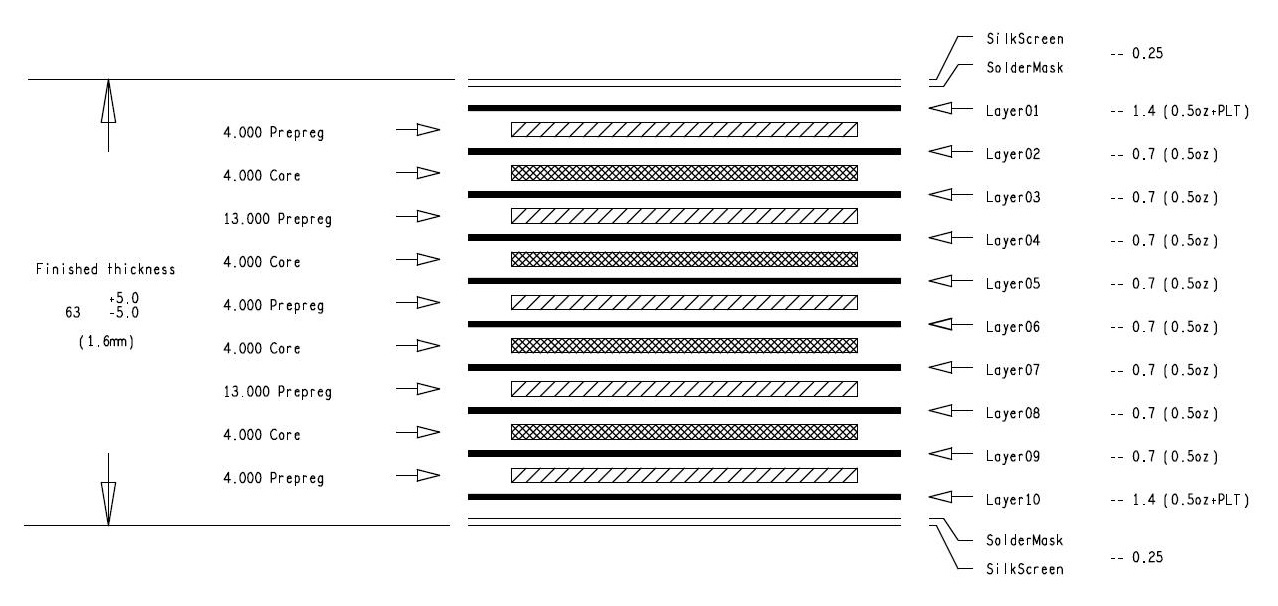

The Standard 10layer PCB stackup with 1.6mm thickness from Bicheng Company
Frequently Asked Questions
1. Do you sell impedance controlled PCB?
Yes. Impedance controlled PCB's are used more and more popular in our common life. We can
offerdifferential impedance and single end impedance PCB.
2. Do you sell high temperature PCB?

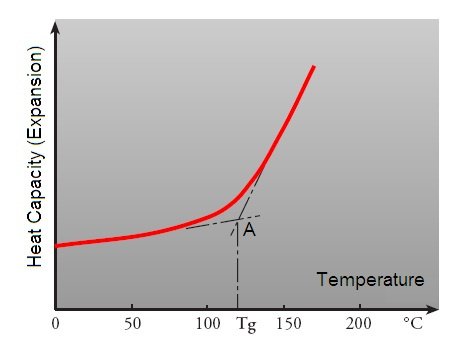

Yes. The material stability of high Tg (glass transition temperature) is high so that a high Tg PCB
can be desirable. Multilayer and high layer PCB uses this material much.
Acceptable document format
Gerber file RS-274-X format or RS-274-D with aperture list and drill file.
Protel .PCB files
PAD2000
ORCAD
POWERPCB
Genisis2000
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
