Impulse Relay

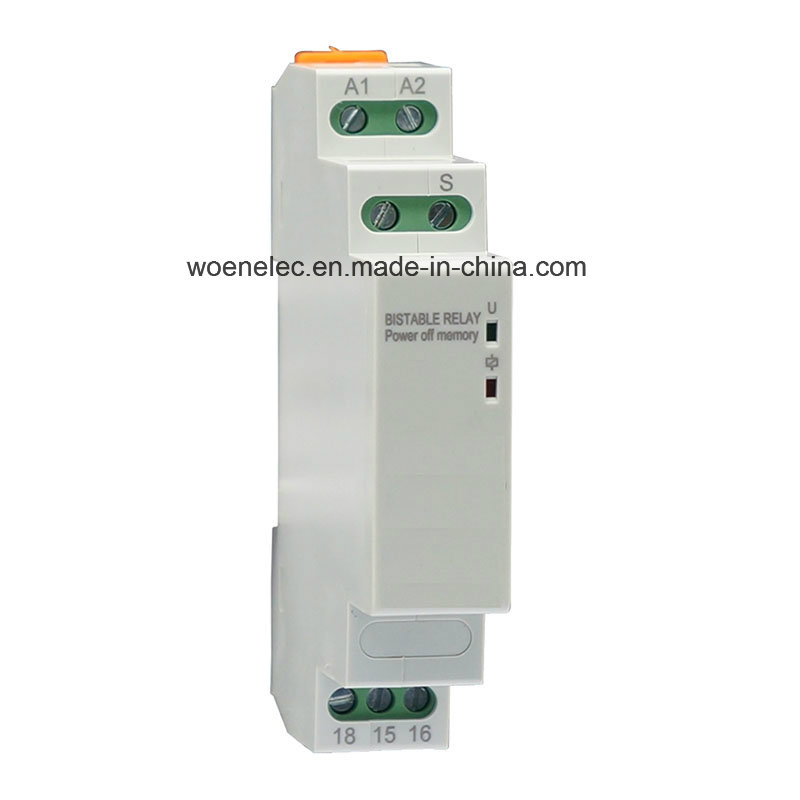

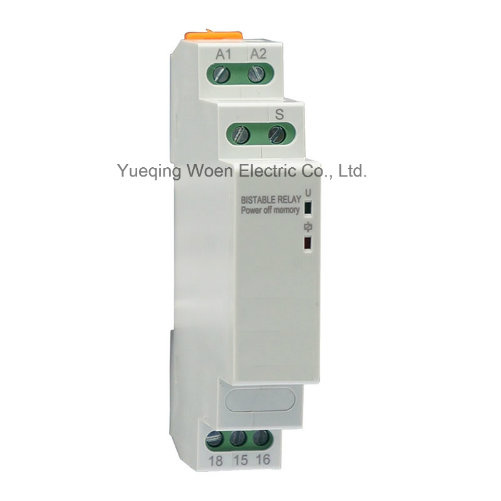

Name: Impulse Relay
Brand: all-electronics-online.com
SKU: 714330202
Availability: InStock
Rating: 4.7 (132 reviews)

Price:	US $ 11.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BP-31

Product Description

General
The bistable relay is used to control lighting or other devices by means of monomodular pushbuttons connected in a parallel way. Pushing any button causes switching on or switching off the devices connected to output terminals. Using this system gives the possibility of creating intelligent lighting control systems.

Feature
1. Microprocessor controller
2. Bistable lighting control
3. Relay state memory
4. Operating with illuminated pushbuttons
5. Device triggering by L or N
6. LED indication for power supply and relay status
7. 1 module DIN-Rail mounting

Technical dataSupply terminals

Supply terminals	L,N
Pulse terminal	S
Supply voltage	AC 230V
Rated frequency	50/60Hz
Controlling current	≤1mA
Power consumption	≤0.8w
Output contacts	1C/O
Current rating	10A/AC1
Insulation voltage	250V
Mechanical life	10000000
Electrical life	1000000
Protection degree	IP20
Pollution degree	3
Altitude	≤2000m
Mounting	TH-35 Rail

Founded by engineers who worked in the field of electronic, mechanical and industrial design for over 10 several years, Reletek is a professional manufacturer of electronic modular devices, which bring new possibilities for home and office controlling, monitoring and security, as well as for industrial process control.

Development and modern technology are the pillars of our work, which is highly appreciated by our customers, because all products and services can be customized according to individual requirements - you get not just a product, but a long-term solution.

Thanks to high quality production and service on customers, Reletek had partners from Spain, Australia, Russia, Ukraine, Algeria and Egypt etc.
