In-Line Fixed Optical Attenuator

Name: In-Line Fixed Optical Attenuator
Brand: all-electronics-online.com
SKU: 831259095
Availability: InStock
Rating: 4.4 (38 reviews)

Price:	US $ 0.4-5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	In-line Fixed Optical Attenuator
Attenuation Range:	1dB~10dB(1dB Step)15,20,25,30dB
Transmission Medium:	Single-Mode
Number Of Cores:	Single-Core
Structure:	St FC Sc LC
Ferrule Endface:	PC or APC
Application:	Fiber Optic Attenuator
Connector Type:	St FC Sc LC
Brand:	Fiberlink

Product Description

Descriptions

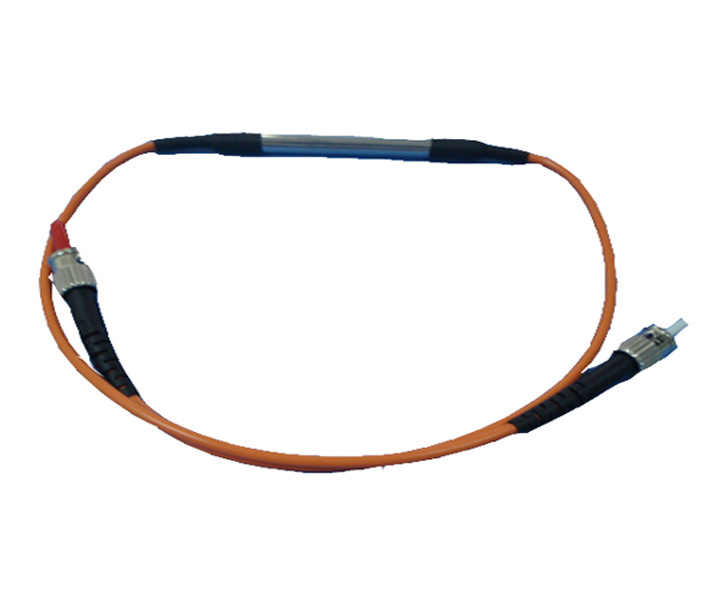

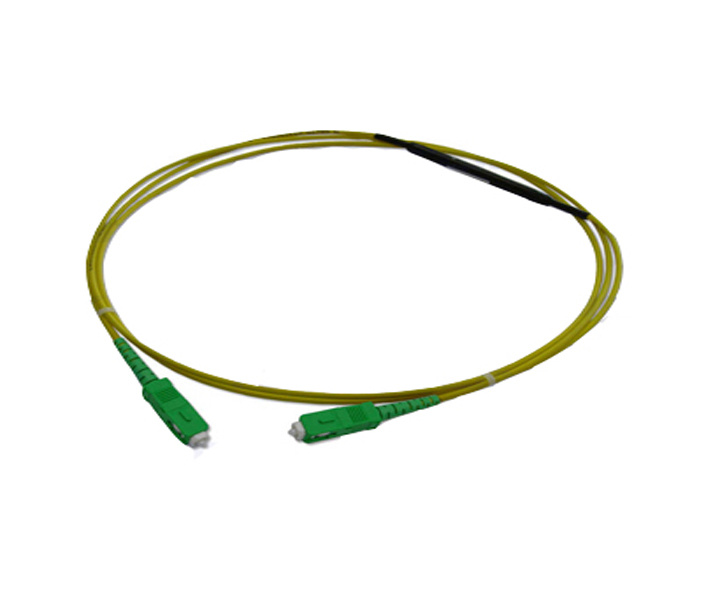

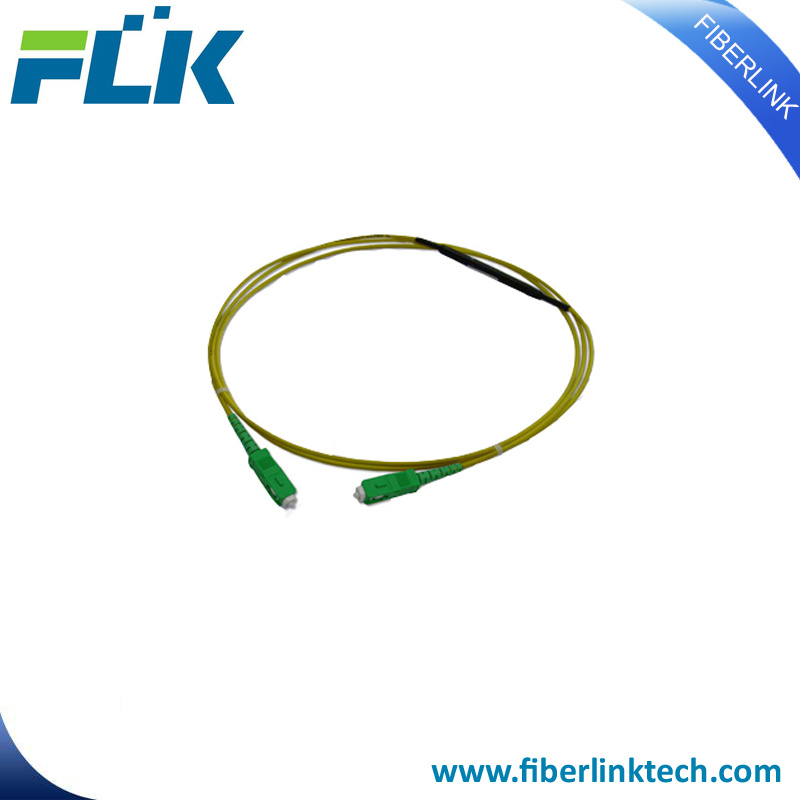

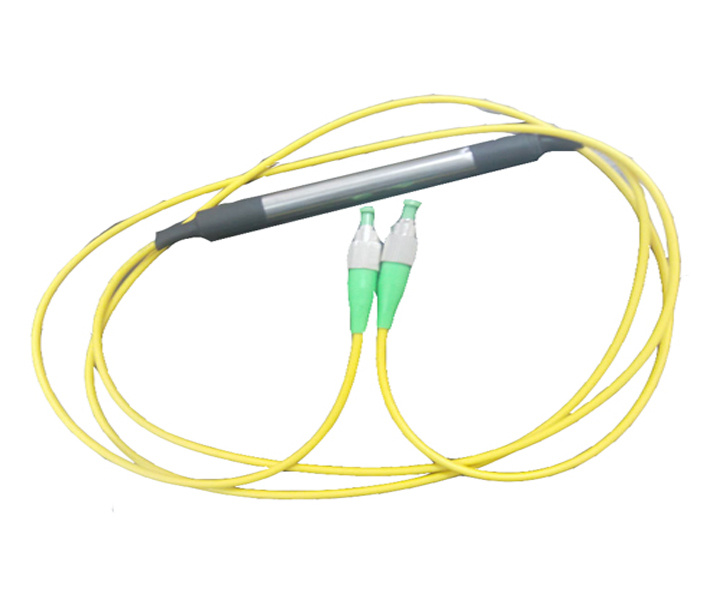

Fiberlink's In-line fixed optical attenuators are integrated into a standard connectorized fiber optic jumper cable. Cable is terminated with ST, FC, SC, LC, and SC/APC, FC/APC, or LC/APC optical connector and available in the lengths up to 50 meters

Features
Single mode and Multi mode versions
Low insertion loss
Attenuation from 1dB to 30dB
PC, UPC, and APC polish types optional

Applications
Telecommunication networks
Optical communications system
CATV networks

Specifications

Items	Parameters
Operating wavelength	1250~1620nm
Attenuation Value	1dB~10dB(1dB step),15,20,25,30dB
Connector style	FC/PC,SC/PC,FC/APC ,SC/APC ,LC,Customer
Attenuation accuracy	1~9dB(±0.5dB); 10~20dB(±1.0dB); 21~30dB(±1.5dB)
Reflection loss	≥50dB(UPC), ≥65dB(APC)
PDL	<0.2dB
Operating temperature	-25ºC~+70ºC
Storage temperature	-40ºC~+85ºC
Thermal stability	0.3dB/ºC
Power	1W
