SHENZHEN FIBERLINK COMMUNICATION LIMITED >> In-Line VOA Variable Optical Attenuators

In-Line VOA Variable Optical Attenuators

In-Line VOA Variable Optical Attenuators
Price: US $ 0.4-5/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: Optical Attenuators
Attenuation Range: 1dB~10dB(1dB Step)15,20,25,30dB
Transmission Medium: Single-Mode
Number Of Cores: Single-Core
Structure: St FC Sc LC
Ferrule Endface: PC or APC
Application: Fiber Optic Attenuator
Connector Type: St FC Sc LC
Brand: Fiberlink

Product Description





Descriptions

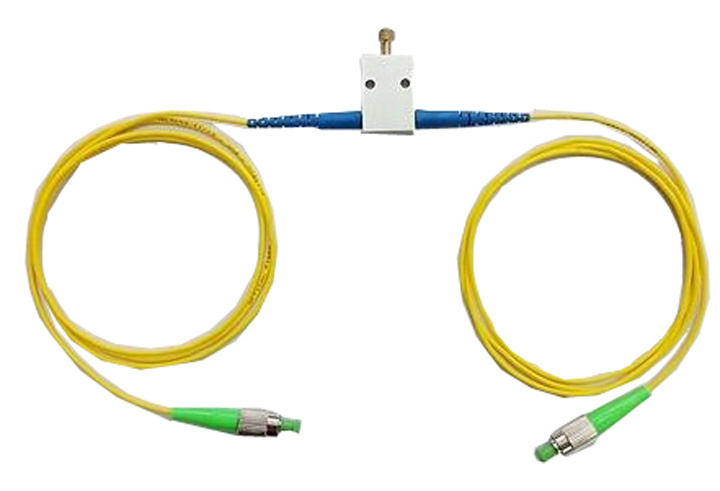

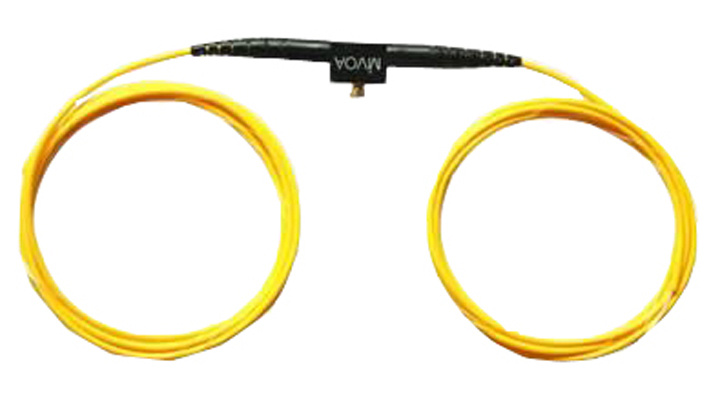

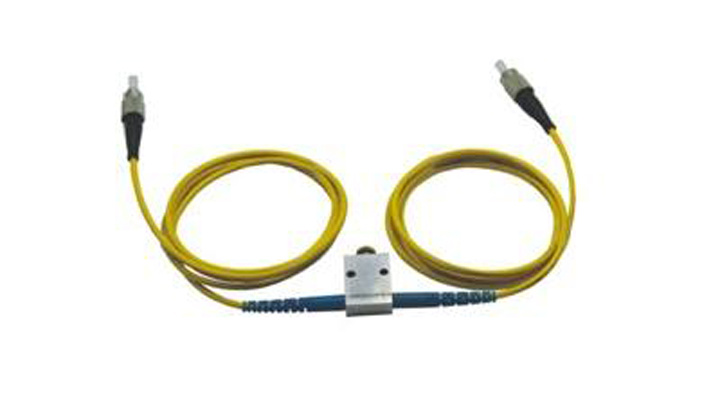

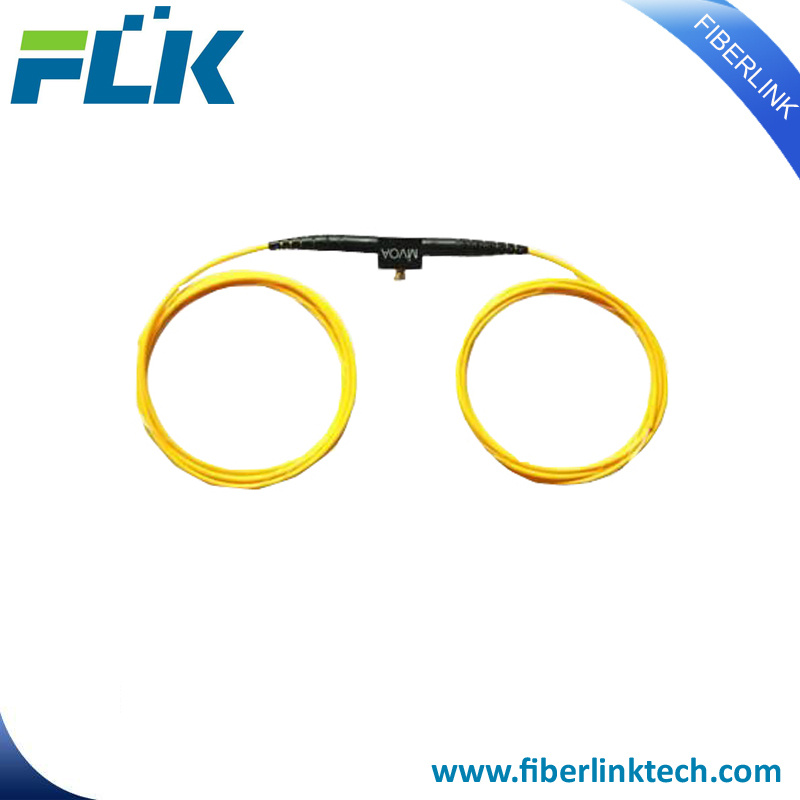

Fiberlink's In-line Variable optical attenuators are integrated into a standard connectorized fiber optic jumper cable. Cable is terminated with ST, FC, SC, LC, and SC/APC, FC/APC, or LC/APC optical connector and available in the lengths up to 50 meters

Features
Single mode and Multi mode versions
Low insertion loss
Attenuation from 1dB to 30dB
PC, UPC, and APC polish types optional


Applications
Telecommunication networks
Optical communications system
CATV networks


Specifications
ItemsParameters
Operating wavelength1250 ~ 1650nm
Bandwidth±40nm
Attenuation Value0.6dB~60dB
Original Loss0.6dB
Precision0.2dB
Attenuation accuracy±0.5dB
Connector styleFC/PC,SC/PC,FC/APC ,SC/APC ,LC,Customer
Reflection loss≥55dB (UPC) | ≥60dB (APC)
PDL<0.2dB
Operating temperature-40ºC~+70ºC
Storage temperature-40ºC~+85ºC
Thermal stability0.3dB/ºC
Dimensions26x8x18mm
Our company supplies high-performance fiber optic communication system products with high quality and favorable price. Our main products are Fiber optic cable, Fiber patch cord, Fiber adapter, Fiber attenuator, FBT Coupler, PLC splitter, Fiber patch panel, Fiber termination box, Fiber distribution box, Fiber optic splice closure, MPO system and FTTH solution products, etc. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Interconnect Products Division: Develops and manufactures fiber optic components for a diverse range of applications. The division's products include Fiber optic connectors, patch cords andadapters, attenuators, couplers, PLC splitters, circulators, and isolators.

Solution Products Division: Known for providing Fiber Optic Communication Solution in the world, the Solution Products division focused on fiber accessories and systems, such as Fiber patch panel, Fiber termination box, Fiber distribution enclosure, Fiber optic splice closure, MPO system andFTTH solution products, etc.

OEM Products Division: OEM Products division provides OEM services to our clients by not only complete customers' requirements but also give active suggestions to improve the products' performance and quality. This division's main mission is to help customers stay competitive by constant innovation service.
