| Prod Model: |
GJXH Fiber Optic FTTH Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Gjxh Fiber Optic FTTH Cable |
| Fiber Count: |
1-4 Core Fiber Optic FTTH Cable |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka, Fujikura...as Requirement |
| Color Of Loose Tube: |
Blue, Orange, Green, Brown |
| Strength Member: |
Steel or FRP |
| Jacket Color: |
Black, White |
| Installation Style: |
Indoor & Outdoor Self-Support Drop Cable |
| Cable Dimension: |
3.1*2.0mm |
| Cable Weight: |
8.2kg/Km |
| Application: |
Communication |
| Certification: |
Reach,Tlc,etc |
| Type: |
Single-Mode or Multimode Fiber |
| Connection Structure: |
Fiber Optic FTTH Cable |
| Allowed Lateral Pressure: |
Long Term:1100n; Short Term:2200n |
| Allowed Tensile Strength: |
Long Term:300n; Short Term:600n |
| Core: |
1-4 Core Fiber Optic FTTH Cable |
| Brand: |
Tw-Scie or OEM |
| Sheath Material: |
Lszh PE |
Product Description

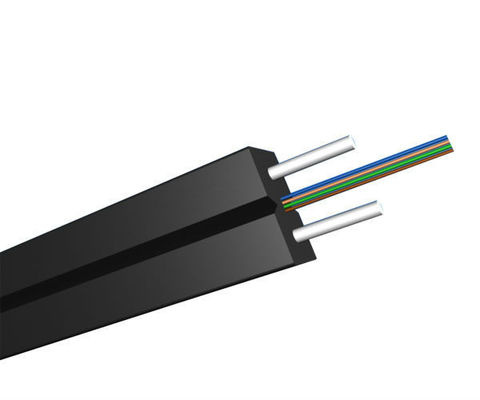

Indoor 1 Core Drop Fiber Optic Cable FTTH Cable
ITEMS | UNITS | Fiber SPECIFICATION |
| Fiber Attenuation | dB/km | ≤0.4 at 1310nm ≤0.3 at 1550nm |
| Chromatic Dispersion | ps/nm.km | ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm |
| Zero Dispersion Wavelength | nm | 1300 ~ 1324 |
| Zero Dispersion Slope | ps/nm2.km | ≤0.095 |
| Cut-off Wavelength (λcc, 22m of a cabled fiber) | nm | ≤1260 |
| Mode Field Diameter | um | 9.2±0.5 |
| Mode Field Concentricity | um | ≤0.8 |
| Cladding Diameter | um | 125±1.0 |
| Cladding Non-circularity | % | ≤1.0 |
| Coating cladding concentricity error | um | ≤12.5 |
| Coating Diameter | um | 245±10 |
| Bending loss (Bare fiber) Radius :7.5mm x 1 turn | dB | ≤0.5 at 1550nm |
| Proof Test | kpsi | ≥100 |
Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
Contact with me for this Indoor Drop Fiber Optic Cable FTTH Cable.
Details:
Products' details:
1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meets the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.
Characteristic:
1 Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

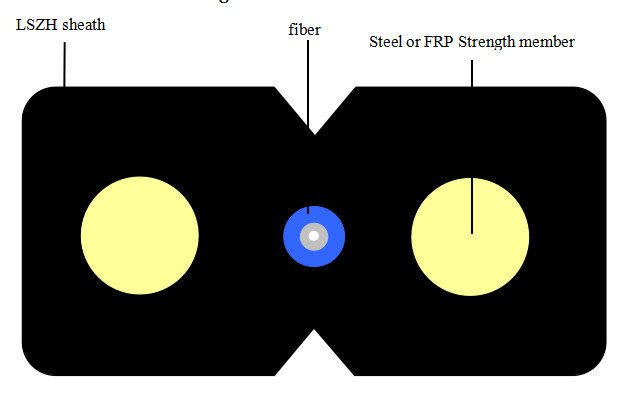

2 Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
3 Single steel wire as the additional strength member ensure good performance of tensile strength.
4 Simple structure, light weight and high practicability.
5 Novel flute design, easily strip and splice, simplify the installation and maintenance.
6 Low smoke, zero halogen and flame retardant sheath.
7 Storage / Operating Temperature: -20° C~+60° C. Workshop:
Applicable Fields:

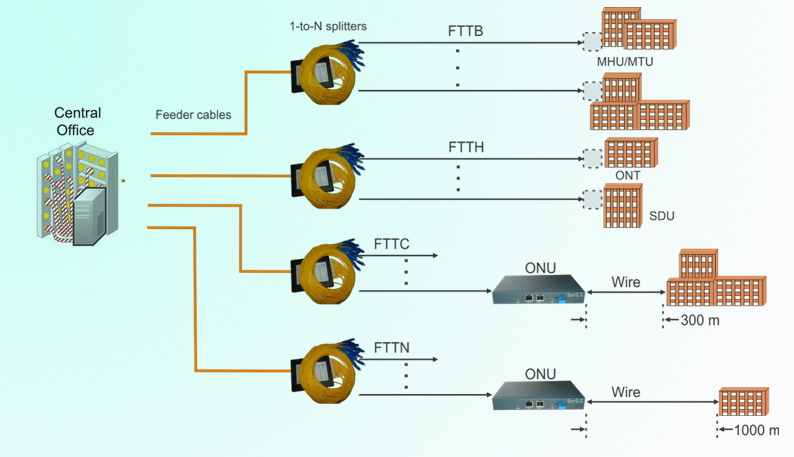

Indoor Drop Fiber Optic Cable FTTH Cable has been designed for access building cable with good performance and easy installation.
Optical Fiber Technical Date:
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
