Indoor 12 Core Breakout Fiber Cable of Tight Buffered and with Non - Metal Member

Name: Indoor 12 Core Breakout Fiber Cable of Tight Buffered and with Non - Metal Member
Brand: all-electronics-online.com
SKU: 809383825
Availability: InStock
Rating: 4.7 (145 reviews)

Price:	US $ 1.33/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Indoor Breakout Cable
Application:	Indoor Cable
Certification:	Reach
Type:	Single More or Multimode
Connection Structure:	Glass Fiber
Brand:	OEM or Tw-Scie
Sheath Material:	LSZH/PVC

Product Description

Indoor 2-12core tight-buffer 0.9mm fiber optical distribution cable

Application
1. Adopted to indoor network.
2. As pigtail of communication equipment.
3. Suitable for communication equipment.

4. Suitable for floor connection.

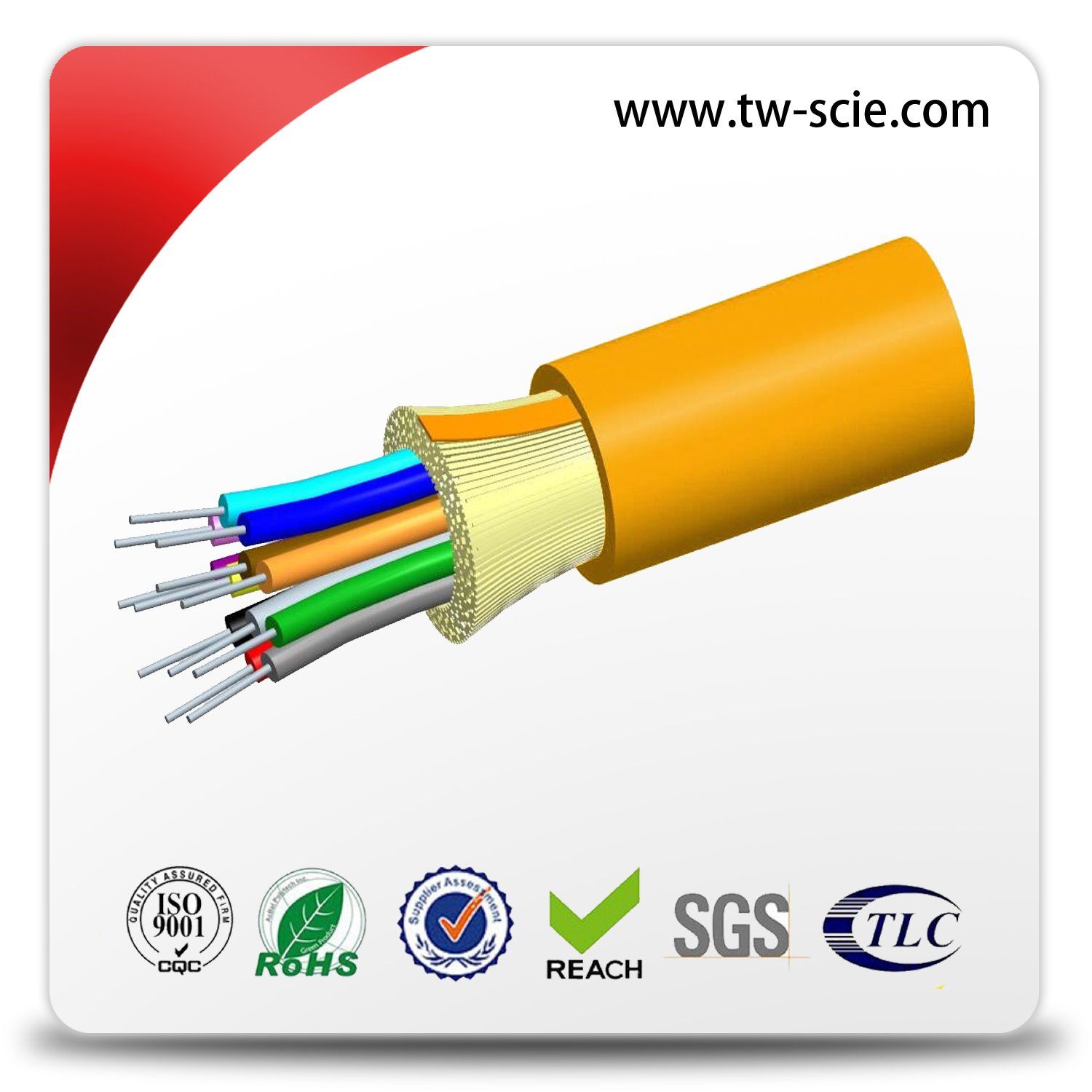

Characteristics
1. FRP member.

2. More tight buffered design.

3. Kevlar yarn.

4. Inner sheath.

5. Waterproof Tape.

6. Out sheath.

Cable construction details :

Items			Description
Number of fiber			4-24cores
Fiber	type		G652D/G657A/OM1/OM2/OM3/OM4
	diameter		250µm
Strength member	materia		Kevlar Yarn
Tight buffer	diameter		2.0mm
	/
Outer sheath	material		PVC/LSZH
	diameter		7~13mm
Cable size (Height * width)			750750560
Cable weight			23~168KG
Installation Temperature range(ºC)			-20+60
Operation and transport temperature(ºC)			-40+70
Min Bending Radius(mm)		Long term	10D
Min Bending Radius(mm)		Short term	20D
Min allowable Tensile Strength(N)		Long term	500
Min allowable Tensile Strength(N)		Short term	1500
Crush Load (N/100mm)		Long term	200
Crush Load (N/100mm)		short term	1000

Standard color of fiber and tube

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
Dispresion	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	>=400	>=160	Bandwith
Bandwith	1300nm	MHZ.KM	----	----	>=800	>=500
Zero dispersion wavelength		nm	1300-1324	>=1302, ≤1322	----	----	>= 1295, ≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	----	----	----
Fibre cutoff wavelength λc		nm	>= 1180, ≤1330	>=1180, ≤1330	----	----	----
Cable sutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscatter coefficient		dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity		dB/km	≤0.01	≤0.01
Core dimater		um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter		um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter		um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error		um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error		um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)		um	≤4	≤4	----	----	----

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
