Indoor 12 Core Fiber Optic Distribution Cable

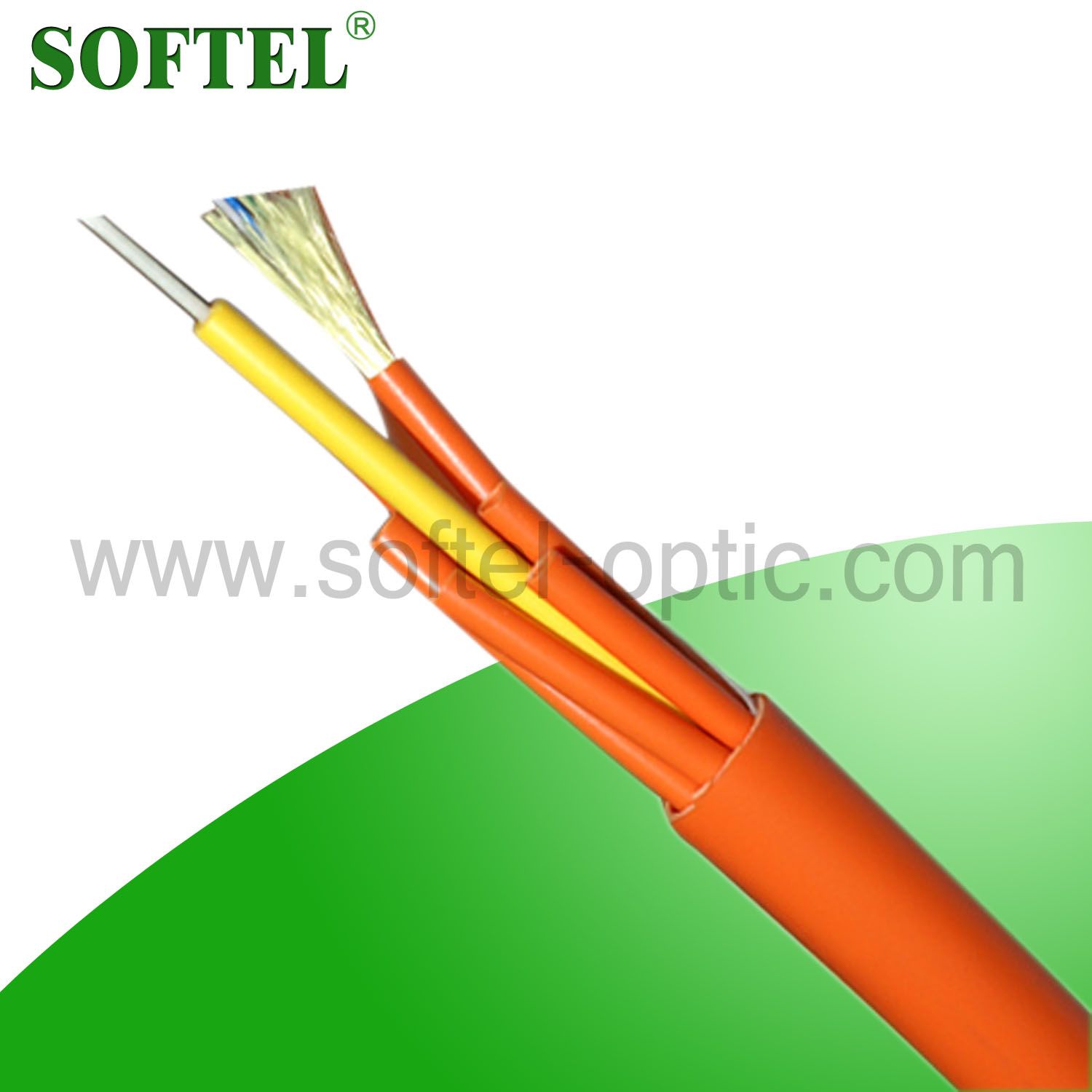

Name: Indoor 12 Core Fiber Optic Distribution Cable
Brand: all-electronics-online.com
SKU: 618461522
Availability: InStock
Rating: 4.3 (66 reviews)

Price:	US $ 0.08/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJPFJV/GJPFJH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Name:	Fiber Optic Distribution Cable
Model Number:	Gjpfjv
Model Type:	Indoor Optical Cable
Number Of Conductors:	2
Cable Application:	Aerial/Duct
Jacket Option:	LSZH/PVC or Plenum Optional
Fiber Type:	G652,G655,G657
Certificate:	UL/Ce/RoHS/ISO9001/SGS
Mode:	Singlemode and Multimode
Packing:	1km/Reel
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	CCC

Product Description

Indoor 12 Core Fiber Optic Distribution Cable

Application

1. Used in pigtails and patch cords
2. Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distrubution frames
3. Used in indoor cabling, especially used as distrubution cable

Features

1. Good mechanical and environmental characteristics
2. Flame retardant characteristics meet the requirements of revelant standards
3. The mechanical characteristics of jacked meet the requirements of relevant strandards
4. Soft, flexible, easy to lay and splice, and with big capacity data transmission
5. Meet various requirements of market and clients.
Product can be manufactured
FTTH butterfly cable
Simplex indoor fiber cable for component
Duplex indoor fiber cable for component
Simplex indoor fiber for housing wiring
Duplex indoor fiber cable
ADDS, OPGW power communication fiber optic cable
GJXDH, GJAFJVV, GJAFJBV, GYTA, GJXDH, etc
Fiber type: Single mode and multimode G652 G653 G654 G655 G657
UL/CE/RoHs/ISO9001/SGS have passed

Fiber Count	Cable dimension mm		Cable Weight kg/km		Tensile N		Crush N/100mm		Min.Bend Radius mm		Range of Temperature
Fiber Count	250μm Coating Layer	450μm Coating Layer	250μm Coating Layer	450μm Coating Layer	Long Term	Short Term	Long Term	Short Term	Dynamic	Static	Range of Temperature
1	2.0	2.0	3.5	3.6	40	80	100	500	50	30	-20°c~+60°c
2	2.0	2.0	3.7	3.8	40	80	100	500	50	30
4	2.0	2.4	3.9	5.2	40	80	100	500	50	30
6	2.4	3.5	5.2	10.2	60	100	100	500	60	30
8	2.8	4.0	7.4	12.4	60	100	100	500	60	30
12	3.0	4.5	8.2	14.4	60	100	100	500	60	30
Note:1.All the values in the table,which are for reference only,are subject to change without notice 2.The cable core use the coating fiber of 250μm or 450μm 3.The minimumbend radius(static) is 15mm,when G657 fiber is used
Fiber Sort	Multimode	G.651	Ala:50/125	Graded-index fiber
	Multimode	G.651	Alb:62.5/125	Graded-index fiber
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2:Zero dispersion shifted
		G.655		B1.2:Cut-off wavelength shifted
		G.657(A1,A2,B3)		B4:Main technical data for positive dispersion shifted single-mode fiber
