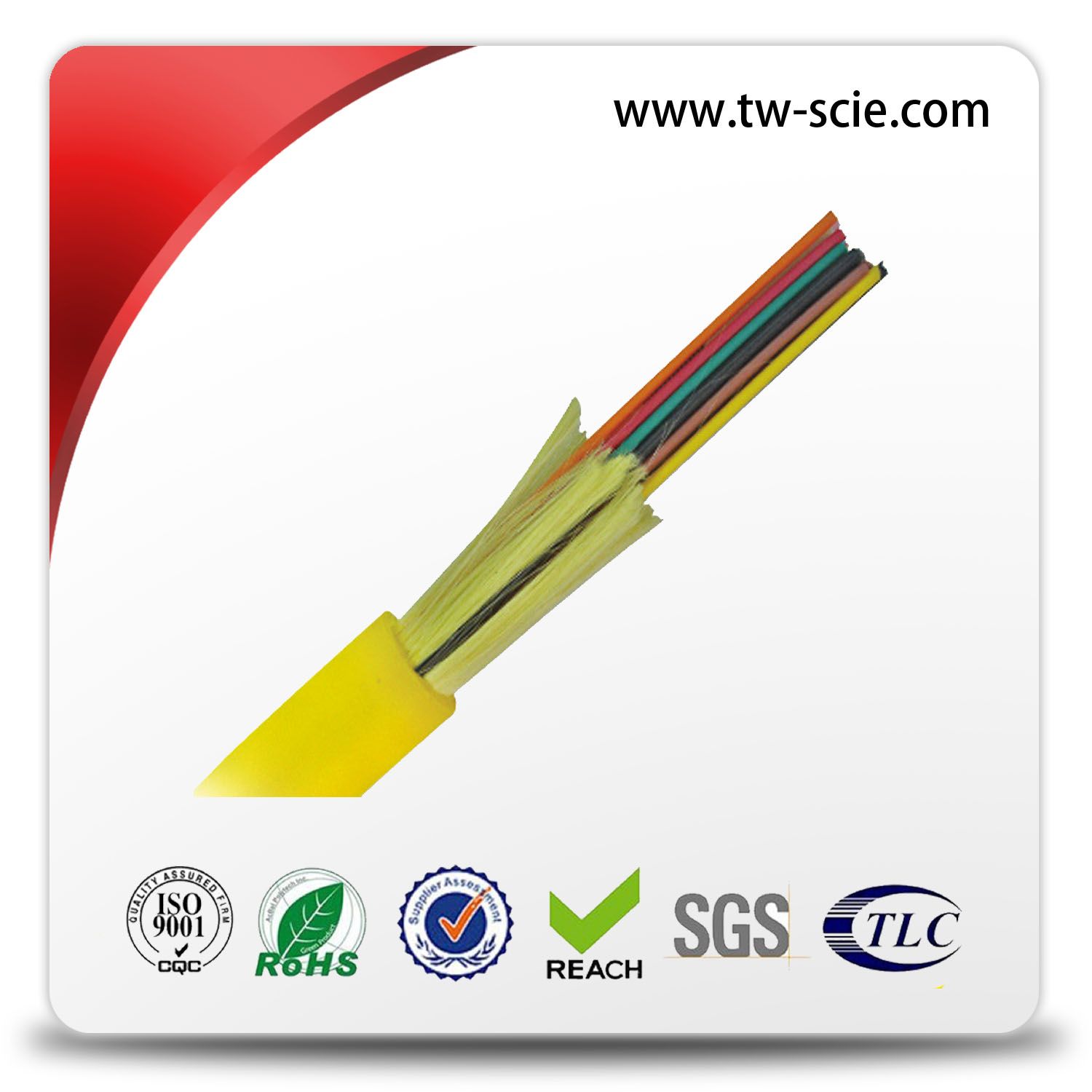

Indoor 2-12core Tight-Buffer 0.9mm Fiber Optical Distribution Cable

Name: Indoor 2-12core Tight-Buffer 0.9mm Fiber Optical Distribution Cable
Brand: all-electronics-online.com
SKU: 808258245
Availability: InStock
Rating: 4.6 (93 reviews)

Price:	US $ 1.33/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Indoor distribution cable
Application:	Indoor Cable
Certification:	Reach
Type:	Single More or Multimode
Connection Structure:	Glass Fiber
Brand:	OEM or Tw-Scie

Product Description

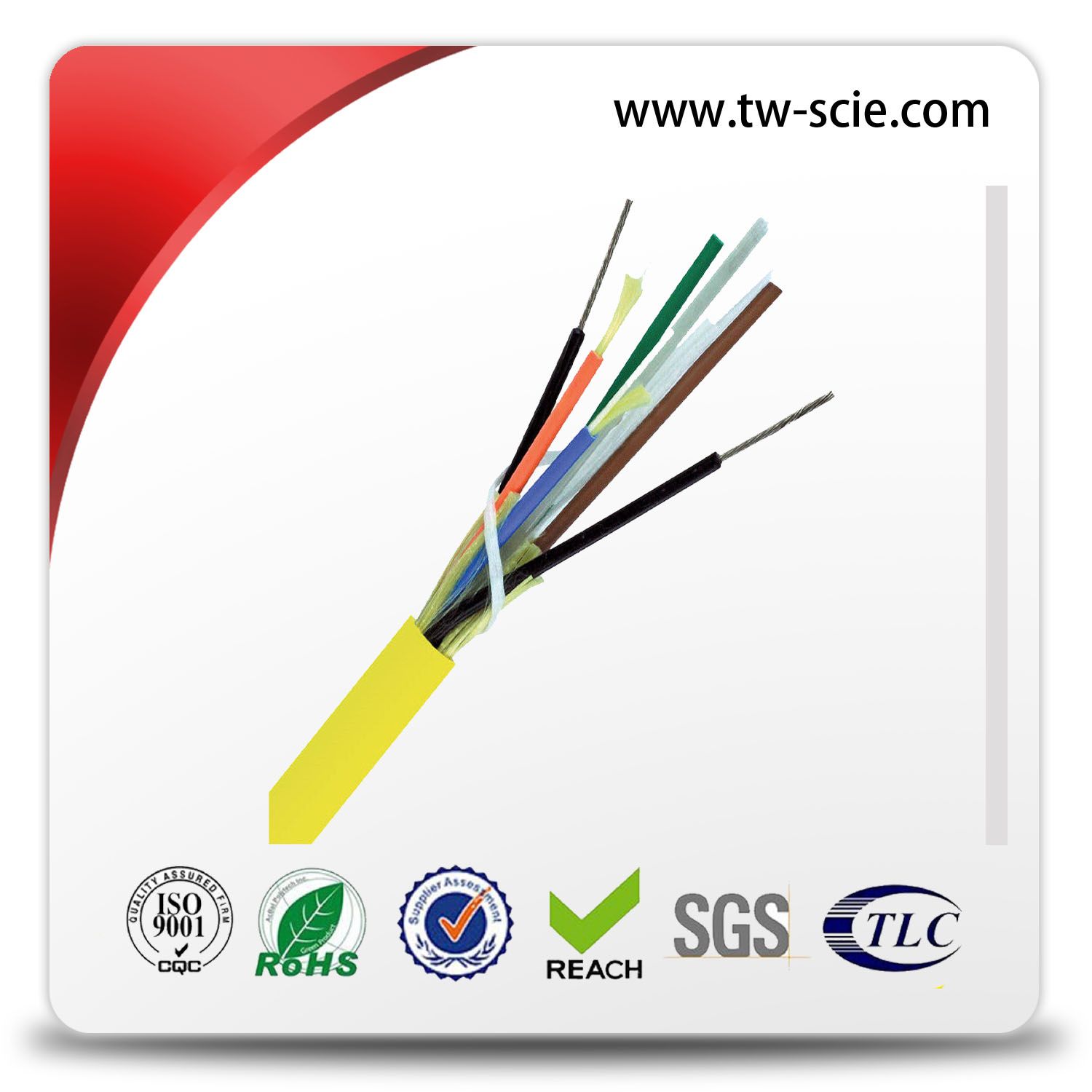

Indoor 2-12core tight-buffer 0.9mm fiber optical distribution cable

Quick Detail:

Type: 8core fiber cable with yellow jacket distribution
Mode: OS1, OS2, OM1, OM2, OM3, OM4
Optical Fiber: G652D, G657A, G657B
Application: Indoor fiber cable,0.9mm
Jacket: PVC, LSZH, OFNP, OFNR
Cable color: Yellow, Orange, Aqua, Violet, Blue, Green, White, Black, Red...

Features:

Aramid yarn for strength member
Good mechanical and temperature performance
Meet various requirements of market and clients
High strength loose tube that is hydrolysis resistant
Soft,flexible,easy to splice,and with big capacity date transmission

Application:

Suitable for communication equipment servrd
Adopted to indoor distribution.
As pigtail of communication equipment
Can be installed conveniently and perated simply

Technical Parameters:

Description

02~12 fiber,0.9mm, Φ900μm Tight buffer fiber, Aramid yarn, PVC Jacket.distribution cable.

Standards

Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR.

Cable Code

	02	04	06	08	10	12
Cable Diameter (mm)	4.1±0.25	4.8±0.25	5.1±0.25	5.6±0.25	5.8±0.25	6.2±0.25
Cable Weight (kg/km)	11.0	18.4	22	24	27	31
TBF Diameter	900±50μm

Mechanical Characteristics

Tensile Strength	Long term	200N
Tensile Strength	Short term	660N
Crush Resistance	Long term	300N/100mm
Crush Resistance	Short term	1000N/100mm
Bending Radius	Dynamic	20×D (Cable Diameter)
Bending Radius	Static	10×D (Cable Diameter)

Optical Characteristics

		50/125μm	62.5/125μm	G.652	G.655
Attenuation(+20°C)	@850nm	≤3.5dB/km	≤3.5dB/km
	@1300nm	≤1.5dB/km	≤1.5dB/km
	@1310nm			≤0.45dB/km	≤0.50dB/km
	@1550nm			≤0.30dB/km	≤0.50dB/km
Bandwidth (Class A)	@850nm	≥500MHz·km	≥200MHz·km
Bandwidth (Class A)	@1300nm	≥1000MHz·km	≥600MHz·km
Numerical Aperture		0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc				≤1260nm	≤1480nm
Attenuation at temperature cycling (-20°C~+85°C)	@1300nm	≤0.50dB/km	≤0.50dB/km
Attenuation at temperature cycling (-20°C~+85°C)	@1550nm			≤0.20dB/km	≤0.20dB/km

Environmental Characteristics

Transport Temperature	-20°C~+60°C
Storage Temperature	-20°C~+60°C
Installation Temperature	-5°C~+50°C
Operating Temperature	-20°C~+60°C

Our advantages:

*1. High- integrity enterprise ( 90% regular customers).

*2. Good quality with EXW price (A professional manufacturer).

*3. Shortest delivery time (1000km FTTH just need 1 day).

*4. QC: ISO 9002, ROHS, UL, REACH.

*5. MOQ is 1 KM.

*6. Exclusive testing laboratory costed 3,000,000RMB

*7. Long-term relationship with 3M, TYCO, FCI, COMDUMEX.eTC

*8. Free samples provided.

*9. Customized.

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
