Indoor Gas Insulation Switch Disconnector
| Price: |
US $ 700-1800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
RLS |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
SF6 |
| Installation: |
Fixed |
| Poles Number: |
3 |
| Certification: |
ISO9001-2000 |
| Structure: |
Conventional Circuit Breaker |
Product Description

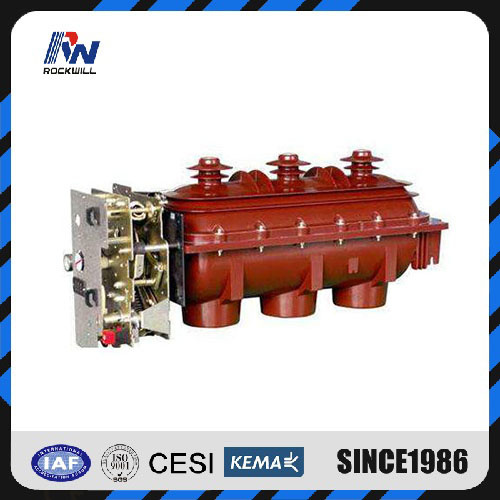

Product DescriptionGas-insulated indoor switch disconnector
The SFG is a gas-insulated switch disconnector for medium voltage switchgear within secondary distribution networks. There are several advantages that make the SFG concept suitable for many different applications. For instance the compact size and the lightweight construction of the switch disconnector are significant features for smart integration.
There are two types of operating mechanisms: the single spring device and the double spring device. Motor operation can be added to both types of operating mechanisms.
Feature

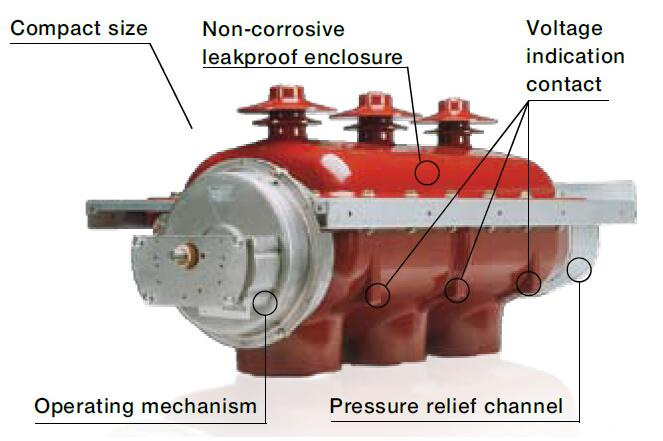

Safety
- Integrated voltage indicator
- Interlocking device
- Gas gauge, pressure indicator
- Inspection windows
- Non-corrosive leak-proof enclosure
- Pressure relief channel
Economy- Long lifecycle
- High mechanical endurance
- Low maintenance costs
- Low environmental impact
Reliability- Each unit is stringently tested
- Used worldwide in the Uniswitch
- Extremely durable and reliable operating mechanism
Smart integration- Compact size
- One switch - many applications
- Easy installation
- Part of the UNISUN solution
Standards
Compliance with IEC standards: IEC 60694; IEC 60265-1; IEC 60129; IEC 60420; IEC 60282-1; IEC 62271-102; IEC 62271-105; IEC 60265-1, Class E3; IEC 60420
Technical data| Ratings | Unit | Value | Value |
| Rated voltage | kV | 12 | 24 |
| Rated lighting impulse withstand voltage Common value | kV | 75 | 125 |
| Across the isolating distance | kV | 85 | 145 |
| Rated short duration power frequency withstand voltage Common value | kV | 28 | 50 |
| Across the isolating distance | kV | 32 | 60 |
| Rated frequency | Hz | 50/60 | 50/60 |
| Rated current | A | 800 | 630 |
| Rated short time withstand current | kA | 25 | 20 |
| Rated duration of short circuit | s | 2 | 3 |
| Rated peak withstand current | kA | 62.5 | 50 |
| Making and breaking tests (IEC 60265-1, Class E3) for the SFG switch |
| Mainly active load current | A | 800 | 630 |
| Closed-loop distribution circuit current | A | 800 | 630 |
| Cable charging current | A | 50 and 10 | 50 and 10 |
| Line charging current | A | 20 | 20 |
| Cable and line charging current under earth faults | A | 87 | 87 |
| Short circuit making current | kA | 62.5 | 50 |
| Making and breaking tests (IEC 60420) for the SFG switch - fuse combination |
| Withstanding and making the cut-off current of the fuse | kA | 25 | 20 |
| Breaking test with long prearcing time of fuse | | Ok | Ok |
| Breaking capacity at rated transfer current | A | 1530 | 920 |
| Mechanical performance |
| Mechanical endurance of switch close/open | Operations | 1000 | 1000 |
| Mechanical endurance of switch open/earth | Operations | 1000 | 1000 |
| Ambient temperature |
| Maximum value | ºC | 40 | 40 |
| Maximum value of 24 h mean | ºC | 35 | 35 |
| Minimum value | ºC | -5 | -5 |
| Altitude above sea level | m | < 1000 | < 1000 |
