Indoor Handcart Type Vacuum Circuit Breaker Vs1-24

Name: Indoor Handcart Type Vacuum Circuit Breaker Vs1-24
Brand: all-electronics-online.com
SKU: 695633592
Availability: InStock
Rating: 4.3 (72 reviews)

Price:	US $ 1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	VS1-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Circuit Breaker:	Vacuum Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Breaking Capacity:	High Voltage Circuit Breakers
Poles Number:	3
Certification:	CCC
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker

Product Description

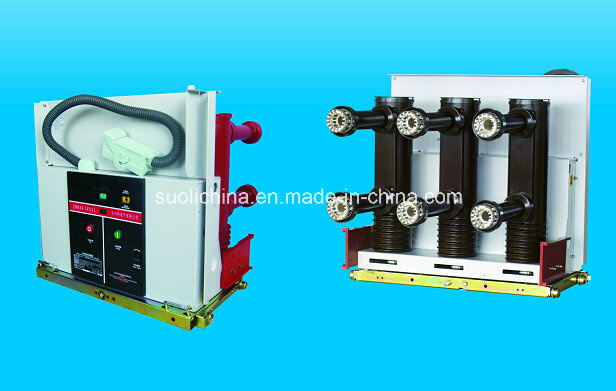

ZN63(VS1)-24 series handcart type indoor vacuum circuit breaker is rated voltage 24kV, three-phase AC 50Hz indoor high-voltage switchgear, apply for power stations, substations, and industrial and mining enterprises to control or protection transmission and distribution systems, specially for the important high altitude breaking load and frequent operation place.

Circuit breaker manufacturing accordance with our national standard GB1984-2003 "AC high voltage circuit breakers", DL/T403-2000 "3.6~40.5kV indoor vacuum circuit breaker ordering technology"; and the related IEC standards and reliable interlock function.

Circuit breaker operating mechanism for the spring energy storage type, can use AC and DC energy storage operations, can also be used manually.

Circuit breaker can be equipped with long life permanent magnetic actuator, mechanical life can reached 60000times, can be used for extremely frequent operation place.

Circuit breaker designed to repackage the structure before and after, both can be used as a fixed installation unit, can also be equipped with the chassis as used in the mounted unit.

The Use of Environmental Conditions

Ambient Temperature: not higher than +40°C, not less than -15°C.
Altitude: not exceed 1000m.
Relative Humidity: daily average of not more than 95%, month average of not more than 90%.
Earthquake Intensity: not more than 8.
No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.
