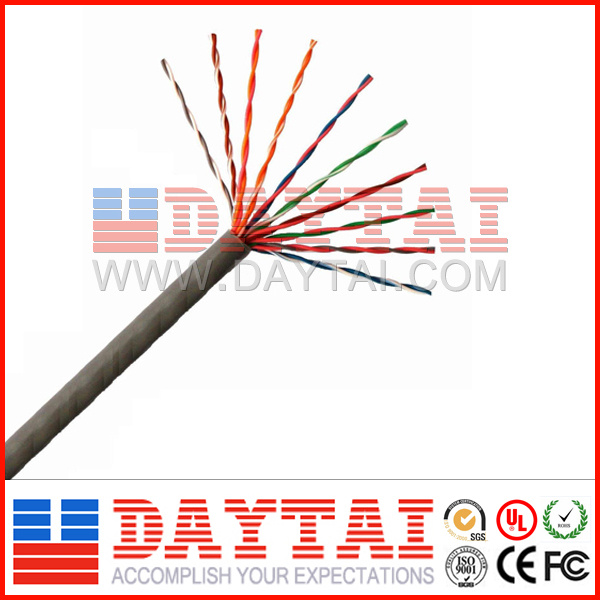

Indoor Network Cable 10pair Cat 3 UTP Cable
| Price: |
US $ 10-100/Box |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Box |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
10PAIR Cat3 UTP Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Conductors: |
10 Pair |
| Insulation: |
HDPE |
| Quantity Of Cable In Couple: |
4p,10p,25p,50p,100p Is Optional |
| Outer Jacket Material: |
PVC |
| Application: |
LAN Cable |
| Type: |
Cat 3 |
| Cover Material: |
PVC |
| Certification: |
UL |
| Brand: |
Daytai/ OEM |
| Conductor Material: |
Cu/ CCA |
Product Description
Description
CAT.3-UTP-10PAIR Cable,(24AWG*2*10)CU OR CCA+HDPE+Rip Cord+PVC.
Application:
1.Computer Network Cabling Project
2.Broadband Network Communication
3.Ethernet Network
4.Digital ISDN Network and ATM 155Mbps Network
5.Audio and Data Transmission
Electronic Performance
Frequency (MHz) |
RL(dB) |
Attenuation (dB/100M) |
Next Worst Pair
(dB) |
Next Power Sum (dB) |
Elfext worst pair (dB) |
Nominal Velocity Propagation |
0.772 |
16.7 |
1.8 |
64.0 |
64.0 |
63.0 |
0.65 |
1.0 |
17.0 |
2.0 |
62.3 |
62.3 |
6.08 |
4.0 |
18.8 |
4.1 |
53.3 |
53.3 |
48.7 |
8.0 |
19.7 |
5.8 |
48.8 |
48.8 |
42.7 |
10.0 |
20.0 |
6.5 |
47.3 |
47.3 |
40.8 |
16.0 |
20.0 |
8.2 |
44.3 |
44.3 |
36.7 |
20.0 |
20.0 |
9.3 |
42.8 |
42.8 |
34.7 |
25.0 |
19.3 |
10.4 |
41.3 |
41.3 |
32.8 |
31.25 |
18.6 |
11.7 |
39.9 |
39.9 |
30.9 |
62.5 |
16.5 |
17.0 |
35.4 |
35.4 |
24.8 |
100 |
15.1 |
22.0 |
32.3 |
32.3 |
20.8 |
B.
DC Resistance |
94 Ω KM Max @20°C |
DC Resistance unbalance |
3% Max |
Characteristic Impedance |
100±15Ω@1-100MHz |
Capacitive Unbalance |
3.4Pf/m Max. |
LCL |
45dB |
Structural Return Loss |
23dB/100m,1-20MHz,Min |
23-10Log(f/20)dB,f=20-100MHz |
Propagation Velocity(%,min) |
58-70% |
Time Propagation Delay |
570ns/100m,1MHz,Max |
540ns/100m,10MHz,Max |
530ns/100m,100MHz,Max |
Distortion Of Time Propagation Delay |
45ns/100m,1-100MHz,Max |
Insulation Resistance |
150MΩ,KM.Min.500Vdc |
Dielectric Strength |
1000Vac 1Min |
Rated Voltage |
220 Vac Max
|
