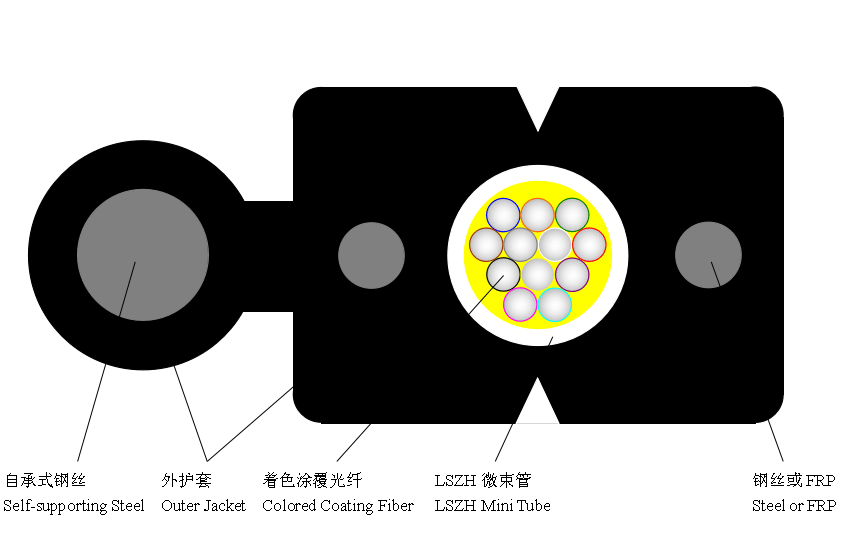

Indoor Self-Supporting FTTH Drop Fiber Optic Cable

Name: Indoor Self-Supporting FTTH Drop Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 685262012
Availability: InStock
Rating: 4.7 (24 reviews)

Price:	US $ 0.074-0.082/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Self-Supporting FTTH Drop Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dameter:	6*3mm
Drum:	2km/Drum
Self-Support:	Steel
Stremgth Member:	FRP
Application:	Art
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Fiber Optic
Brand:	OEM or Geyida
Sheath Material:	LSZH

Product Description

Application
1. Used as access building cable.
2. Used in indoor cabling, especially used for FTTH.

Features
1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meets the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.

Options:
Fiber Type:G.652, G.655 or 6.657 single-mode fiber. A1a or A1b, OM3 or OM4 mufti-mode fiber, or other types of fiber;
Jacket Material: Environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant palyolefin(LSZH),environmental halogen flame retardant polyolefin(ZRPO), environmental thermasplatic polyurethane(TPU), or other contracted material;
Jacket Color:(Including color of tiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1 km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.

No.	Items			Unit	Specification
					G.657A1
1	Mode Field Diameter		1310nm	9.0±0.4	8.6±0.4
			1550nm	10.1±0.5	9.6±0.5
2	Cladding Diameter			μm	124.8±0.7
3	Cladding Non-Circularity			%	≤0.7
4	/Core-Cladding Concentricity Error			μm	≤0.5
5	Coating Diameter			μm	245±5
6	Coating Non-Circularity			%	≤6.0
7	/Cladding-Coating Concentricity Error			μm	≤12.0
8	Cable Cutoff Wavelength			nm	λcc≤1260
9	Attenuation(max.)		1310nm	≤0.35	≤0.35
			1550nm	≤0.21	≤0.20
10	Macro-Bending Loss	1turn×7.5mm radius @1550nm		≤0.75	≤0.4
		1turn×7.5mm radius @1625nm		≤1.5	≤0.8

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
