| Prod Model: |
VS1-12 |
| Rated Voltage: |
12kv |
| Rated Current: |
630,1250,1600,2000,2500,3150,4000 |
| Mechanical Life: |
10000 |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Energy-storage Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Open Frame |
| Structure: |
ACB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description

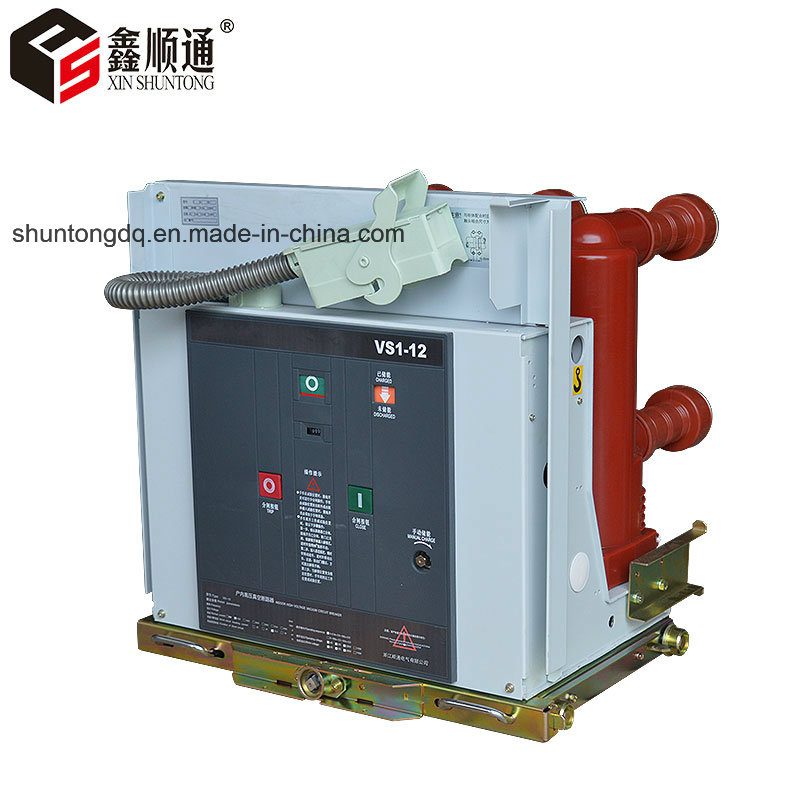

ZN63 (VS1) -12 series indoor vacuum circuit breaker is a three-phase AC 50Hz, rated voltage of 12kV indoor switchgear, control and protection for industrial and mining enterprises, power plants and substations, electrical facilities, and for frequent operation place. Adopting VET operating mechanism and circuit breaker integrated , design can be used as a fixed installation unit can also be equipped with special advance mechanism, the composition of handcart unit used. Some of the main circuit can use the whole solid seal post, in order to achieve smaller circuit breakers, high reliability, maintenance-free, can be equipped with KYN28A-12 (GZS) and other handcart switch cabinet in the home can also be used with fixed XGN switchgear.
Technical parameters
NO. | Item | Units | Parameters |
1 | Rated voltage | kV | 12 |
2 | Rated insulation level | Rated lightning impulse voltage tolerance | kV | 75 |
1 min frequency voltage | 42 |
3 | Rated short-circuit breaking current | kA | 20/25 | 31.5 | 40 |
4 | Rated current | A | 630 1250 | 630 1600 2500 | 1250 2000 3150 | 1250 2000 3150 | 1600 2500 4000 |
5 | Rated thermal stability of current (RMS) | kA | 20/25 | 31.5 | 40 |
6 | Dynamic stability rated current (peak) | 50/63 | 80 | 100 |
7 | Rated short-circuit closing current (peak) | 50/63 | 80 | 100 |
8 | Rated short-circuit breaking current breaking number | times | 500 |
9 | Frequency tolerance of the secondary circuit voltage (1min) | V | 2000 |
10 | Rated operating sequence | | O-0.3s-CO-180s-CO |
O-180s-CO-180s-CO |
11 | Rated thermal stabilization time | S | |
12 | Rated a single / back-to-back electric current breaking device group | A | 630/400 800/400 (40kA) |
13 | Mechanical life | times | 10000 |

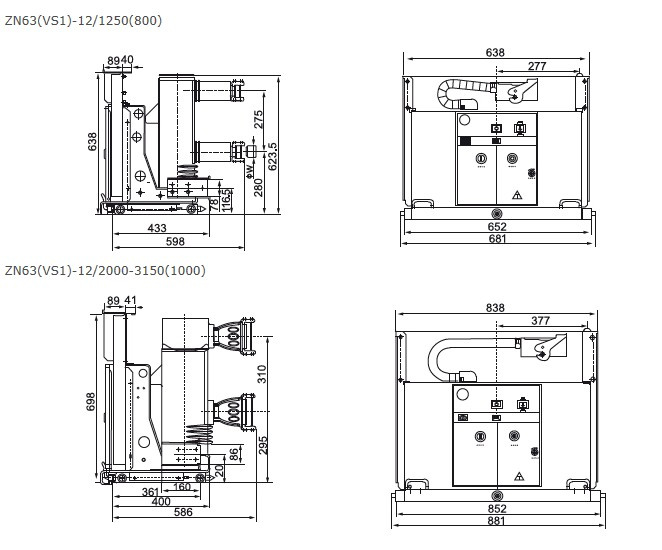

General structure drawing and installation:
