Industrial 3p 4p Contactor 800A Reversing Changeover AC Contactor

Prod Model:	CC1-800N

Product Description

CC1-800N Reversing/Change-over type Contactor

1. Description

Remote making & breaking circuits; Protect circuit
From over-load when assembling with thermal over-load relay;
Frequent start-up and control of AC contactor;
Electric ratings: AC50/60Hz, 690V, up to 800A;
Utilization category: AC-3, AC-4;
Altitude: ≤ 2000m;
Ambient temperature: -5º C~+40º C;
Mounting category: III;
Mounting conditions: Inclination between the mounting plane and the vertical plane should not exceed ± 5°;
Standard: IEC/EN 60947-4-1. IEC/EN 60947-5-1.

2. Structure of the contactor

The contactors are composed of two horizontally mounted contactors through mechanical interlock.
The lateral-side interlock is mounted between the two contactors.


Standard		IEC/EN60947-4-1
Model No.			CC1-330N	CC1-400N	CC1-500N	CC1-630N	CC1-800N
Rated Operation current (A) Ue=380/415V		AC-3 le(A)	330	400	500	630	800
		AC-4 le(A)	117	138	147	188	195
AC3 capacity of three-phase   squirrel-cage motor AC3(kW)		380/415V KW	160	200	250	335	132
		660/690V KW	220	280	335	450	400
Rated Conventional Heating Current Ith(A)			380	460	580	850	475
Rated Voltage Ui(V)			690	690	690	690	690
Number of the contact			3P or 4P

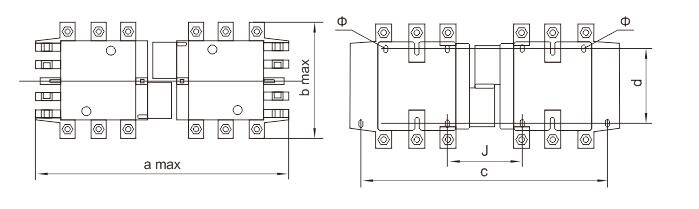

3. Dimension(mm)

Contactor	Pole	A max	b max	c	d	J
CC1-265N	3	450	203	428	110~120	109
CC1-2654N	4	546	249	485		157
