| Prod Model: |
HLWD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heating And Cooling: |
Heating and Cooling |
| Certificate: |
CE |
| Cooling Capacity: |
120kw-2002kw |
| Number Of Refrigerant Circulation: |
1 |
| Compresser: |
Screw Type |
| Capacity Control: |
0,50,75,100 |
| Power Supply: |
380V 50Hz 3pH |
| Refrigerant: |
R22 |
| Usage: |
Air Purifier |
| Certification: |
CE |
| Control Type: |
Digital |
| Type: |
Screw |
| Display Type: |
LED |
| Material: |
Stainless Steel |
| Brand: |
Huali |
Product Description

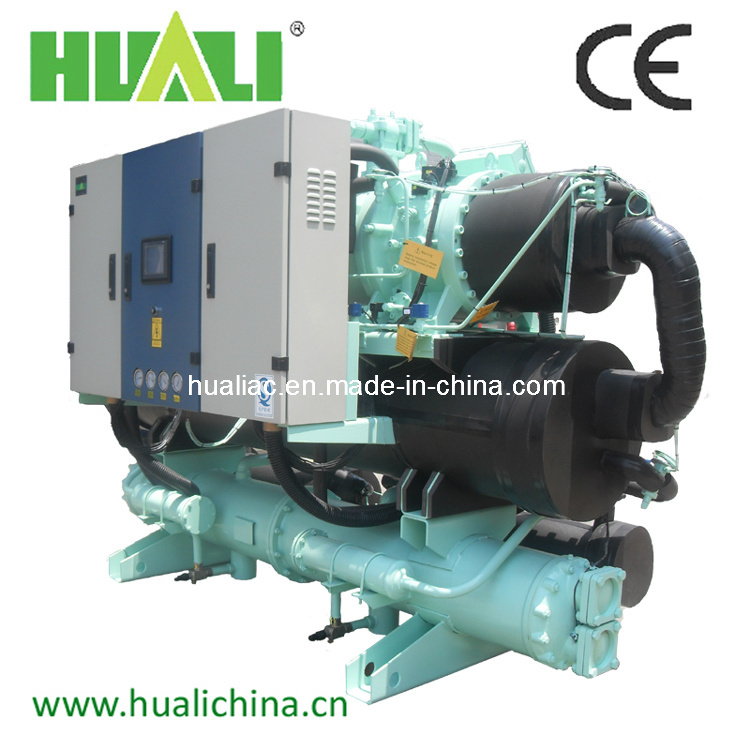

industrial double screw chiller, water cooled chiller:
Descriptionl;glglgal;
Designed for special low-temperature applications and its super-strength refrigerating capacity may offer reliable guarantee for all kinds of low-temperature applications, such as foodstuff fresh-keeping of hotels, restaurants, and supermarkets
The deepfreeze, cold storage, and ice manufacture in large-scale refrigerated warehouses/refrigeration/cold storage in food processing industries/pharmacy/chemical industries and more
Industrial water chiller features:
Cooling capacity: 1RT to 362RT
All complete product categories, including three series, namely high-temperature (leaving water temperature of 5° C to 0° C), moderate-temperature (leaving water temperature of -10° C), and low-temperature types
As per customer's requirements, we will also offer the unit which outlet liquid temperature will achieve to -30° C
Highly optimized structure, screw or reciprocating high efficiency compressor equipped with the protection device for phase reversing, phase lacking, motor overheating, freezing, high and low pressure limits high efficiency condensers, evaporators, and the leading brand electrical control components
With pressure control and pressure safety valve, these are used to guarantee operation safety of the system
Perfect combination of high-quality compressor and high-performance heat exchanger, ensuring a energy efficiency ratio of the unit up to 4.5, 4.4-segment capacity control, capable of fitting the load fluctuation exactly
| () LOW TEMP. WATER COOLED SCREW-TYPE CHILLER |
| : -35ºC Water outlet temperature -35ºC Refrigerant R404A |
| Model HLWD~ | 194DJY | 214DJY | 228DJY | 240DJY | 277DJY | 305DJY | 327DJY | 365DJY | 458DJY | 540DJY | 600DJY |
| 194DJRY | 214DJRY | 228DJRY | 240DJRY | 277DJRY | 305DJRY | 327DJRY | 365DJRY | 458DJRY | 540DJRY | 600DJRY |
Rated Cooling Capacity | X1000 Kcal/h | 166.8 | 184.0 | 196.0 | 205.5 | 238.2 | 262.3 | 281.2 | 313.8 | 393.8 | 463.5 | 517.6 |
| KW | 194 | 214 | 228 | 239 | 277 | 305 | 327 | 365 | 458 | 539 | 602 |
| USRT | 55.2 | 60.8 | 64.8 | 68.0 | 78.8 | 86.7 | 93.0 | 103.8 | 130.2 | 153.3 | 171.2 |
| Input Power | KW | 193.6 | 214.8 | 228.4 | 239.8 | 277.2 | 304.4 | 325.4 | 362.0 | 458.0 | 537.4 | 596.4 |
| X Comp.Input Power XQTY (kw) | 96.8×2 | 107.4×2 | 114.2×2 | 119.9×2 | 138.6×2 | 152.2×2 | 162.7×2 | 181.0×2 | 229.0×2 | 268.7×2 | 298.2×2 |
| Comp.Current (A) | 325.4 | 361.2 | 383.8 | 403.2 | 466.0 | 501.8 | 547.0 | 608.8 | 770.0 | 903.6 | 1002.6 |
| Power Supply | 3 -380V-50HZ |
| Protection Device | ,,,,,,
Phase reversion protection, Phase lack protection, Overload current protection,
Discharge air temperature protection, Low&High pressure protection, Low temp protection, Water flow protection. |
| Number of Refrigeration Circuit | 2 |
| Capacity Control (%) | 0, 25,37.5,50,62.5,75,87.5,100 |
| Refrigerant Charge (kg) | 188 | 204 | 220 | 230 | 268 | 296 | 316 | 354 | 436 | 512 | 584 |
| Condenser | Shell and Tube Type |
| Water Side Max Pressure (MPa) | 1 |
| Dia.of Pipe to Condenser (inch) | 4"×2 | 5"×2 | 5"×2 | 5"×2 | 5"×2 | 5"×2 | 5"×2 | 6"×2 | 6"×2 | 8"×2 | 8"×2 |
| Cooling Water Flow (m3/h) | 66.7 | 73.7 | 78.5 | 82.3 | 95.3 | 104.8 | 112.2 | 125.0 | 157.5 | 185.1 | 206.1 |
Condenser Water Pressure drop
(kPa) | 43 | 44 | 47 | 50 | 56 | 58 | 63 | 69 | 72 | 75 | 80 |
| Evaporator | Shell and Tube Type |
| Water Side Max Pressure (MPa) | 1 |
| Dia.of Pipe to Evaporator (inch) | 6" | 6" | 8" | 8" | 8" | 8" | 8" | 8" | 8" | 10" | 10" |
| 55%55% Glycol Flow Capacity (m3/h) | 42.8 | 47.2 | 50.3 | 52.8 | 61.2 | 67.3 | 72.2 | 80.6 | 101.1 | 119.0 | 132.9 |
Evaporator
Water Pressure drop (kPa) | 59 | 65 | 64 | 69 | 75 | 97 | 93 | 90 | 87 | 96 | 104 |
| Running Noise dB(A) | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 |
| Total weight (Kg) | 4650 | 5030 | 5440 | 6020 | 6510 | 6970 | 7200 | 7450 | 9120 | 9820 | 10450 |
| Running Weight (Kg) | 5870 | 6350 | 6790 | 7060 | 7290 | 7550 | 7880 | 8230 | 10280 | 11150 | 11720 |
| Heat Recovery |
| Refrigerant charge(kg) | 188 | 204 | 220 | 230 | 268 | 296 | 316 | 354 | 436 | 512 | 584 |
Heat Reclaimed Volume | X1000 Kcal/h | 50.0 | 55.2 | 58.8 | 61.7 | 71.5 | 78.7 | 84.4 | 94.2 | 118.1 | 139.0 | 155.3 |
| kW | 58 | 64 | 68 | 72 | 83 | 92 | 98 | 110 | 137 | 162 | 181 |
| USRT | 16.5 | 18.3 | 19.4 | 20.4 | 23.6 | 26.0 | 27.9 | 31.1 | 39.1 | 46.0 | 51.4 |
| Heat Recoverer | Shell and Tube Type |
| Water Side Max Pressure (MPa) | 1 |
| Dia of pipe to Heat Recoverer(inch) | 3" | 3" | 3" | 3" | 4" | 4" | 4" | 4" | 5" | 5" | 5" |
| Reclaimed Water Flow(m3/h) | 10.0 | 11.0 | 11.8 | 12.3 | 14.3 | 15.7 | 16.9 | 18.8 | 23.6 | 27.8 | 31.1 |
| Heat recovery Unit Water Pressure drop(kPa) | 34 | 35 | 38 | 38 | 39 | 42 | 43 | 43 | 43 | 43 | 43 |
| Total weight (Kg) | 5050 | 5910 | 6090 | 6670 | 7330 | 7790 | 8020 | 8270 | 9940 | 10640 | 11270 |
| Running Weight (Kg) | 6270 | 6930 | 7440 | 7720 | 8110 | 8370 | 8700 | 9050 | 11100 | 11970 | 12540 |
| Dimension L×W×H | 4100×2050×2200 | 4100×2050×2300 | 4500×2050×2450 | 4500×2050×2500 | 4600×2100×2550 | 4600×2100×2600 | 4600×2250×2600 | 4700×2250×2800 | 5200×2250×2800 |
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.
We found the Domestic Market Department, Overseas Markets Department,
Research & Development Department in December, 2008.
We applied for CE certification and passed in 2009.
We applied for 6 software registration rights in 2010.
We applied for 3 utility model patents in 2011.
Our company was approved as a national high-tech enterprise on November 5, 2012.
Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
