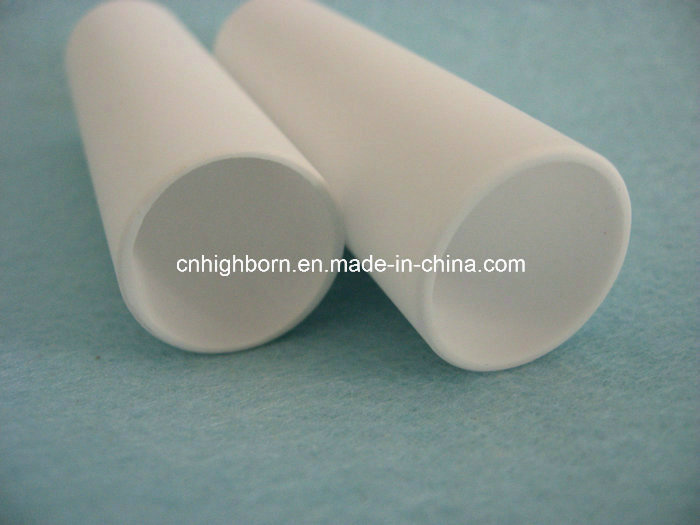

Industrial Electrical Insulation 95% Al2O3 Ceramic Pipe

Prod Model:	HBK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	3.70g/cm3
Temperature:	1600
Size:	Customized
Keyword:	95% Al2O3 Ceramic Pipe
Application:	Insulators
Type:	Insulation Sleeve
Material:	Ceramic
Chemistry:	Insulation
Thermal Rating:	1600
Maximum Voltage:	220V
Classification:	Insulation
Brand:	Hb;OEM

Product Description

1.material: 95% alumina ceramic
2.Temperature:1600ºC
3.Tolerance:+/-0.01mm
4.High resistance

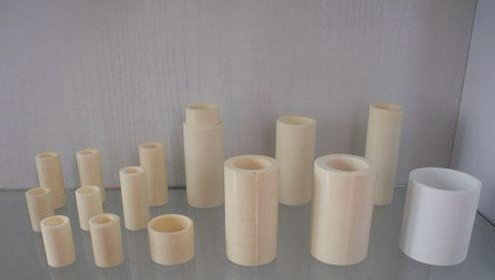

Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, isostatic pressing and extrusion productive technology etc


Properties		Units	Alumina(Al2O3)
			Al2O3 92%	Al2O3  95%	Al2O3  99%	Al2O3 99.5%
Mechanical	Density	g/cm3	3.6	3.7	3.9	3.9
	Color	--	White	White	Ivory	Ivory
	Water Absorption	%	0	0	0	0
	Vickers Hardness	Gpa	11	11.5	13	14
	Flexural Strength       (20°C)	Mpa	345	358	380	380
	Compressive Strength           (20°C)	Mpa	2200	2300	3000	3000
Thermal	Thermal Conductivity   (20°C)	W/m.K	16.7	24.8	25~35	25~35
	Thermal Shock Resistance       (20°C)	ΔT(C)	250	250	200	200
	Maximum Use Temperature	°C	1500	1600	1700	1700
Electrical	Volume Resistivity       (25°C)	Ω.cm	>1014	>1014	>1014	>1014

Packaging & Shipping
professional export packaging(cartoon&wooden box)

Our Services

 We can design upon the customers' detailed requirements.OEM production.package or logo can be make according to customers' need. professional fragile packaging services.
