Industrial PC Integrated Intel Atom J1900 Motherboard

Name: Industrial PC Integrated Intel Atom J1900 Motherboard
Brand: all-electronics-online.com
SKU: 820978405
Availability: InStock
Rating: 4.9 (117 reviews)

Price:	US $ 90-118/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	J1900
Chipset:	Intel® J1900 Express Chipset
BIOS:	Award 8MB DIP Flash ROM
Lvds:	Onboard 24bit Dual Channel Lvds Connector
Expansion Sockets:	1Mini SATA Socket; 1Mini-Pcie Socket;
Integrated Graphics:	Integrated Graphics
Main Chipset:	Intel
Maximum Memory Capacity:	8G
Structure:	Mini-ITX
Memory:	DDR3
SATA Interface:	SATA2.0
Main Board Structure:	Integrated

Product Description

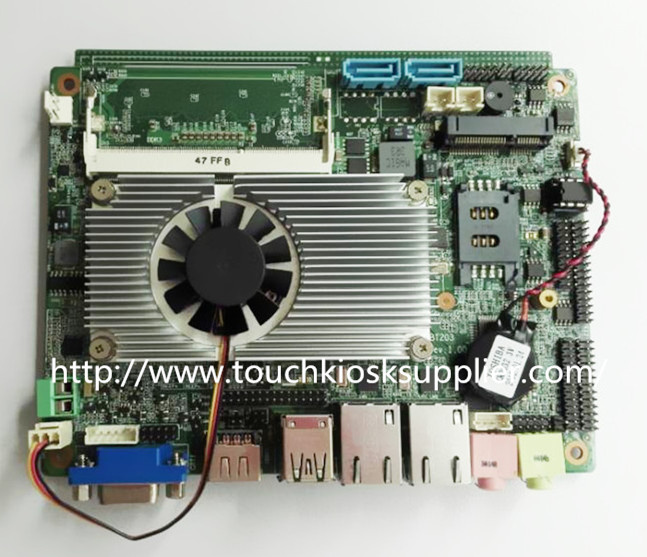

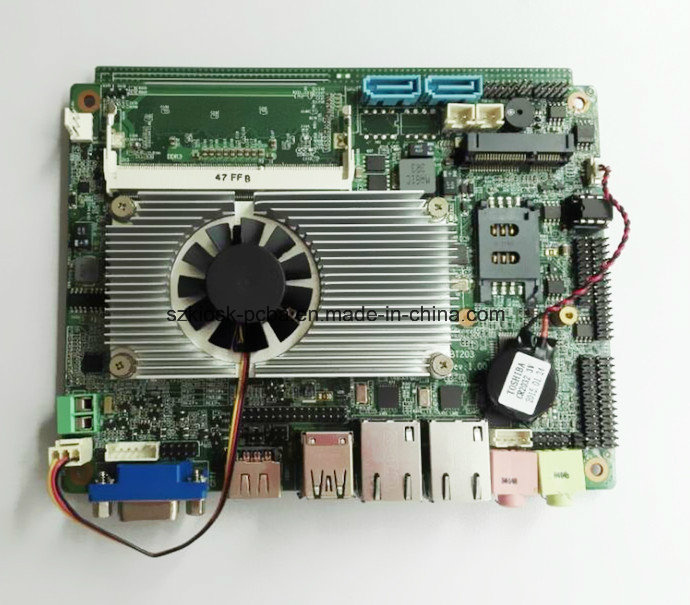

Industrial PC integrated intel ATOM J1900 Motherboard

Main Features
Suitable for	Firewall; AD Player; AIO ; Thin Client; HTPC;VOD; IPC; POS etc.
Form Factor	3.5 Inch
Chipset Manufacturer	Intel
CPU	Intel® 4th Atom Baytrail-D/I/M N2806 /J1800/N2900/J1900 Processor optional
FSB	2.0GHZ
Chipset	Intel® J1900 Express chipset
L2 Cache	1MB, CPU integrated
BIOS	Award 8MB DIP Flash ROM
RAM	1*onboard 1333 DDR3L 2GB memory (SO-DIMM Onboard .maximum 4GB optional) Onboard 16/32/64G SSD Optional
Sound	Realtek HD ALC662 chipset, provide 6 channels output, onboard power amplifier.
Network	Realtek RTL8111EL PCI-E Gigabit Ethernet LAN,support RTL/PXE diskless booting.
LVDS	Onboard 24bit dual channel LVDS connector
USB	6USB (1USB3.0 ports ,1*USB2.0 ports ,4 USB Pins)
Storage	2SATA2.0 ; 1mSATA
Expansion Sockets	1Mini SATA socket; 1Mini-PCIE socket;
Rear panel I/O	1*12V -DC power supply
	1*VGA port
	1USB 2.0/1.1 port 1USB3.0 port
	2*1000M RJ45 port
	2*Audio I/O interfaces( Line in, Line out, Mic)
Internal I/O	1*30pin LVDS
	6COM expansion headers (support 5RS232/1* 488/485)
	8*GPIO expansion header(8 bit)
	1*VGA expansion header
	1*LPT expansion header
	1*SPDIF pin header
Power Interface	12V-DC/ATX 4PIN
Power Consumption	15W
Working Temperature	-20°C~70°C (-4°F~158°F)
Storage Temperature	-20°C~80°C (-4°F~176° )
Operating Humidity	10%~90% (non-condensing)
Advantages
1. Embedded high performance industrial motherboard. (1.8CM ultrathin) 2. All tantalum capacitor design, onboard DDR3 2GB memory, maximum up to 6GB. 3. Support 3G SIM card, support Mini SATA, more efficiency. 4. Support power booting/plug and play, Timer-power-on. 5. Support 18bit single ch LVDS output.VGA and LVDS asynchronous with show supported. 6.Reliable, High stability, Low noise, low power consumption.Perfectly suitable for AD Player/AIO machine/ IPC/VOD/Car PC/HTPC etc. 7.6*COM expansion header design. 8.Certificate:CE,FCC,RoHs
