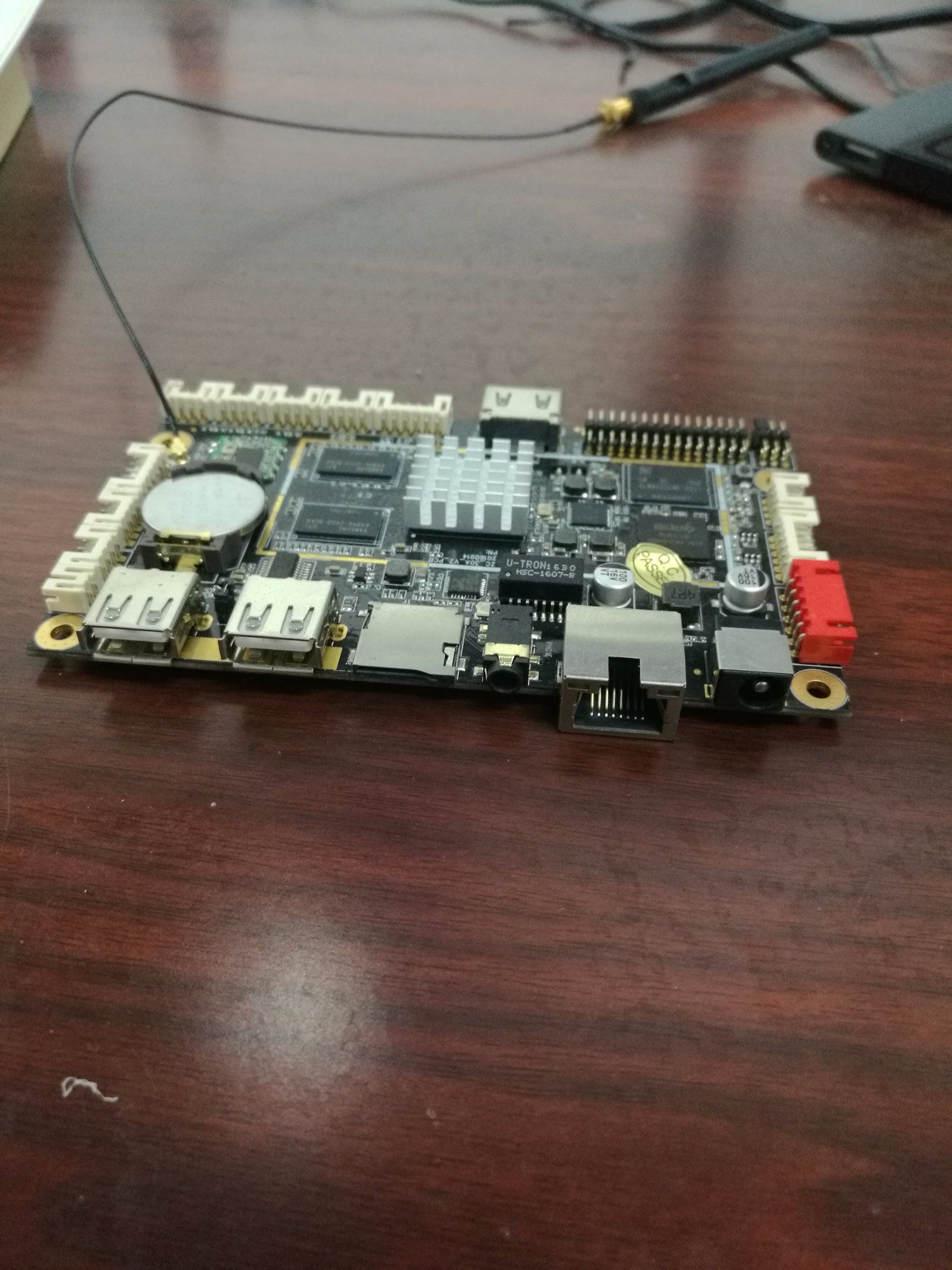

OEM Control Module PCBA Board

Name: OEM Control Module PCBA Board
Brand: all-electronics-online.com
SKU: 828371325
Availability: InStock
Rating: 4.4 (85 reviews)

Price:	US $ 5-30/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KIOSKM3
Board Thickness:	0.075mm
Min. Line Width:	.2mm
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Single-Layer
Base Material:	FR-4
Certification:	ISO
Customized:	Customized
Condition:	New

Product Description

OEM Control Module PCBA Board

Item	Capability
1.Base Material	FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
2.Layers	1-28
3.Finised inner/outer copper thickness	1-6OZ
4.Finished board thickness	0.2-7.0mm
5.Min hole size	Mechanical hole: 0.15mm Laser hole: 0.1mm
6.Plugging vias capability	0.2-0.8mm
7.Outline profile	Rout/ V-cut/ Bridge/ Stamp hole
8.Surface treatment	HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…
9.Controlled Impedance	+/-5%

PCB capability and services:

1. Single-sided, double side & multi-layer PCB. FPC. Flex Rigid PCB with competitive price,
good quality and excellent service

2. CEM-1, FR-4, FR-4 High TG, Aluminum base material, Polyimide, etc

3. HAL, HAL lead free, Immersion Gold, OSP surface treatment

4. Quantities range from sample to mass order

5. 100% E-Test

SMT (Surface mounting technology), COB, DIP.

1. Material Sourcing Service

2. SMT assembly and Through hole components insertion

3. IC pre-programming / Burning on-line

4. Function testing as requested

5. Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc)

6.OEM/ODM also welcomed

Packaging and Shipping

FAQ
1. Do you accept sample order?
Yes,We do.And we accept customized products
2. What's your Minimum order quantity?
MOQ 1pc
3. What the payment Method?
We accept T/T,Paypal .
4. What's the shipping way?
You can choose DHL,EMS,FEDEX ect.
5. Do you accept OEM order?
Yes ,We can accept the OEM order with your own logo as per your requirement if the quantity reached enough.
6. When we will send out the products ?
After confirm the payment ,sample need 3-5 days,the need of batch 15-30 days .
7. What's the warranty ?
1.5 years.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
