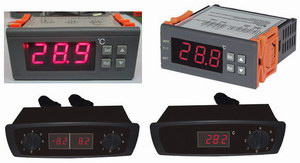

Industrial Temperature Controller
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SRTC30X, SRTC40X, SRTC50X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Refrigerator |
| Control Type: |
Digital |
| Type: |
Temperature Controller |
Product Description
SRTC302C Temperature Controller
Specification:
-Power supply: 220VAC OR 110VAC
-Power consumption: <5W
-Measuring range: -50ºC-110ºC
-Controlling range: -50ºC-110ºC
-Display resolution: 0.1
-Measurement accuracy: ±1ºC
-Relay capacity:10A/250VAC
SRTC303C Temperature Controller
Specifications:
-Panel size: 75*34(mm)
-Installing size: 71*29(mm)
-Product size: 75*34.5*85(mm)
-Temperature measuring and controlling range: -50-50ºC
-Power supply: 220VAC 50HZ
-Power consumption: <5W
-Ambient temperature: 0-60ºC
-Relative humidity: 20%-85%(No condensate)
-Accuracy: ±1ºC
-Relay capacity of compressor alarm and defrost: 10A/220VAC
SRTC304C Temperature Controller
Specification:
-Panel size: 75*34(mm)
-Installing size: 71*29(mm)
-Product size: 75*34.5*85(mm)
-Temperature measuring and controlling range: -50~50ºC
-Power supply: 220VAC 50Hz
-Power consumption: <5W
-Ambient temperature: 0~60ºC
-Relative humidity: 20%-85%(No condensate)
-Accuracy: ±1ºC
-Relay capacity of compressor: 10A/220VAC Relay capacity of compressor and defrost.
SRTC402X Knob Type Temperature Controller
Specification:
-Temp. Measuring range: -40ºC to +90ºC
-Resolution: 0.1ºC
-Accuracy: ±1ºC
-Refrigerant relay output: 30A/240VAC(max. Load is 1.5HP)
-Compressor start-up delay time: 2 minutes
-Temp. controlling level: 0-7 level
-Power consumption: <3W
-Safe level: IP65
SRTC403X Knob Type Temperature Controller
Specification:
-Product size: 170*56*80(mm) -Installation size: 155*45(mm)
-Temperature measuring range: -40ºC~+90ºC
-Measuring accuracy: ±1ºC
-Resolution: 0.1ºC
-Refrigerant relay output: 30A/240VAC(max. load is 1.5HP)
-Compressor start-up delay time: 2 minutes
-Temperature controlling level: 0~7 level (OFF is to close controller)
-Power consumption: <3W
-Safe level: IP65
SRTC404X Knob Type Temperature Controller
Specification:
-Product size: 170*56*80(mm)
-Installation size: 155*45(mm)
-Temperature measuring and controlling range: -40~70ºC
-Measuring and controlling accuracy: ±1ºC
-Power supply: 220VAC/50HZ
-Compressor output contact capacity: 30A/250VAC
-Resolution: 0.1ºC
-Power consumption: <3W
-Sensor: NTC, 2 meters
-Safe level: IP65
-Operating environment: humidity: 10%~90%RH(No condensate), Temperature: -10ºC~60ºC
SRTC405X Knob Type Temperature Controller
Specification:
-Product size: 170*56*80(mm)
-Installation size: 155*45(mm)
-Temperature measuring and controlling range: -40~70ºC
-Measuring and controlling accuracy: ±1ºC
-Power supply: 220VAC/50HZ
-Compressor output contact capacity: 30A/250VAC
-Resolution: 0.1ºC
-Power consumption: <3W
-Sensor: NTC, 2 meters
-Safe level: IP65
-Operating environment: humidity: 10%~90%RH(No condensate), Temperature: -10ºC~60ºC
SRTC502H Wine Cooler Temperature Controller
Specification:
-Product size: 137*56*69(mm)
-Installation size: 112*39(mm)
-Power supply: 115-250VAC±15% 50HZ
-Temperature measuring and controlling range: 4~18ºC(39-64 ºF)
-Accuracy: ±1ºC/ ºF
