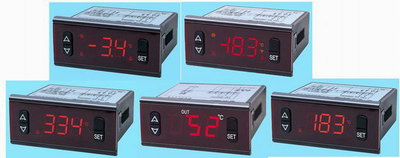

SRTC Temperature Controller (SRTC series)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
SRTC series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Type: |
Digital |
Product Description
Heating type temperature controller SRTC66
Technical Data
-Range of temperature display:-150~550ºC
-Range of set temperature:-150~550ºC
-Accuracy:±1ºC
-Temperature sensor: PT100(purchase additionally), 1PCS
-Compressor: N.O. 10A/250VAC
-Dimension:77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension:71(Length)*29(Width)mm
General type temperature controller SRTC330A
Technical Data
-Range of temperature display:-45~120ºC(-40~248ºF)
-Range of set temperature:-45~120ºC(-40~248ºF)
-Accuracy:±0.1ºC(±1.8ºF)
-Control output: N.O. 16A/250VAC
-Alarm output: N.O. 5A/250VAC
-Dimension:77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension:71(Length)*29(Width)mm
Heating type temperature controller SRTC330L
Technical Data
-Range of temperature display:-20~300ºC
-Range of set temperature:-20~280ºC
-Accuracy:±1ºC
-Control output: N.O. 16A/250VAC
-Dimension:77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension:71(Length)*29(Width)mm
General type temperature controller SRTC803
Technical Data:
-Range of temperature displayed:-45ºC~120ºC
-Range of set temperature:-40ºC~110ºC
-Accuracy:±1ºC
-Heater: 10A/250VAC
-Dimension:77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension:71(Length)*29(Width)mm
General type temperature controller SRTC330
Technical Data:
-Power supply:230VAC/120VAC
-Range of temperature display:-45~120ºC(-40~248ºF)
-Range of set temperature:-45~120ºC(-41~248ºF)
-Accuracy:±1.0ºC(±1.8ºF)
-Resolution:0.1ºC(-19.9~99.9ºC)
-Relay output: N.O. 16A/250VAC
-Dimension:77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension:71(Length)*29(Width)mm
