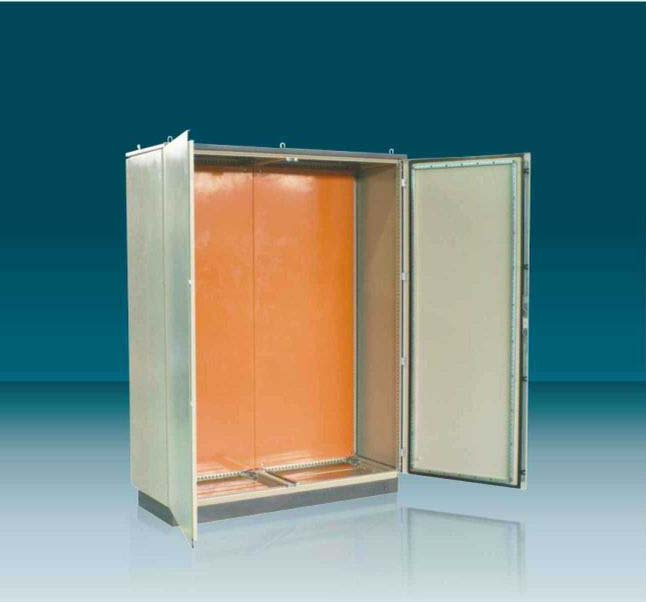

Industry Cabinet

Name: Industry Cabinet
Brand: all-electronics-online.com
SKU: 678374335
Availability: InStock
Rating: 4.8 (110 reviews)

Price:	US $ 200/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	20/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BJH-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Power
Structure:	Fixed Board

Product Description

1. Sheet steel
2. Frame structure: 9-fold profiled, Complies with NEMA 12
3. Door: 2.0mm
Rear panel: 1.5mm
Mounting plate: 3.0mm
4. Corresponds to IP55 toEN60 529/10.91
Complies with NEMA 12
5. Surface finish:
Frame: Dipcoat primed RAL7032
Door, rear panel and top cover:
Dipcoat primed and powder coated
In textured RAL7032
Mounting plate: Powder coated similar to RAL 2000
6. Supply includes:
Enclosure frame with door(s), rear panel
And top cover removable. 4 lifting eyebolts fitted,
Mounting plate. Gland plates in three parts
Punched section for secure transportation.

height	width	depth	enclosure without	enclosure with
(A)	(B)	(C)	mounting plate	mounting plate
1800	600	400	BJH-D 186/40	BJH-D 186/40 MP
1800	800	400	BJH-D 188/40	BJH-D 188/40 MP
1800	1000	400	BJH-D 1810/40	BJH-D 1810/40 MP
1800	1200	400	BJH-D 1812/40	BJH-D 1812/40 MP
1800	600	500	BJH-D 186/50	BJH-D 186/50 MP
1800	800	500	BJH-D 188/50	BJH-D 188/50 MP
1800	1200	500	BJH-D 1812/50	BJH-D 1812/50 MP
2000	600	400	BJH-D 206/40	BJH-D 206/40 MP
2000	800	400	BJH-D 208/40	BJH-D 208/40 MP
2000	1200	400	BJH-D 2012/40	BJH-D 2012/40 MP
2000	400	500	BJH-D 204/50	BJH-D 204/50 MP
2000	600	500	BJH-D 206/50	BJH-D 206/50 MP
2000	800	500	BJH-D 208/50	BJH-D 208/50 MP
2000	1000	500	BJH-D 2010/50	BJH-D 2010/50 MP
2000	1200	500	BJH-D 2012/50	BJH-D 2012/50 MP
2000	400	600	BJH-D 204/60	BJH-D 204/60 MP
2000	600	600	BJH-D 206/60	BJH-D 206/60 MP
2000	800	600	BJH-D 208/60	BJH-D 208/60 MP
2000	1000	600	BJH-D 2010/60	BJH-D 2010/60 MP
2000	1200	600	BJH-D 2012/60	BJH-D 2012/60 MP
2000	600	800	BJH-D 206/80	BJH-D 206/80 MP
2000	800	800	BJH-D 208/80	BJH-D 208/80 MP
2000	1200	800	BJH-D 2012/80	BJH-D 2012/80 MP
2200	600	600	BJH-D 226/60	BJH-D 226/60 MP
2200	800	600	BJH-D 228/60	BJH-D 228/60 MP
2200	1200	600	BJH-D 2212/60	BJH-D 2212/60 MP
