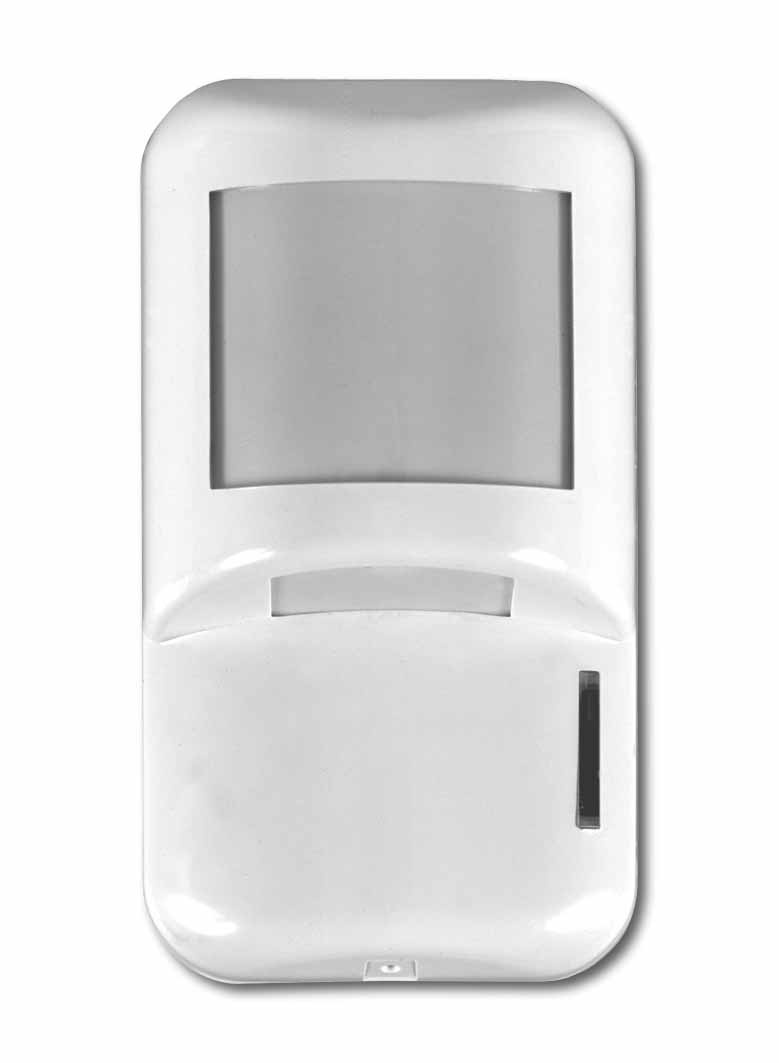

Infrared and Microwave Technologies Alarm Detector EL-1484

Prod Model:	Alarm Detector EL-1484
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Sensor
Application:	Home, Industry, Communication Electronic Products
Usage:	Anti-Theft
Installation Mode:	Contact Type
Saling Points:	Experienced Staff & Good Price
W.T.:	0.10kg/PCS

Product Description

Infrared And Microwave Technologies Alarm Detector EL-1484

Features:
Dual 1484 detectors integrate passive infrared and microwave technologies for durable performance. With computerized disturbance filter, and the added benefit of alarm memory, these detectors provide years of reliable operation.

Microprocessor signal processing
Dual technology
Temperature compensation
Dual element
Computerized disturbance filter
Microwave sensitivity adjustment trimmer
DRO patch antenna
Local and remote LED disable
Alarm memory
Maximum Range 12m x 12m
Pulse Count 1 or 2 selectable
Power Supply 9-16VDC
Dimensions 12.7x 7.1x 5.6cm

Technical specifications:
Technology Dual technology
Pyroelectric Sensor Type Dual element
Maximum Range 12m x12m
Current Consumption in Standby 26mA@12V
Current Consumption in Alarm 43mA@16V
Power Supply 9 - 16VDC
Pulse Count 1 or 2 selectable
Operating Temperature -10° To 60° C
Temperature Compensation Analog
Reverse Polarity Protection YES
LED Indicator Selectable
Dimensions 10.4x6.4x5cm
Look Down Yes
LENS Option Standard
Relay Parameters N. C Dry contacts switching 30Vdc, 0.3A max
Microwave Frequency 10.525GHz, 9.9GHz or 9.3GHz

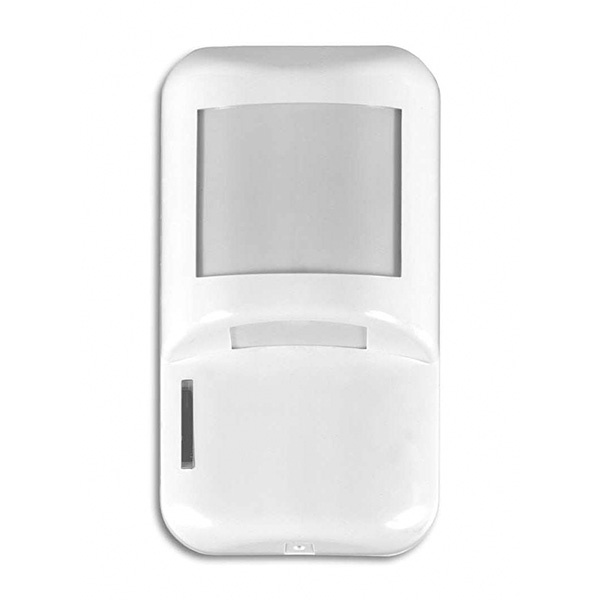

Picture:



Shipment&Payment:

Model	EL-1484
Shipment	DHL, UPS, FEDEX....
Payment	T/T, Western Union, Paypal
