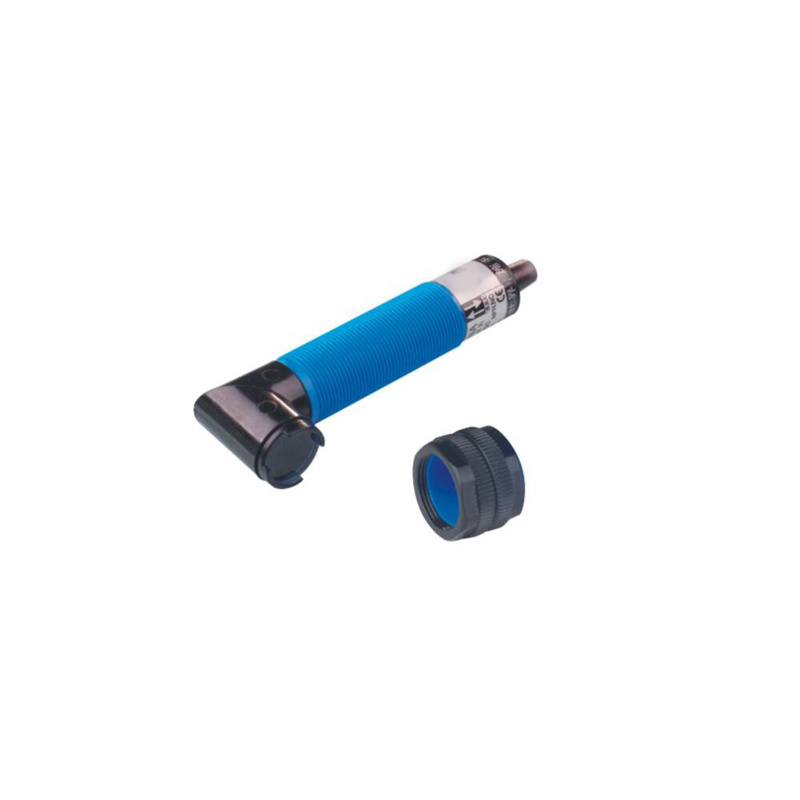

Infrared Photoelectric Switch G180

Name: Infrared Photoelectric Switch G180
Brand: all-electronics-online.com
SKU: 834474405
Availability: InStock
Rating: 4.3 (75 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	G180
Detection Distance:	2mm/10mm
Working Voltage:	DC10-30V/AC90-250V
Output Form:	NPN / PNP / Two Wire / SCR
State:	No / Nc
Detection Way:	Diffuse Type / Retroreflective / Trough Beam
Type:	Photoelectric Switch
Production Process:	Flush or Non-Flush

Product Description

Photoelectric Sensors detect photo-optical workpieces. DESON provides many varieties of Sensor, including diffuse-reflective, through-beam, retro-reflective, and distance-settable Sensors, as well as Sensors with either built-in or separate amplifiers.

Features :

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Model NO.	Detection distance	Working voltage	Output		Detection way
Model NO.	Detection distance	Working voltage	Form	State	Detection way
G180 -3A 10NA	10cm	DC10-30V	NPN	NO	Diffuse type
G180 -3A 10NB	10cm	DC10-30V	NPN	NC	Diffuse type
G180 -3A 10NC	10cm	DC10-30V	NPN	NO+NC	Diffuse type
G180 -3A 10PA	10cm	DC10-30V	PNP	NO	Diffuse type
G180 -3A 10PB	10cm	DC10-30V	PNP	NC	Diffuse type
G180 -3A 10PC	10cm	DC10-30V	PNP	NO+NC	Diffuse type
G180 -2A 10LA	10cm	AC90-250V	SCR Control lable silicon	NO	Diffuse type
G180 -2A 10LB	10cm	AC90-250V	SCR Control lable silicon	NC	Diffuse type
G180-3B2NA	2m	DC10-30V	NPN	NO	Retroreflective
G180-3B2NB	2m	DC10-30V	NPN	NC	Retroreflective
G180-3B2NC	2m	DC10-30V	NPN	NO+NC	Retroreflective
G180-3B2PA	2m	DC10-30V	PNP	NO	Retroreflective
G180-3B2PB	2m	DC10-30V	PNP	NC	Retroreflective
G180-3B2PC	2m	DC10-30V	PNP	NO+NC	Retroreflective
G180-2B2LA	2m	AC90-250V	SCR Control lable silicon	NO	Retroreflective
G180-2B 2LB	2m	AC90-250V	SCR Control lable silicon	NC	Retroreflective
G180 -3C 5NA	5m	DC10-30V	NPN	NO	Through beam
G180 -3C 5NB	5m	DC10-30V	NPN	NC	Through beam
G180 -3C 5NC	5m	DC10-30V	NPN	NO+NC	Through beam
G180 -3C 5PA	5m	DC10-30V	PNP	NO	Through beam
G180 -3C 5PB	5m	DC10-30V	PNP	NC	Through beam
G180 -3C 5PC	5m	DC10-30V	PNP	NO+NC	Through beam
G180 -2C 5LA	5m	AC90-250V	SCR Control lable silicon	NO	Through beam
G180 -2C 5LB	5m	AC90-250V	SCR Control lable silicon	NC	Through beam

Inductance type

LM5 LM6 LM8 LM8-T LM12 LM12-T LM18 LM18-T LM30 LM30-T LMF1 LMF2 LMF3 LMF11 LMF37 LMF340 PR08 PR12 PR18 PR30 E2E-2 E2E-X4 E2E-X5 E2E-X8 E2E-X10 E2E-X18

Capacitance type

CM12 CM18 CM30 CMF37 E2K

Hall type

SM8 SM12 SM18

Mimic linear type

XM12 XM18 XM30 XMF37 XMF38

Ultrasonic type

UB400 UB500 UB1000 UB1500 UB2000

Safety explosion-proof type

AM8 AM12 AM18 AM30

Reed type

TCS1-E TCS1-F

Photoelectric type

G12 G15 G16 G18 G30 G50 G63 G139

Color mark and Area secure type

BZJ-211 BZJ-311 BZJ-411 BZJ-511 KS-C2 Z3N-TB22 GM20 GM40

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
