Infrared Toaster Oven Waterproof Heating Element

Name: Infrared Toaster Oven Waterproof Heating Element
Brand: all-electronics-online.com
SKU: 729462035
Availability: InStock
Rating: 4.9 (146 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White
Voltage:	220V
Reflection:	Gold Planted or White Coated
Application:	Heater

Product Description

Detail dimension of infrared heateing infrarent:
Type
Voltage
Power
Length
OD
Heating wire
XD-Q10

Customized is ok
300W-450W
300-400mm
10mm
Ocr25A15
XD-Q12
500W-600W
350-450mm
12mm
XD-Q16
600W-1200W
450-650mm
16mm
XD-Q18
2000W-3000W
500-650mm
23mm
XD-QA
300W-600W
400-600mm
10mm
XD-QB
300W-600W
400-600mm
13mm

Physical Properties of infrared heateing infrarent

Opalescence
SiO2
Heat Resistance
The opaque quartz tube transmitting rate in500nm is less than 10%. With more than 70% far infrared transmission
The purity of SiO2>99.9%
Keep under 900° C for 15 minutes, then put into20° C water 3 times, no crack.

Opaque/Milky quartz glass property
Density
1.92*103kg/m3
Compression Strength
>1.0*109Pa(N/m2)
Coefficient of Thermal Expansion
5.4*10-7cm/cm° C
Thermal Conductivity
LOW
Specific Heat
640J/kg° C
Softening point
1600° C
Annealing point
1050° C

Opaque/Milky quartz tube dimension tolerance
Dimension
OD
Wall
Length
5-8
± 0.20
± 0.10
± 1.0
8-12
± 0.20
± 0.10
± 1.0
12-15
± 0.20
± 0.10
± 1.0
15-20
± 0.25
± 0.10
± 1.0
20-30
± 0.30
± 0.15
± 1.0
30-60
± 0.50
± 0.30
± 3.0
The advantage of infrared heateing infrarentas bellow:
1. Infrared radiation in instant heating and the transmissivity of infrared is arrived to 70-75%
2. Far infrared heating transmission, in medium wave, wave length range of 2.2-3.5 micron
3. Health care & environmental protection
4. Can be work in vertically and horizontally
5. With highly heat stability and high temperature resistance
6. Max working temperature is 1300 ° C; Long term used under 1200° C
7.6000h service life, with SGS, RoHs approved
8. Widely used in infrared heater, cooking, oven, stove, baker, painting dryer, drying apparatus, dyeing, print, printer, copy machine, projector, sterilizing device, medical equipment
NEWS: All the information for reference only, all kinds of shape can be made by customers' request of electric infrared heating tube for oven

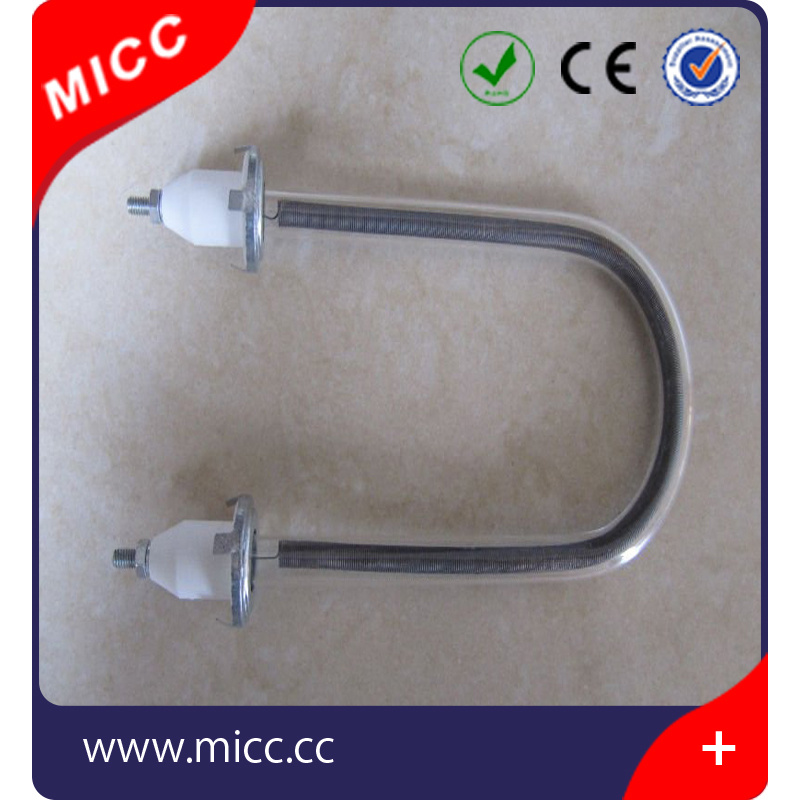

Pictures for infrared heating tube for oven
