Input DC12-24V 44keys LED Controller

Prod Model:	LYD-RFL44
Static Power Consumption:	<1W
Connection Mode:	Common Anode
Output:	3 Channels
Net Weight:	133G
Gross Weight:	166g
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	Button Battery
Voltage:	DC5V, 12V~24voptional

Product Description

Basic Info

place of origin:	Shenzhen,China
output:	3 channel
output current:	<4A/CH  or  <8A/CH (optional)
Static power consumption:	<1w
Connection mode:	Common anode
External dimension:	130*65*25mm
Output Power:	4A -5V:<60W,  12V:<144W,  24V:<288W
Brand name:	louita

Product Description
This RF 44-key aluminum wireless RF controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless RF remote control. In addition, customers can adjust their light color as they like.

Working temperature:-20-60ºC
Supply voltage:DC12~24V
0utput:3 channels
Connecting mode:common anode

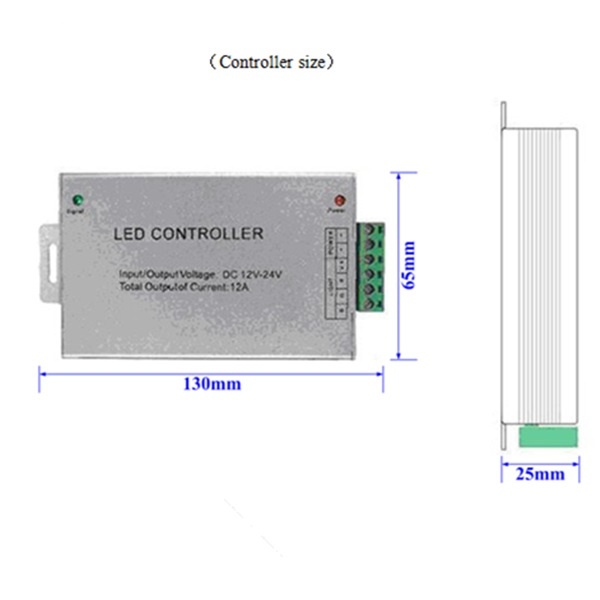

Controller size:L130×W65×H25mm
Package size:L135×W80×H54mm
New weight:180g
Gross weight:210g
Static power consumption:<1W
Output current:<4A/ch  or <8A/ch (optional)
Output power: 12V/4A < 144W;12V/8A< 288W;
               24V/4A< 288W;24V/8A< 576W;


Direction for use:

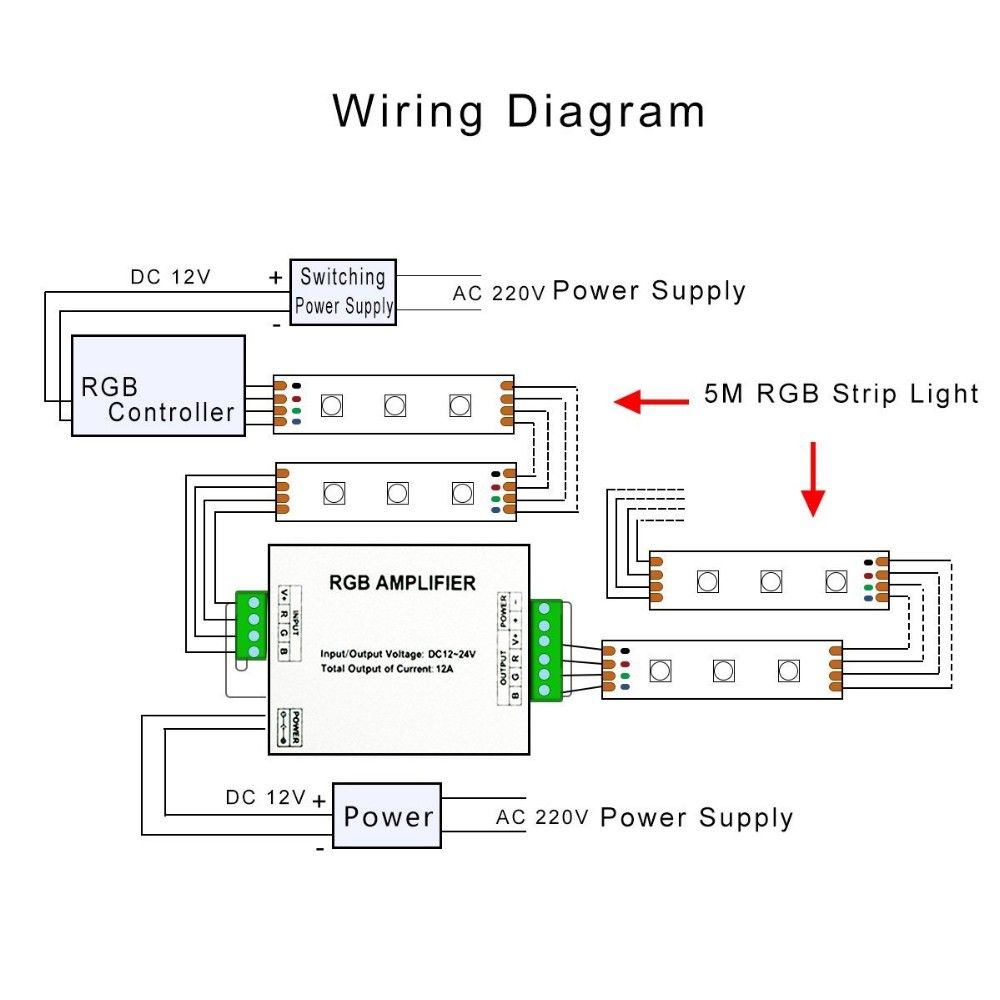

Connect the load wire at first,following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
with the power lost memory function.
Used the 44 key wireless RF remote control, the key function are as follows:


Brightness rise	Brightness fall	Pause/Run	On/Off
Static red	Static green	Static blue	Static white
Static orange	Static light green	Static dark blue	Static  milk white
Static dark yellow	Static cyan	Static lyons blue	Static white pink
Static yellow	Static light blue	Static purple	Static green-white
Static light yellow	Static sky blue	Static brown	Static blue white
Increase red	Increase green	Increase blue	Speed up
Decrease red	Decrease green	Decrease blue	Speed-down
DIY key1	DIY key2	DIY key3	Automatic change
DIY key4	DIY key5	DIY key6	Flash on and off
3 color jumpy change	7 color jumpy change	3 color fade change	7 color fade change



Remarks:About DIY key, when it's pressed first time, will enter the DIY color mode, you can adjust the color per the 6 keys at above to increase or decrease the R/G/B color by yourself freely(if other key is pressed this time,will jump out from DIY color mode). And you can save the color which you have adjusted by pressing the DIY key once again. When next time this key is pressed, it will show the color you saved last time.

There are 6 DIY keys, so you can save 6 colors you like. They are all Independent, have no effect each other. For example: if you press DIY key1 first, and then press DIY key2, DIY key1 will be invalid, until DIY key2 is pressed once again, current color will be saved.
