Insulated Fasten Clamp Insulation Piercing Tap Connector PT Series

Name: Insulated Fasten Clamp Insulation Piercing Tap Connector PT Series
Brand: all-electronics-online.com
SKU: 715834552
Availability: InStock
Rating: 4.3 (113 reviews)

Price:	US $ 0.5-7/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PT
Structure:	Suspension Clamp
Standard Or Nonstandard:	Standard, Standard
OEM:	Accept
Sample:	Free
Material:	H.D.G Steel, UV Resistant Elastomer
Application:	Heavy Duty
Gender:	Other

Product Description

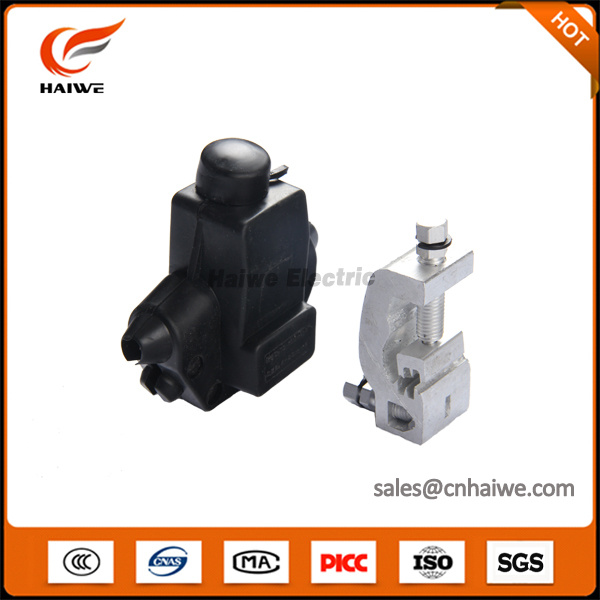

Insulated Fasten clamp Insulation piercing tap connector PT series

Product Description
Product property:

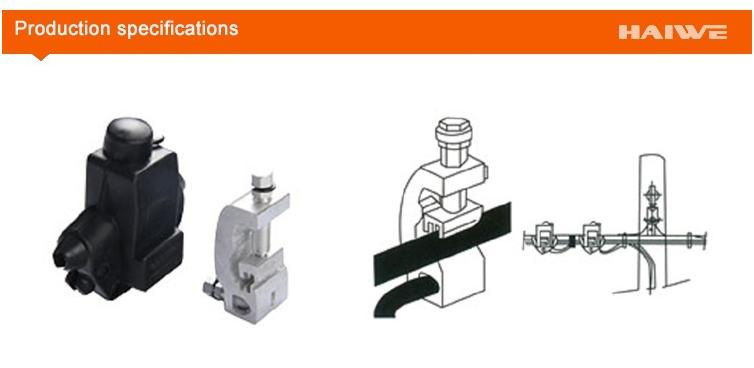

A broad usage in the low voltage insulation lines, leading the branch connection to the main conductor. T-connection of low voltage insulation wire service and cable branch connection for building distribution system. The material for the inside body is high strength aluminum alloy, and the insulation cover is used(PVC). The connectors with specially designed contact teeth, are suitable for the connection of aluminum. Put the main conductor and branch conductor parallel into the teeth grooves of the clamp, tighten the bolts, pierce the insulation of two conductors to make the conductor connect.

Features:
The insulation cover of function as waterproof and sealing perfectly. At the breaking force of the conductor, the connector will not be distorted and broken. At the rated current and short circuit, rising temperature of the connector should be less than the connecting conductor.

Material:
High strength aluminum alloy, anti-UV plastic

Type	Main Conductor(mm²)	Tap Conductor(mm²)
PT1 25/25	16-25	4-25
PT1 70/25	35-70	6-25
PT2 70/70	35-70	35-70
PT1 95/50	35-95	4-50
PT1 150/50	30-150	4-50
PT2 150/50	70-150	4-50

FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.

2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?
A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.

4. Package information
A:For inner box and master carton are made as per international standards,and we can make special designed for you if need.And if necessary,will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box,about 1000kg per pallet

5.How long to make a sample?Is it free?
A:7 days depending on the sample's complexity.Normally,our sample is free

6.How to contact us?
A:Send your inquiry details in the below,Click "send" now!
