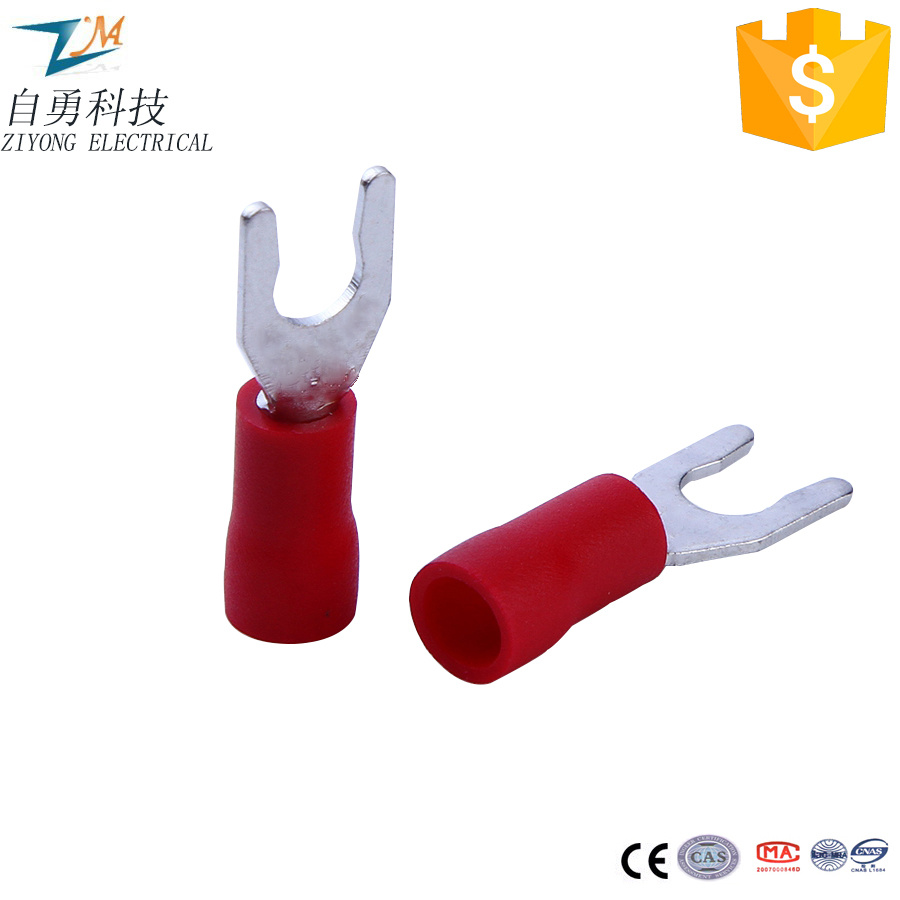

Insulated Flange Spade Terminal
| Price: |
US $ 0.24/Piece |
| Trade Terms: |
FOB |
| Min Order: |
3000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
FSV series |
| Markets: |
North America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Color: |
Red, Blue, Black, Yellow |
| Operation Temperature: |
-55° C-150° C |
| Material: |
Copper |
| Application: |
Conduct Electricity |
| Type: |
Fork-Type Terminals |
| Shape: |
Fork |
| Certification: |
Ce |
| Brand: |
Ziyong |
Product Description

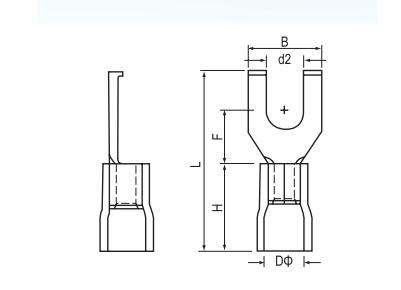

Cable terminal is a kind of accessory for electrical connections, which can be crimped on electrical equipment without thermal treatment. Our company, Ziyong Technology Co., Ltd, supplies a wide range of premium quality terminals to satisfy different demands. And Our products are designed, manufactured and tested as per CE and GB standards for good quality.Color: Red, Blue, Black, YellowMaterial:copper, purity≥99.9%Surface:TinDrawing
Basic Data | Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 ) Imax = 19A Material:Copper Thickness of Material:0.75mm |
| ITEMNO | Dimension (mm) | color |
| USABOLTNO | BOLT dia. d2(mm) | B | L | F | H | DΦ color |
| FSV 1.25 - 3.5 | #6 | 3.7 | 7.5 | 19 | 5.1 | 10.0 | 4.3 red | red |
| FSV 1.25 - 4 | #8 | 4.3 | 7.5 | 19 | 5.1 |
| FSV 1.25 - 5 | #10 | 5.3 | 7.5 | 19 | 5.1 |
| Section of lead:1.5 - 2.5 mm² (USA Spec 16 - 14) Imax = 27A Material:Copper Thickness of Material:0.8mm |
| ITEMNO | Dimension (mm) | color |
| USABOLTNO | BOLT dia. d2(mm) | B | L | F | H | DΦ color |
| FSV 2 - 3.5 | #6 | 3.7 | 7.5 | 2.37 | 5.2 | 10.0 | 4.9 blue | blue |
| FSV 2 - 4 | #8 | 4.3 | 7.5 | 23.7 | 5.2 |
| FSV 2 - 5 | #10 | 5.3 | 7.5 | 23.7 | 5.2 |
| Section of lead:4 - 6 mm² (USA Spec 12 - 10) Imax = 48A Material:Copper Thickness of Material:1.0mm |
| ITEMNO | Dimension (mm) | color |
| USABOLTNO | BOLT dia. d2(mm) | B | L | F | H | DΦ |
| FSV 5.5 - 3.5 | #6 | 3.7 | 8.5 | 25.5 | 7.5 | 13.0 | 6.7 | yellow |
| FSV 5.5 - 4 | #8 | 4.3 | 8.5 | 25.5 | 7.5 |
| FSV 5.5 - 5 | #10 | 5.3 | 8.5 | 25.5 | 7.5 |
Features(1). Wide application range: every type of conductor and material.
(2). Compact design: require little installation space.
(3). Flexible design: variously shaped ends to adapt to all kinds of connecting conditions
(4). Excellent quality: made of premium copper and material for longer lifespan, better performance, good electrical conductance, and electrochemical corrosion resistance. ServiceChoose our products! You'll get1) Good quality guarantee (2 years)2) Factory direct prices3) On time delivery4) Free sample5) Professional technology support Strict quality controls have been taken to ensure that you'll get reliable products.a. Material checks before production .b. Random inspection during production .c. Inspection before the shipment.Our products fully comply with well recognized standards such as IEC, BS, ANSI.
FAQ:1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.2 Q: I can't find the product on your catalog, can you make this product for me?A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements. 3 Q: What's your payment term?A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.

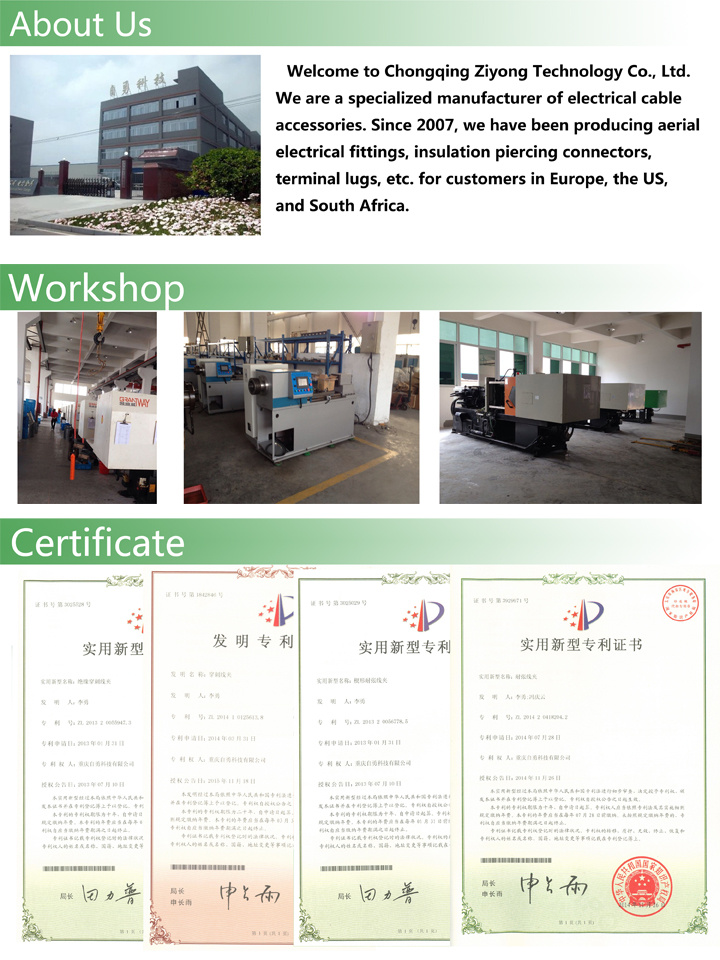

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.
Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.
We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
