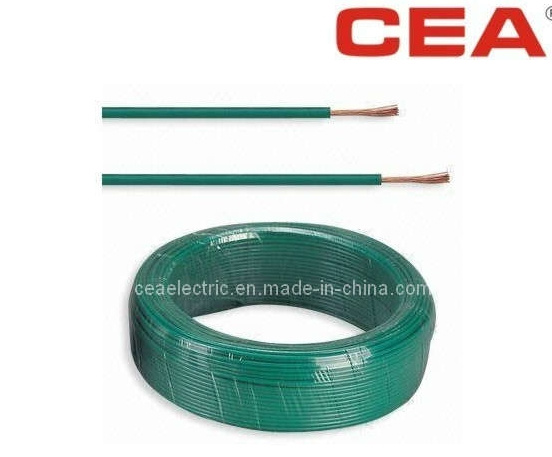

Insulated Flexible Wire (H05V-K)

Name: Insulated Flexible Wire (H05V-K)
Brand: all-electronics-online.com
SKU: 690042875
Availability: InStock
Rating: 4.6 (136 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	H05V-K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulation Material:	PVC
Conductor Type:	Stranded
Conductor Material:	Copper
Type:	Insulated
Application:	for Domestic Housing, Power Cord

Product Description

H05V-K PVC internal equipment wiring cable

Conductors: Plain annealed flexible copper
Sheath/Jacket: PVC (Polyvinyl chloride)
Colour: Black, blue, brown, green, green/yellow, grey, orange, pink, violet, white & yellow
Voltage: 300/500V
Operating temperature: Maximum 70° C

Standards: BS6500: VDE0281; 60227IEC06
Electric Cables. Flexible cords rated up to 300/500V, for use with appliances and equipment intended for domestic, office and similar environments (H05V-K)
Applications: Internal equipment wire. Also used in instrumentation panels of power switchgear

Nominal section mm 2	Number/diameter of core	Maximum outer diameter	Reference weight	Conductor resistance at 20° c
0.3	16/0.15	2.3	6.2	69.2
0.4	23/0.15	2.5	8.0	48.2
0.5	16/0.20	2.6	8.7	39.0
0.75	24/0.20	2.8	12.0	26.0
1	32/0.20	3.0	14.50	19.5

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
