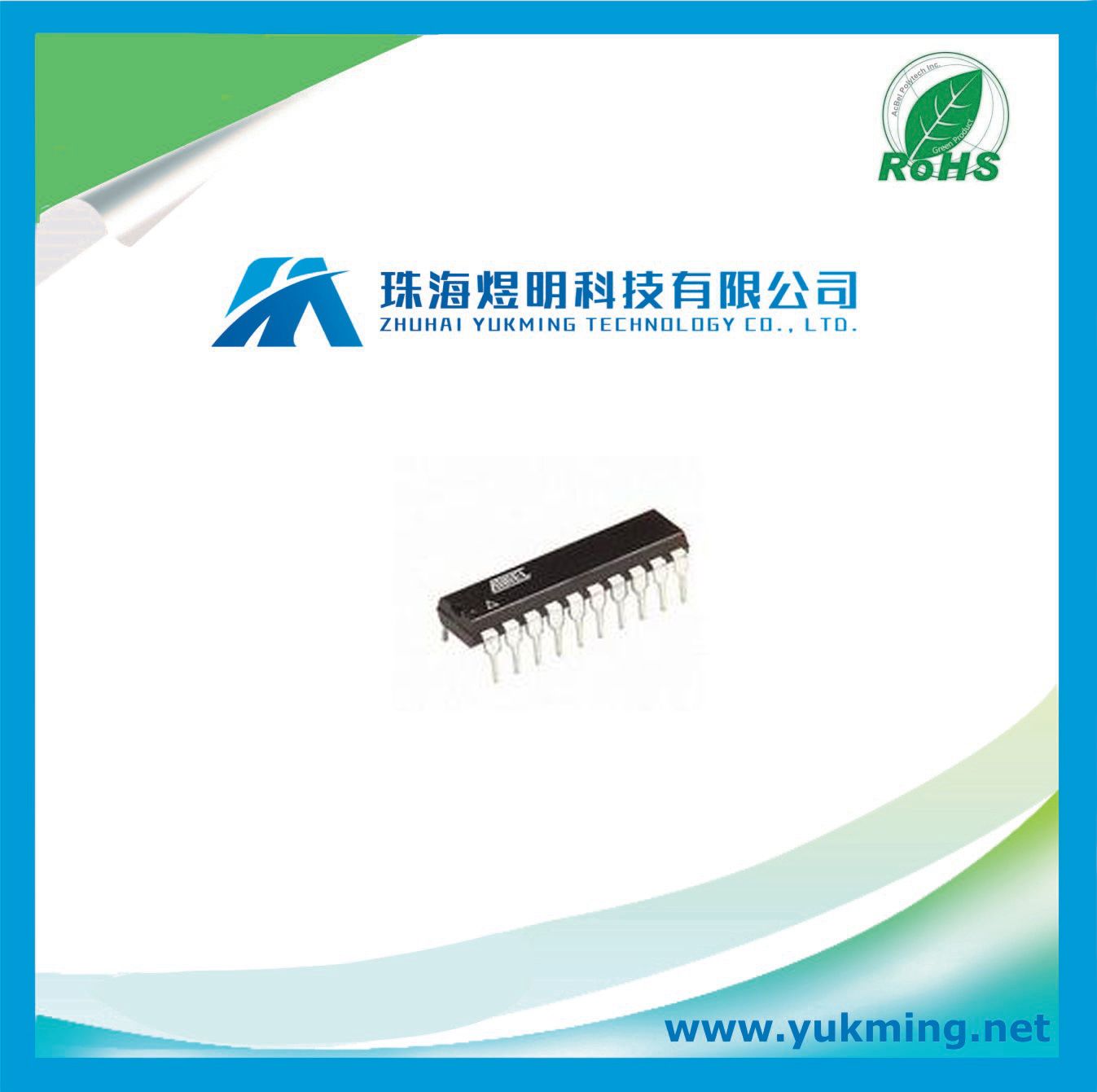

Integrated Circuit At89c2051-24PU of 8-Bit Microcontroller IC

Name: Integrated Circuit At89c2051-24PU of 8-Bit Microcontroller IC
Brand: all-electronics-online.com
SKU: 782043965
Availability: InStock
Rating: 4.7 (41 reviews)

Price:	US $ 0.58/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AT89C2051-24PU
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Manufacturer: ATMEL
Min working temp:-40ºC
Max working temp:85ºC
Max frequency:24MHz
Typical working supply current:4-6V
Package:PDIP20

Features
• Compatible with MCS®-51Products
• 2K Bytes of Reprogrammable Flash Memory - Endurance: 10,000 Write/Erase Cycles
• 2.7V to 6V Operating Range
• Fully Static Operation: 0 Hz to 24 MHz
• Two-level Program Memory Lock
• 128 x 8-bit Internal RAM
• 15 Programmable I/O Lines
• Two 16-bit Timer/Counters
• Six Interrupt Sources
• Programmable Serial UART Channel
• Direct LED Drive Outputs
• On-chip Analog Comparator
• Low-power Idle and Power-down Modes
• Green (Pb/Halide-free) Packaging Option

Specifications
EU RoHS Compliant
Family Name AT89
Data Bus Width (bit) 8
Instruction Set Architecture CISC
Maximum Clock Rate (MHz) 24
Maximum CPU Frequency (MHz) 24
Device Core 8051
Program Memory Type Flash
Program Memory Size 2KB
RAM Size 128B
Number of Programmable I/Os 15
Core Architecture 8051
Programmability Yes
Number of Timers 2
Interface Type UART
CAN 0
I2C 0
SPI 0
Ethernet 0
UART 1
USART 0
USB 0
I2S 0
Maximum Operating Supply Voltage (V) 6
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Minimum Operating Supply Voltage (V) 4
Typical Operating Supply Voltage (V) 5
CECC Qualified No
Mounting Through Hole

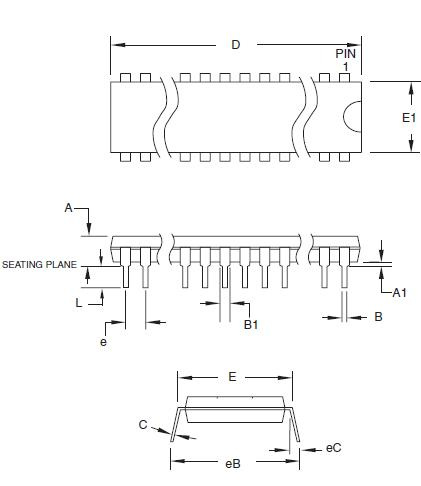

Package Height (mm) 5.33(Max) - 0.38(Min)
Package Length (mm) 26.92(Max)
Package Width (mm) 7.11(Max)
PCB changed 20
Standard Package Name DIP
Supplier Package PDIP
Pin Count 20
Lead Shape Through Hole
