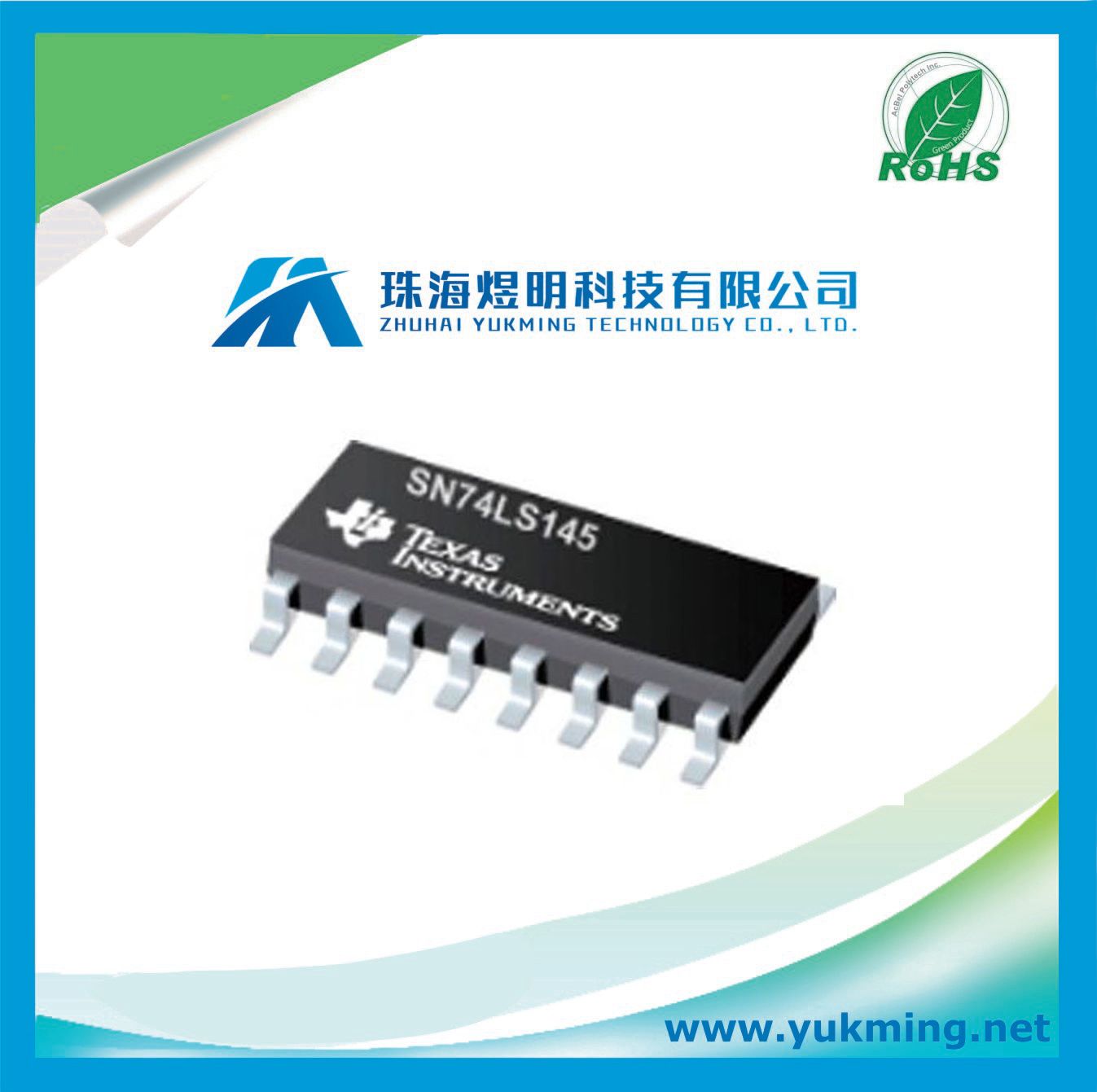

Integrated Circuit Encoder Decoder IC Sn74ls145D Texas Instruments

Name: Integrated Circuit Encoder Decoder IC Sn74ls145D Texas Instruments
Brand: all-electronics-online.com
SKU: 796604465
Availability: InStock
Rating: 5 (28 reviews)

Price:	US $ 0.3131/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SN74LS145D

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Description
The SN54 /74LS145, 1-of-10 Decoder/Driver, is designed to accept BCD
inputs and provide appropriate outputs to drive 10-digit incandescent
displays. All outputs remain off for all invalid binary input conditions. It is
designed for use as indicator/relay drivers or as an open-collector logic circuit
driver. Each of the high breakdown output transistors will sink up to 80 mA of
current. Typical power dissipation is 35 mW. This device is fully compatible
with all TTL families.
• Low Power Version of 54/74145
• Input Clamp Diodes Limit High Speed Termination Effects

Features
• Full Decoding of Input Logic
• SN54145, SN74145, and SN74LS145 Have
  80-mS Sink-current Capability
• All Outputs Are Off for Invalid
  BCD Input Conditions
• Low Power Dissipation of 'LS145 . . .
  35 mW Typical

Category	Integrated Circuits (ICs)
Family	Logic - Signal Switches, Multiplexers, Decoders
Manufacturer	Texas Instruments
Series	74LS
Packaging	Tube
Type	Decoder
Circuit	1 x 4:10
Independent Circuits	1
Current - Output High, Low	-, 80mA
Voltage Supply Source	Single Supply
Voltage - Supply	4.75 V ~ 5.25 V
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount

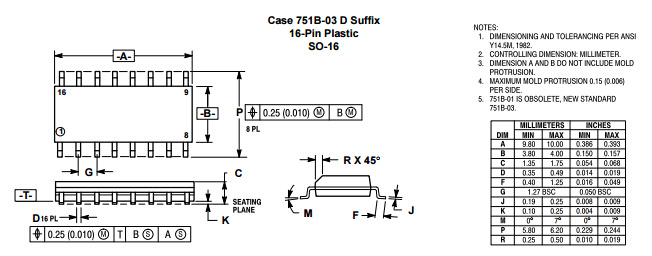

Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
