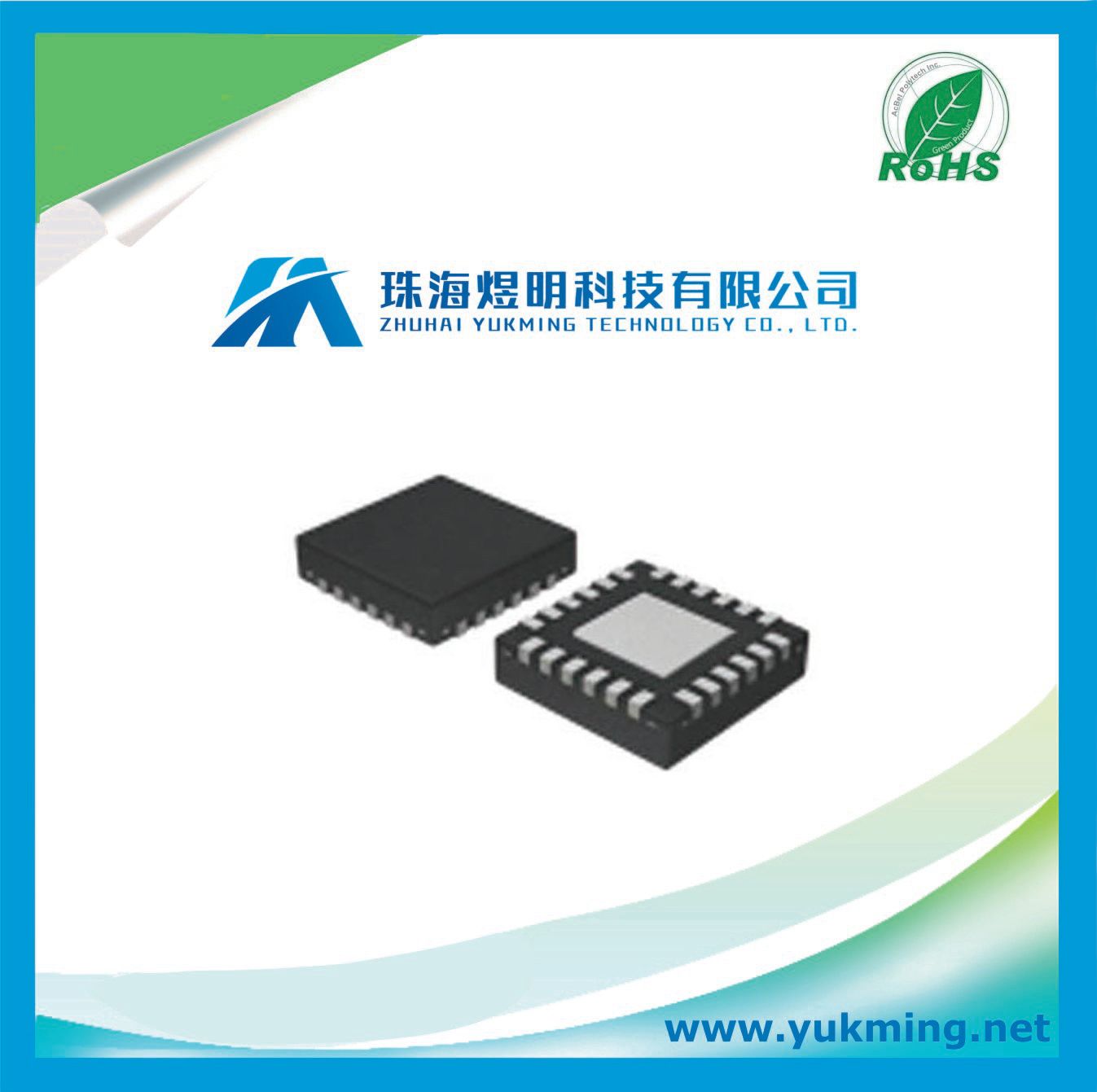

Integrated Circuit LAN8720A of Rmii 10/100 Ethernet Transceiver IC

Name: Integrated Circuit LAN8720A of Rmii 10/100 Ethernet Transceiver IC
Brand: all-electronics-online.com
SKU: 797121145
Availability: InStock
Rating: 4.5 (72 reviews)

Price:	US $ 0.79/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	LAN8720A

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Highlights
Single-Chip Ethernet Physical Layer Transceiver
(PHY)
Comprehensive flexPWR® Technology
- Flexible Power Management Architecture
- LVCMOS Variable I/O voltage range: +1.6V to +3.6V
- Integrated 1.2V regulator
HP Auto-MDIX support
Miniature 24-pin QFN lead-free RoHS compliant
package (4 x 4 x 0.85mm height).

Target Applications
Set-Top Boxes
Networked Printers and Servers
Test Instrumentation
LAN on Motherboard
Embedded Telecom Applications
Video Record/Playback Systems
Cable Modems/Routers
DSL Modems/Routers
Digital Video Recorders
IP and Video Phones
Wireless Access Points
Digital Televisions
Digital Media Adaptors/Servers
Gaming Consoles
POE Applications (Refer to SMSC Application Note 17.18)

Specifications
EU RoHS Compliant
Number of Channels per Chip 1
Maximum Data Rate 100Mbps
JTAG Support No
Standard Supported 10BASE-T|100BASE-TX|IEEE 802.3
Typical Data Rate (Mbps) 10/100
Integrated CDR No
Power Supply Type Analog|Digital
Minimum Operating Supply Voltage (V) 1.14|2.25|3
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 85
Ethernet Interface Type MII/RMII
Ethernet Speed 10Mbps/100Mbps
Maximum Operating Supply Voltage (V) 1.26|3.6
Typical Operating Supply Voltage (V) 2.5|3.3
Packaging Tray
Mounting Surface Mount
Package Height (mm) 0.83
Package Length (mm) 4
Package Width (mm) 4
PCB changed 24
Standard Package Name QFN
Supplier Package QFN EP
Pin Count 24
Lead Shape No Lead
