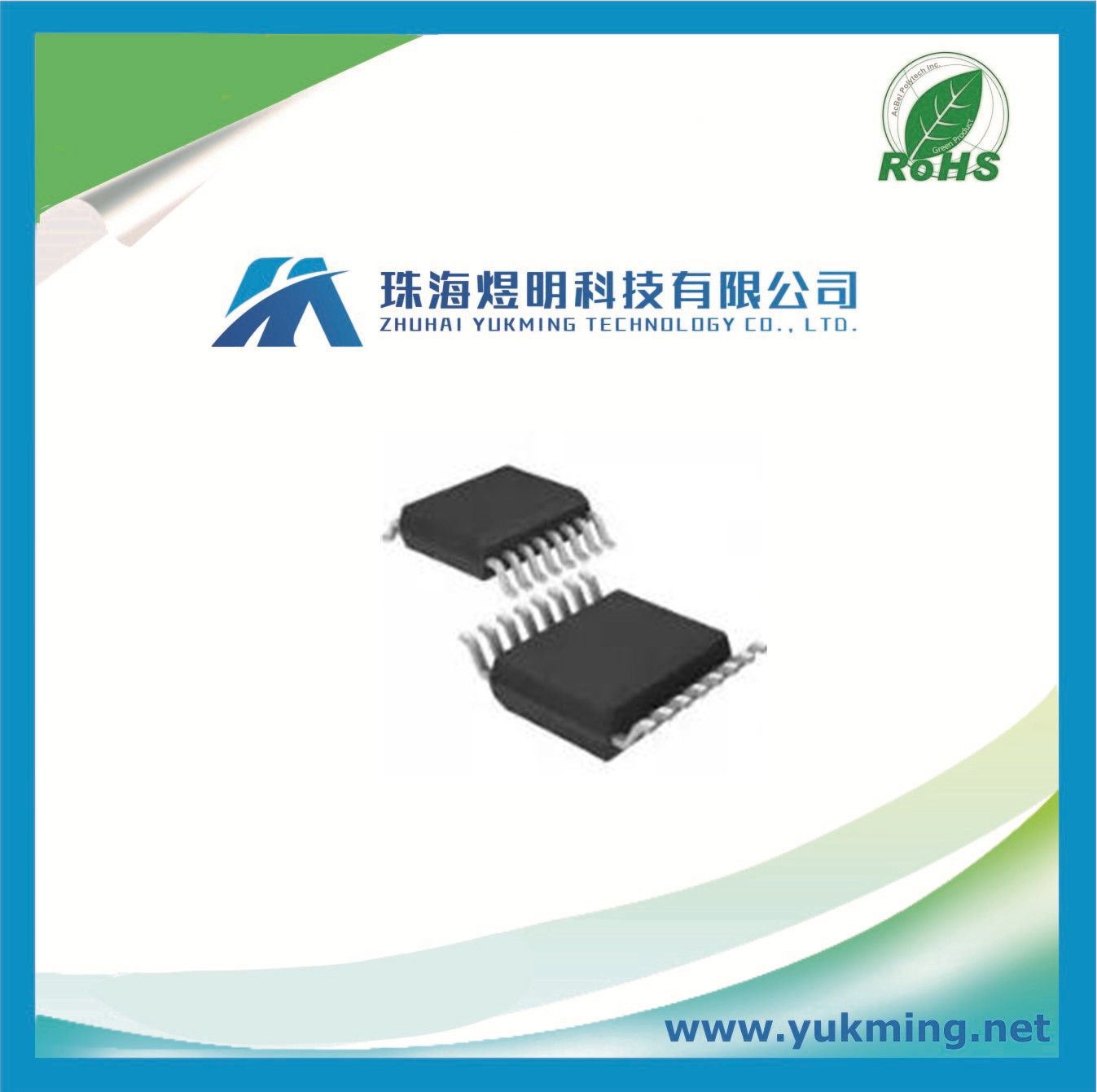

Integrated Circuit Max221cae+ of Single Communications Interface IC

Name: Integrated Circuit Max221cae+ of Single Communications Interface IC
Brand: all-electronics-online.com
SKU: 806387445
Availability: InStock
Rating: 4.3 (140 reviews)

Price:	US $ 2.51/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MAX221CAE+
Protocol:	RS232
Number Of Drivers/Receivers:	1/1
Duplex:	Full
Receiver Hysteresis:	500mv
Data Rate:	250kpbs
Voltage - Supply:	4.5 to 5.5V

Product Description

Category	Integrated Circuits (ICs)
Family	Interface - Drivers, Receivers, Transceivers
Manufacturer	Maxim Integrated
Packaging	Tube
Part Status	Active
Type	Transceiver
Protocol	RS232
Number of Drivers/Receivers	1/1
Duplex	Full
Receiver Hysteresis	500mV
Data Rate	250kbps
Voltage - Supply	4.5 V ~ 5.5 V
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount
Package / Case	16-SSOP (0.209", 5.30mm Width)
Supplier Device Package	16-SSOP

General Description
The MAX221 is a +5V-powered, single transmit/receiveRS-232 and V.28 communications interface with auto-matic shutdown/wake-up features and high data rate capabilities.The MAX221 achieves a low 1µA supply current with Maxim's revolutionary Auto Shutdown™ feature.AutoShutdown saves power without changes to the existing BIOS or operating system by entering low-power shutdown mode when the RS-232 cable is dis-connected, or when the transmitter of the connected peripheral is off. The MAX221 wakes up and drives the INVALIDpin high when an active RS-232 cable is con-nected, signaling the host that a peripheral is connect-ed to the communications port.The MAX221 is available in a 16-pin SSOP package as well as a 16-pin TSSOP that uses 50% less board space than a 16-pin SO. For an equivalent RS-232 transceiver with enhanced ±15kV ESD protection, refer to theMAX221E data sheet.

Applications
Maintenance/Diagnostic Ports
Industrial Systems
Telecommunications
Set-Top Boxes

Features
Single RS-232 Transceiver in a Small 16-Pin
TSSOP Package
1uA Supply Current
AutoShutdown Saves Power Without
Changes to BIOS
Guaranteed 250kbps Data Rate
