Integrated Circuit New and Original Act4060

Name: Integrated Circuit New and Original Act4060
Brand: all-electronics-online.com
SKU: 799706435
Availability: InStock
Rating: 4.5 (71 reviews)

Price:	US $ 0.1-2.0/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ACT4060
Output Current:	2A
Efficiency:	up to 95%
Input Range:	4.75V to 20V
Switching Frequency:	420kHz

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

Wide Input 2A Step Down Converter

GENERAL DESCRIPTION
The ACT4060 is a current-mode step-down DC/DC
converter that generates up to 2A of output current
at 420kHz switching frequency. The device utilizes
Active-Semi's proprietary ISOBCD20 process for
operation with input voltages up to 20V.
Consuming only 8μA in shutdown mode, the
ACT4060 is highly efficient with peak operating efficiency
at 95%. Protection features include cycle-bycycle
current limit, thermal shutdown, and frequency
foldback at short circuit.

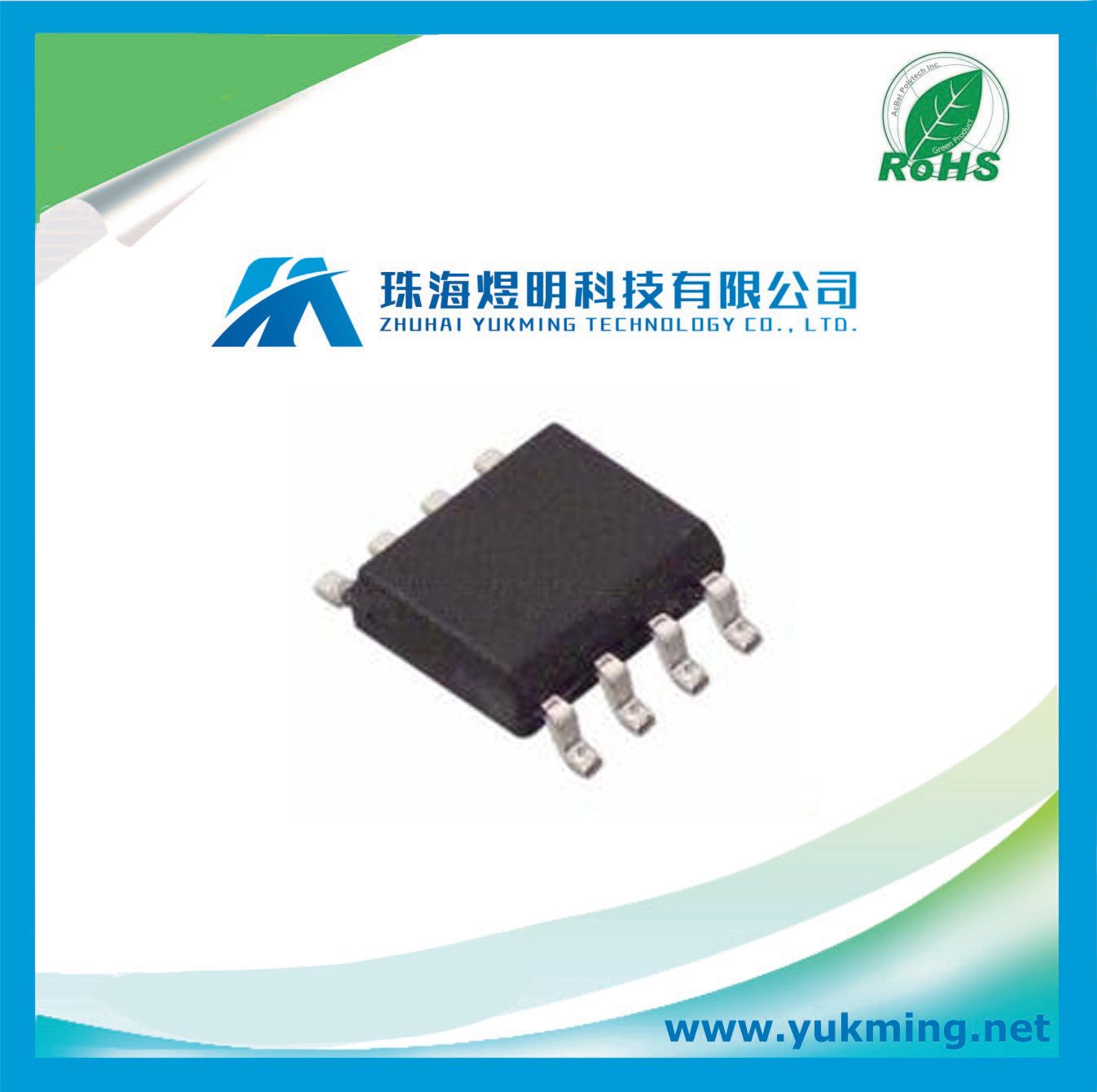

The ACT4060 is available in a SOP-8 package and
requires very few external devices for operation.

FEATURES
· 2A Output Current
· Up to 95% Efficiency
· 4.75V to 20V Input Range
· 8μA Shutdown Supply Current
· 420kHz Switching Frequency
· Adjustable Output Voltage
· Cycle-by-Cycle Current Limit Protection
· Thermal Shutdown Protection
· Frequency FoldBack at Short Circuit
· Stability with Wide Range of Capacitors,
Including Low ESR Ceramic Capacitors
· SOP-8 Package

Applications
· TFT LCD Monitors
· Portable DVDs
· Car-Powered or Battery-Powered Equipments
· Set-Top Boxes
· Telecom Power Supplies
· DSL and Cable Modems and Routers
· Termination Supplies

PARAMETER VALUE UNIT
IN Supply Voltage -0.3 to 25 V
SW Voltage -1 to VIN + 1 V
BS Voltage VSW - 0.3 to VSW + 8 V
EN, FB, COMP Voltage -0.3 to 6 V
Continuous SW Current Internally Limited A
Junction to Ambient Thermal Resistance (θJA) 105 °C/W
Maximum Power Dissipation 0.76 W
Operating Junction Temperature -40 to 150 °C
Storage Temperature -55 to 150 °C
Lead Temperature (Soldering, 10 sec) 300 °C

Any items you need, please send the BOM List to us, we will for sure to supply you not only new and original products but also the best service with our professional team!
