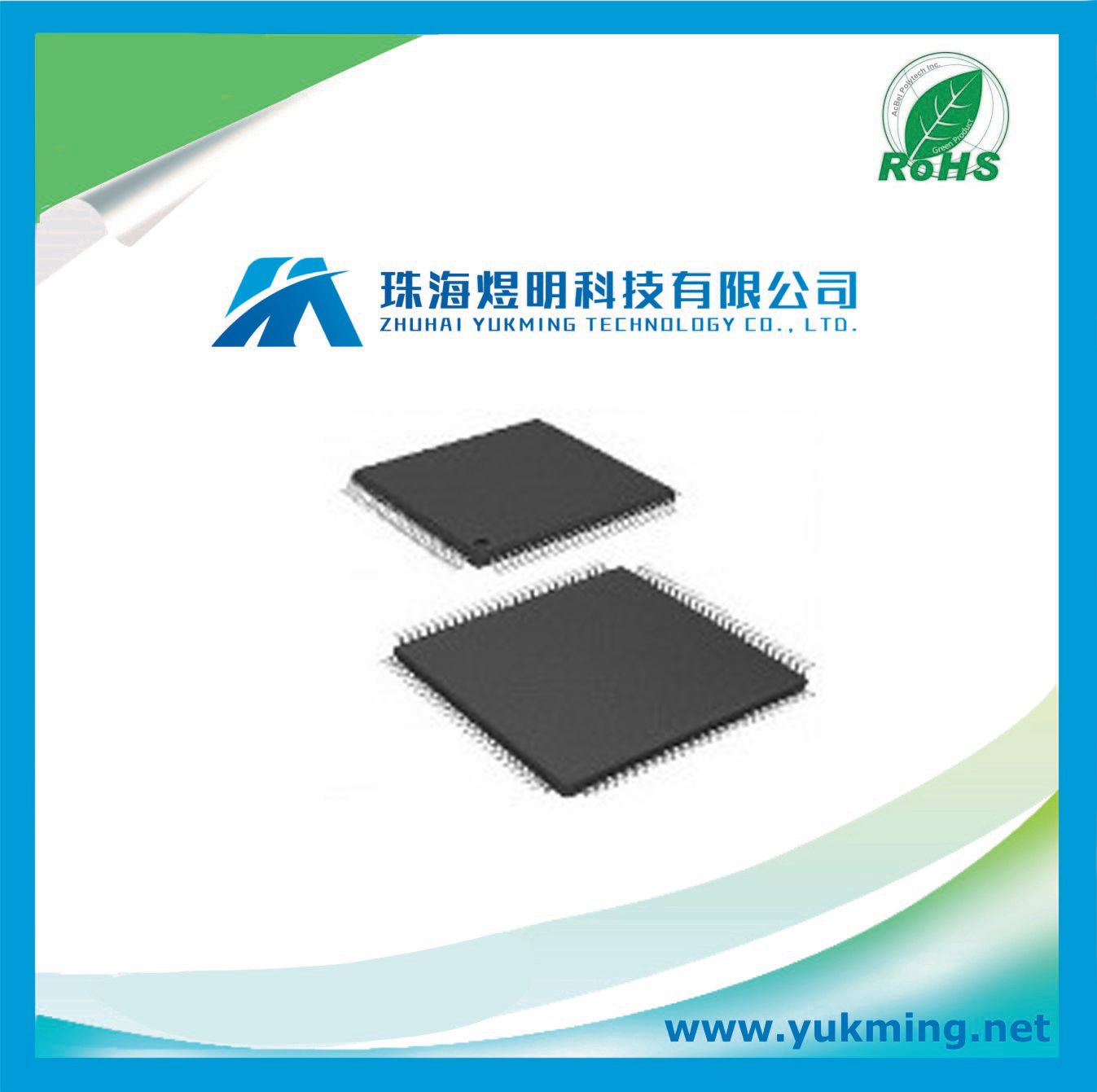

Integrated Circuit New and Original Dspic33fj256gp710-I/PF

Name: Integrated Circuit New and Original Dspic33fj256gp710-I/PF
Brand: all-electronics-online.com
SKU: 799575005
Availability: InStock
Rating: 4.3 (135 reviews)

Price:	US $ 2-6/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DSPIC33FJ256GP710-I/PF
Operation Temperature Range:	- 40 to + 85
Min Operating Supply Voltage:	3V
Family Name:	Dspic33f
Maximum CPU Frequency:	(MHz) 40
Program Memory Size:	256kb
RAM Size:	30kb

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

High-Performance,
16-Bit Digital Signal Controllers

PRODUCT CATEGORY
Microcontroller

DESCRIPTION
MCU 32-bit dsPIC33F dsPIC RISC 256KB Flash 3.3V 100-Pin TQFP Tray

With the DSPIC33FJ256GP710-I/PF microcontroller by Microchip Technology, many functions and tasks can be automated to a developer's desired specifications. This microcontroller has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 40 MHz. This is a 32 bit processor. This device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 3 V, while its maximum is 3.6 V. This device is based on the dsPIC core architecture. Its flash program memory is 256KB. Its ADC resolution is 10/10.

Specifications
EU RoHS Compliant
Family Name dsPIC33F
Data Bus Width (bit) 32
Instruction Set Architecture RISC
Maximum Clock Rate (MHz) 40
Maximum CPU Frequency (MHz) 40
Device Core dsPIC
Program Memory Type Flash
Program Memory Size 256KB
RAM Size 30KB
Number of Programmable I/Os 62
Core Architecture dsPIC
Programmability Yes
Number of Timers 4
Interface Type CAN/SPI/I2S/TWI/USART/USB
CAN 2
I2C 2
SPI 2
Ethernet 0
UART 2
USART 0
USB 0
I2S 0
Maximum Operating Supply Voltage (V) 3.6
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
ADC Channels 8/8
ADC Resolution 10/10
Number of ADCs Dual
Packaging Tray
Minimum Operating Supply Voltage (V) 3
Typical Operating Supply Voltage (V) 3.3
CECC Qualified No
Mounting Surface Mount
Package Height (mm) 1
Package Length (mm) 14
Package Width (mm) 14
PCB changed 100
Standard Package Name QFP
Supplier Package TQFP
Pin Count 100
Lead Shape Gull-wing

Any items you need, please send the BOM List to us, we will for sure to supply you not only new and original products but also the best service with our professional team!

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
