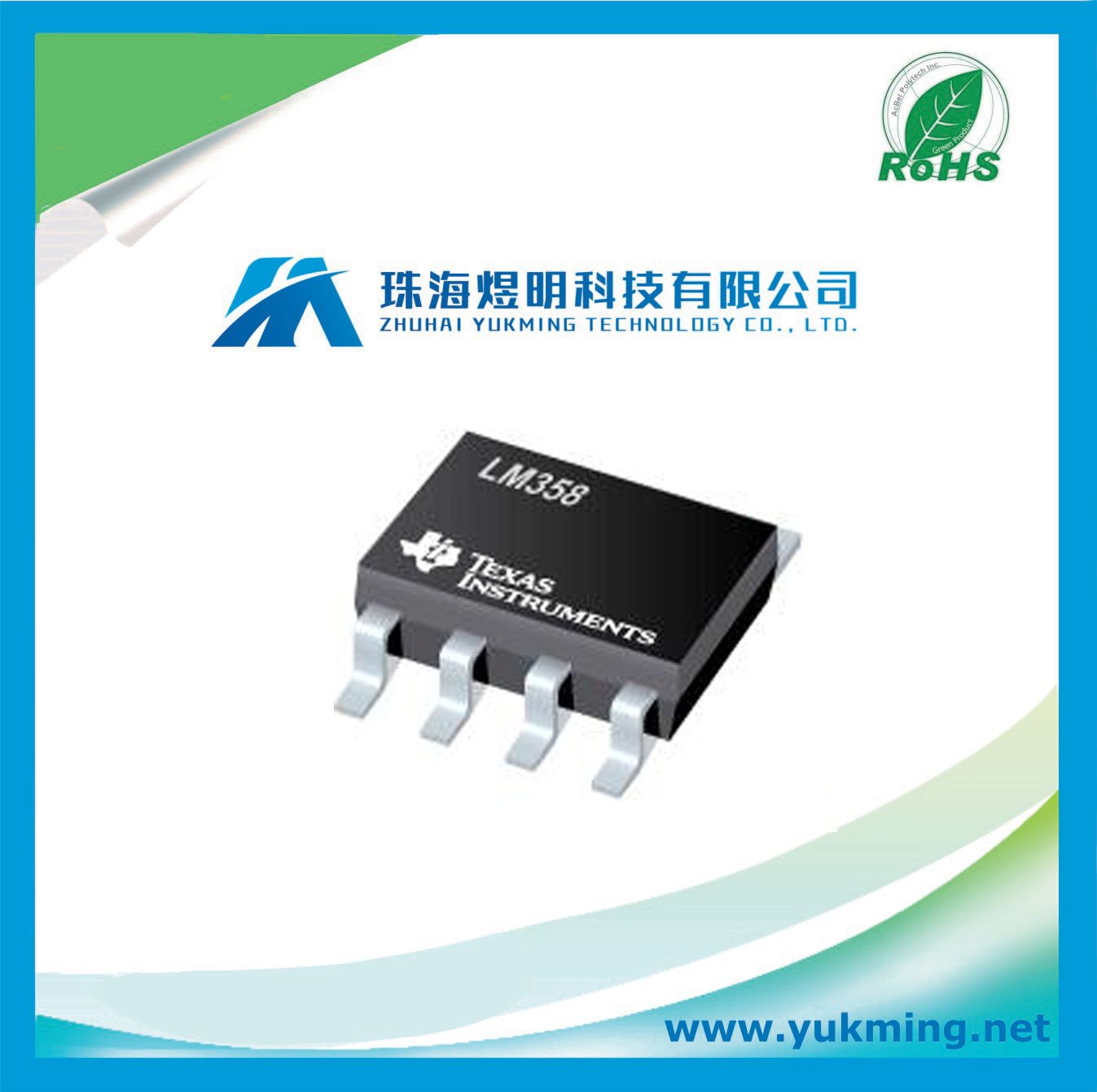

| Prod Model: |
LM358DR |
| Typical Gain Bandwidth Product (MHz): |
0.7 |
| Maximum Input Offset Voltage (Mv): |
7@30V |
| Maximum Input Offset Current (Ua): |
0.05@5V |
| Maximum Input Bias Current (Ua): |
0.25@5V |
| Minimum Operating Temperature (°c): |
0 |
| Maximum Operating Temperature (°c): |
70 |
| Maximum Single Supply Voltage (V): |
32 |
| Maximum Dual Supply Voltage (V): |
+/-16 |
| Typical Slew Rate (V/Us): |
0.3@+/-15V |
Product Description
Hello, Thank you for your visiting!
We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.Come to us, and we will try the best to support you by controlling our cost as possible as we can. | Lead time | Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery. |
| Guarantee | 100% original assembled new ; 30 days warranty |
| Payment | Hang Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express as you require |
MANUFACTURERTexas Instruments PRODUCT CATEGORYOP Amp DESCRIPTIONOP Amp Dual GP Amplify voltage signals in your electronic circuit design by implementing this general purpose amplifier LM358DR OP amp from Texas Instruments. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±1.5 V and maximum of ±16 V. This op amp has a temperature range of 0 °C to 70 °C. This device uses one or two power supplies. This device utilizes bipolar technology. It has 2 channels per chip. SpecificationsEU RoHS Compliant Manufacturer Type High Gain AmplifierType General Purpose AmplifierNumber of Channels per Chip 2Technology BipolarRail to Rail NoTypical Gain Bandwidth Product (MHz) 0.7Maximum Input Offset Voltage (mV) 7@30VMaximum Input Offset Current (uA) 0.05@5VMaximum Input Bias Current (uA) 0.25@5VMinimum Operating Temperature (°C) 0Maximum Operating Temperature (°C) 70Packaging Tape and ReelMaximum Single Supply Voltage (V) 32Maximum Dual Supply Voltage (V) ±16Typical Slew Rate (V/us) 0.3@±15VShut Down Support NoMinimum Single Supply Voltage (V) 3Typical Single Supply Voltage (V) 5|9|12|15|18|24|28Minimum Dual Supply Voltage (V) ±1.5Typical Dual Supply Voltage (V) ±3|±5|±9|±12|±15Minimum CMRR (dB) 65Typical Voltage Gain (dB) 100Power Supply Type Single|DualTemperature Grade CommercialMounting Surface MountPackage Height (mm) 1.5(Max)Package Length (mm) 5(Max)Package Width (mm) 4(Max)PCB changed 8Standard Package Name SOPSupplier Package SOICPin Count 8Lead Shape Gull-wing FeaturesWide Supply RangesSingle Supply: 3 V to 32 V (26 V for LM2904)Dual Supplies: ±1.5 V to ±16 V (±13 V for LM2904)Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA TypicalWide Unity Gain Bandwidth: 0.7 MHzCommon-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near GroundLow Input Bias and Offset ParametersInput Offset Voltage: 3 mV Typical A Versions: 2 mV TypicalInput Offset Current: 2 nA TypicalInput Bias Current: 20 nA Typical A Versions: 15 nA TypicalDifferential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V (26 V for LM2904)Open-Loop Differential Voltage Gain: 100 dB TypicalInternal Frequency CompensationOn Products Compliant to MIL-PRF-38535, All Parameters are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
