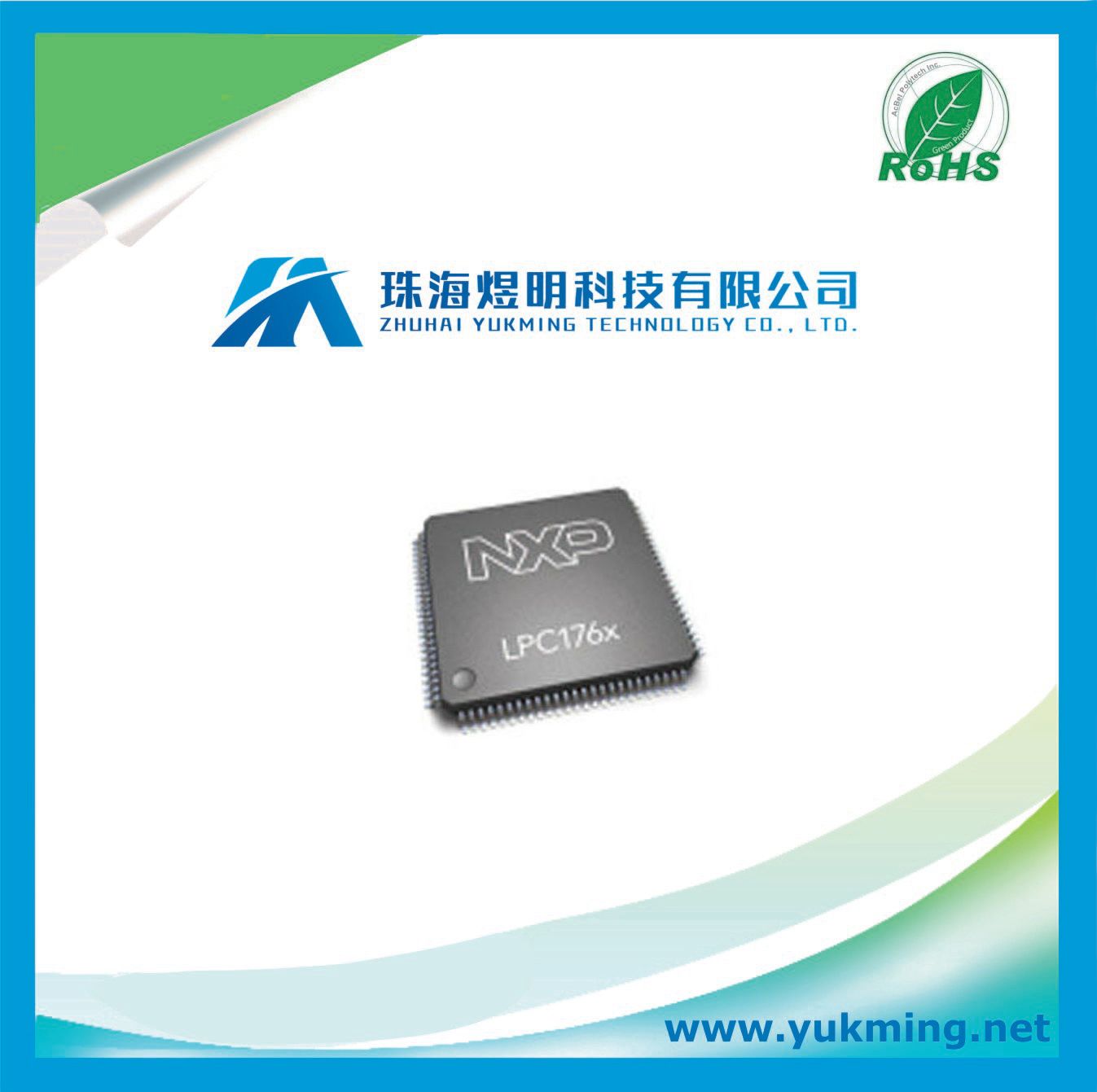

Integrated Circuit New and Original Lpc1769fbd100

Name: Integrated Circuit New and Original Lpc1769fbd100
Brand: all-electronics-online.com
SKU: 797125385
Availability: InStock
Rating: 4.7 (108 reviews)

Price:	US $ 5-10/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPC1769FBD100
Family Name:	Lpc1700
Data Bus Width (Bit):	32
Maximum Clock Rate (MHz):	120
Maximum CPU Frequency (MHz):	120
Program Memory Size:	512kb
RAM Size:	64kb
Number Of Programmable I/OS:	70
Maximum Operating Supply Voltage (V):	3.6
Operating Temperature Range:	-40 to 85 Degree C
Minimum Operating Supply Voltage (V):	2.4

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

MANUFACTURER
NXP Semiconductors

PRODUCT CATEGORY
Microcontroller

DESCRIPTION
MCU 32-bit LPC1700 ARM Cortex M3 RISC 512KB Flash 3.3V 100-Pin LQFP Tray

Automate any process or system using this LPC1769FBD100,551 microcontroller from NXP Semiconductors. This microcontroller has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 120 MHz. Its flash program memory is 512KB. This is a 32 bit processor. Its ADC resolution is 12. This device is based on the ARM Cortex M3 core architecture. This device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.4 V, while its maximum is 3.6 V.

Applications
• eMetering
• Lighting
• Industrial networking
• Alarm systems
• White goods
• Motor control

Specifications
EU RoHS Compliant
Family Name LPC1700
Data Bus Width (bit) 32
Instruction Set Architecture RISC
Maximum Clock Rate (MHz) 120
Maximum CPU Frequency (MHz) 120
Device Core ARM Cortex M3
Program Memory Type Flash
Program Memory Size 512KB
RAM Size 64KB
Number of Programmable I/Os 70
Core Architecture ARM
Programmability Yes
Number of Timers 4
Interface Type CAN/Ethernet/I2C/I2S/SPI/SSP/UART/USB
CAN 2
I2C 3
SPI 1
Ethernet 1
UART 4
USART 0
USB 1
I2S 1
Maximum Operating Supply Voltage (V) 3.6
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
ADC Channels 8
ADC Resolution 12
Number of ADCs Single
Number of DACs Single
Packaging Tray
Minimum Operating Supply Voltage (V) 2.4
Typical Operating Supply Voltage (V) 3.3
CECC Qualified No
Mounting Surface Mount
Package Height (mm) 1.45(Max)
Package Length (mm) 14.1(Max)
Package Width (mm) 14.1(Max)
PCB changed 100
Standard Package Name QFP
Supplier Package LQFP
Pin Count 100
Lead Shape Gull-wing
