| Prod Model: |
S29GL256P10TFI010 |
| Density (Bit): |
256m |
| Cell Type: |
Nor |
| Interface Type: |
Parallel |
| Maximum Operating Current (Ma): |
110 |
| Programming Voltage (V): |
2.7 to 3.6|11.5 to 12.5 |
| Maximum Access Time (Ns): |
100 |
| Programmability: |
Yes |
| Boot Block: |
No |
Product Description
Hello, Thank you for your visiting!
We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.Come to us, and we will try the best to support you by controlling our cost as possible as we can. | Lead time | Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery. |
| Guarantee | 100% original assembled new ; 30 days warranty |
| Payment | Hang Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express as you require |

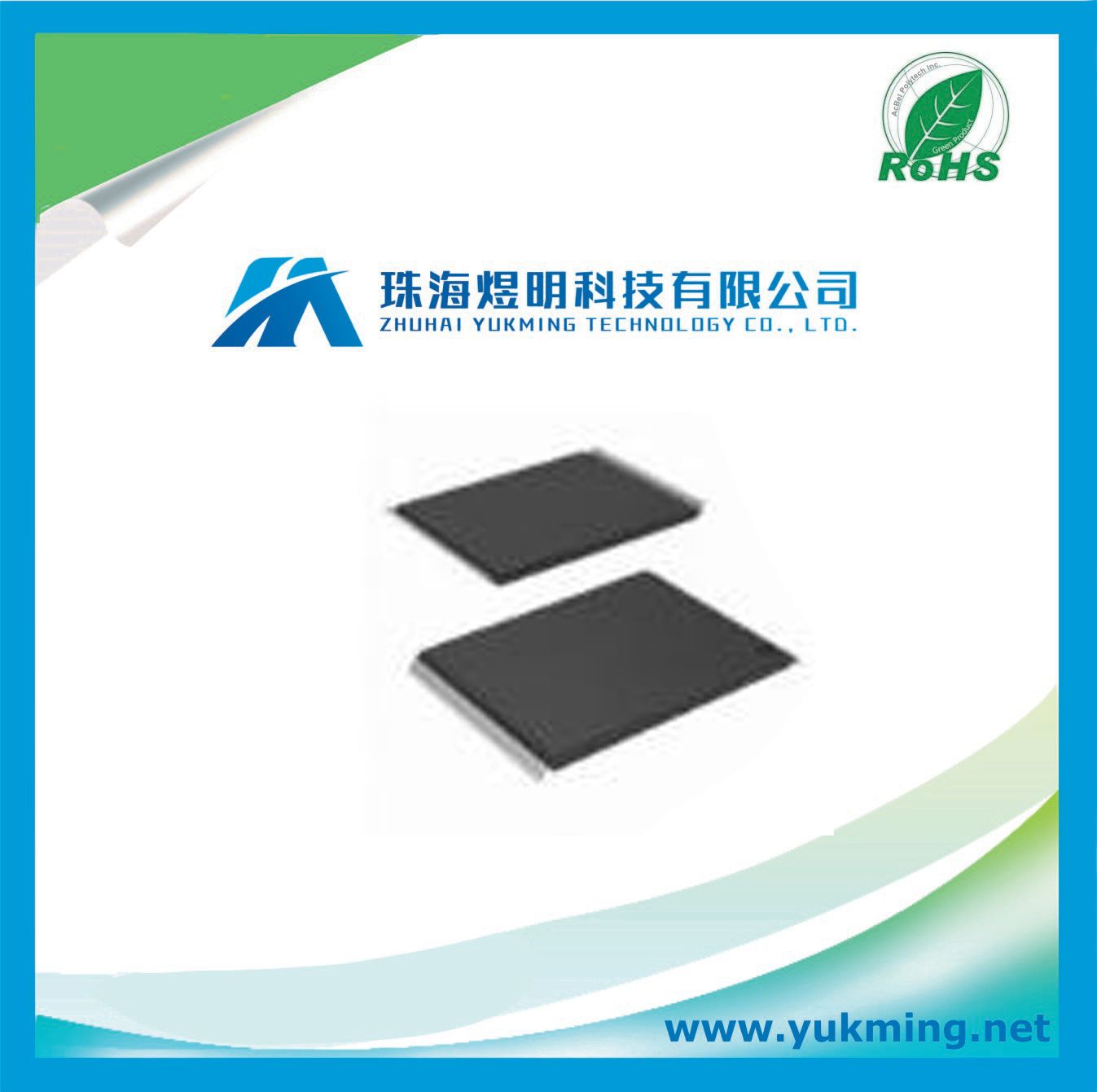

PRODUCT CATEGORYFlash DESCRIPTIONNOR Flash Parallel 3V/3.3V 256M-bit 32M x 8/16M x 16 100ns 56-Pin TSOP Tray SpecificationsEU RoHS Compliant Density (bit) 256MCell Type NORInterface Type ParallelMaximum Operating Current (mA) 110Block Organization SymmetricalArchitecture SectoredProgramming Voltage (V) 2.7 to 3.6|11.5 to 12.5Timing Type AsynchronousMaximum Access Time (ns) 100Programmability YesNumber of Words 32M/16MBoot Block NoTypical Operating Supply Voltage (V) 3|3.3Address Bus Width (bit) 25/24Number of Bits per Word (bit) 8/16Minimum Operating Temperature (°C) -40Maximum Operating Temperature (°C) 85Packaging TrayDensity in Bits (bit) 268435456Maximum Operating Supply Voltage (V) 3.6Minimum Operating Supply Voltage (V) 2.7Mounting Surface MountPackage Height (mm) 1Package Length (mm) 14Package Width (mm) 18.4PCB changed 56Standard Package Name SOPSupplier Package TSOPPin Count 56Lead Shape Gull-wing Distinctive CharacteristicsSingle 3V read/program/erase (2.7-3.6 V)Enhanced VersatileI/O™ control- All input levels (address, control, and DQ input levels) and outputsare determined by voltage on VIO input. VIO range is 1.65 to VCC90 nm MirrorBit process technology8-word/16-byte page read buffer32-word/64-byte write buffer reduces overall programmingtime for multiple-word updatesSecured Silicon Sector region- 128-word/256-byte sector for permanent, secure identificationthrough an 8-word/16-byte random Electronic Serial Number- Can be programmed and locked at the factory or by the customerUniform 64Kword/128KByte Sector Architecture- S29GL01GP: One thousand twenty-four sectors- S29GL512P: Five hundred twelve sectors- S29GL256P: Two hundred fifty-six sectors- S29GL128P: One hundred twenty-eight sectors100,000 erase cycles per sector typical20-year data retention typicalOffered Packages- 56-pin TSOP- 64-ball Fortified BGASuspend and Resume commands for Program and EraseoperationsWrite operation status bits indicate program and eraseoperation completionUnlock Bypass Program command to reduce programmingtimeSupport for CFI (Common Flash Interface)Persistent and Password methods of Advanced SectorProtectionWP#/ACC input- Accelerates programming time (when VHH is applied) for greaterthroughput during system production- Protects first or last sector regardless of sector protection settingsHardware reset input (RESET#) resets deviceReady/Busy# output (RY/BY#) detects program or erasecycle completion
