Integrated Circuit New and Original Sn74ls04dr

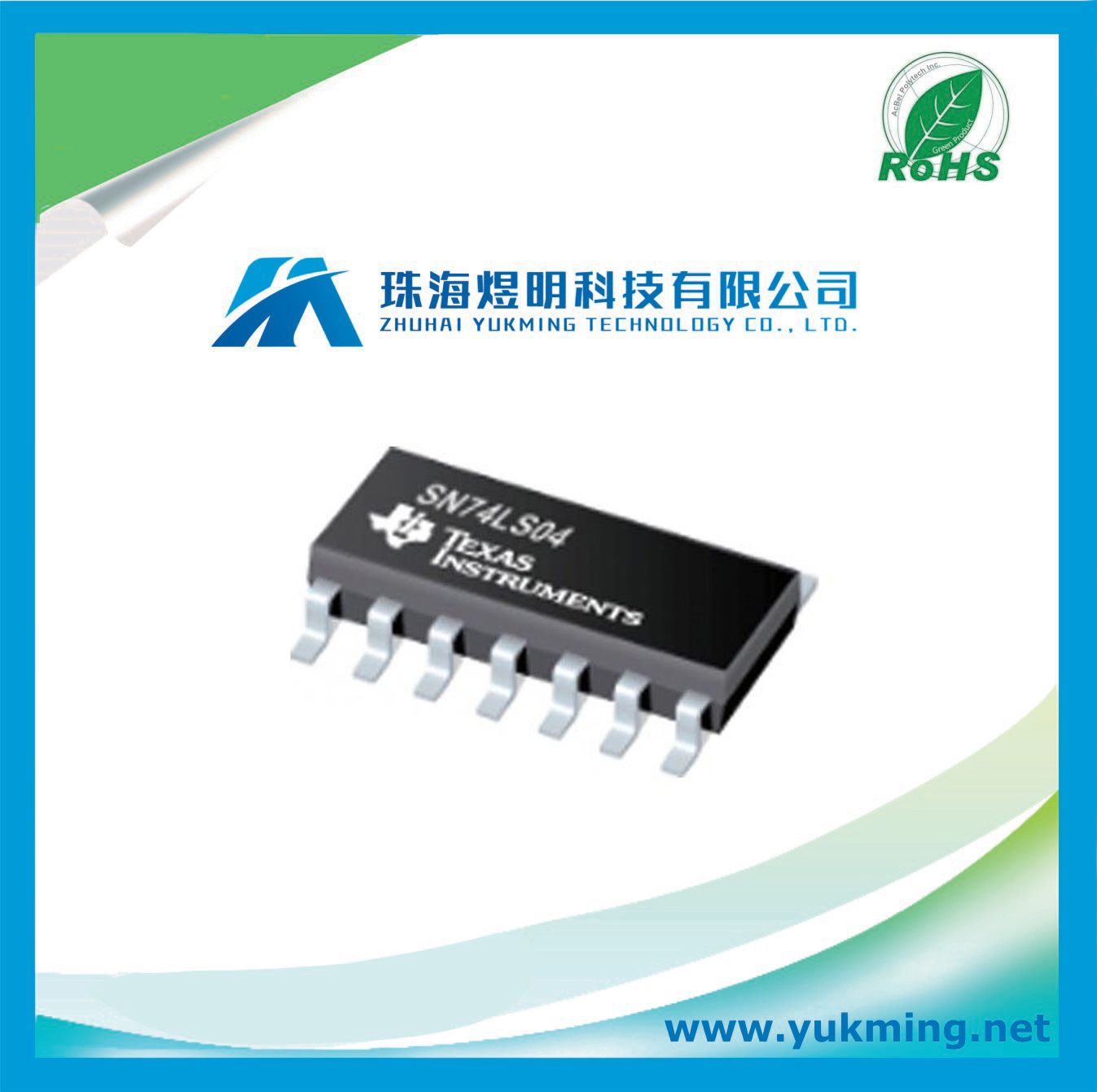

Name: Integrated Circuit New and Original Sn74ls04dr
Brand: all-electronics-online.com
SKU: 796600885
Availability: InStock
Rating: 5 (50 reviews)

Price:	US $ 0.1-1.0/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SN74LS04DR
Logic Family:	Ls
Logic Function:	Inverter
Fabrication Technology:	Bipolar
Number Of Elements Per Chip:	6
Maximum High Level Output Current (Ma):	-0.4
Maximum Low Level Output Current (Ma):	8
Operation Temperature Range:	0 to 70 Degree C

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Inverter Schmitt Trigger

DESCRIPTION
Inverter 6-Element Bipolar 14-Pin SOIC T/R

Now you can convert a noisy, analog signal into a clean, digital signal with ease using Texas Instruments' SN74LS04DR inverting Schmitt trigger! This inverting Schmitt trigger has a minimum operating temperature of 0 °C and a maximum of 70 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.

Specifications
EU RoHS Compliant
Logic Family LS
Logic Function Inverter
Fabrication Technology Bipolar
Number of Elements per Chip 6
Maximum High Level Output Current (mA) -0.4
Maximum Low Level Output Current (mA) 8
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 70
Packaging Tape and Reel
Minimum Operating Supply Voltage (V) 4.75
Maximum Operating Supply Voltage (V) 5.25
Typical Operating Supply Voltage (V) 5
Absolute Propagation Delay Time (ns) 15
Temperature Grade Commercial
Mounting Surface Mount
Package Height (mm) 1.5(Max)
Package Length (mm) 8.75(Max)
Package Width (mm) 4(Max)
PCB changed 14
Standard Package Name SOP
Supplier Package SOIC
Pin Count 14
Lead Shape Gull-wing

Features
• Dependable Texas Instruments Quality and Reliability

Description
These devices contain six independent inverters.

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
