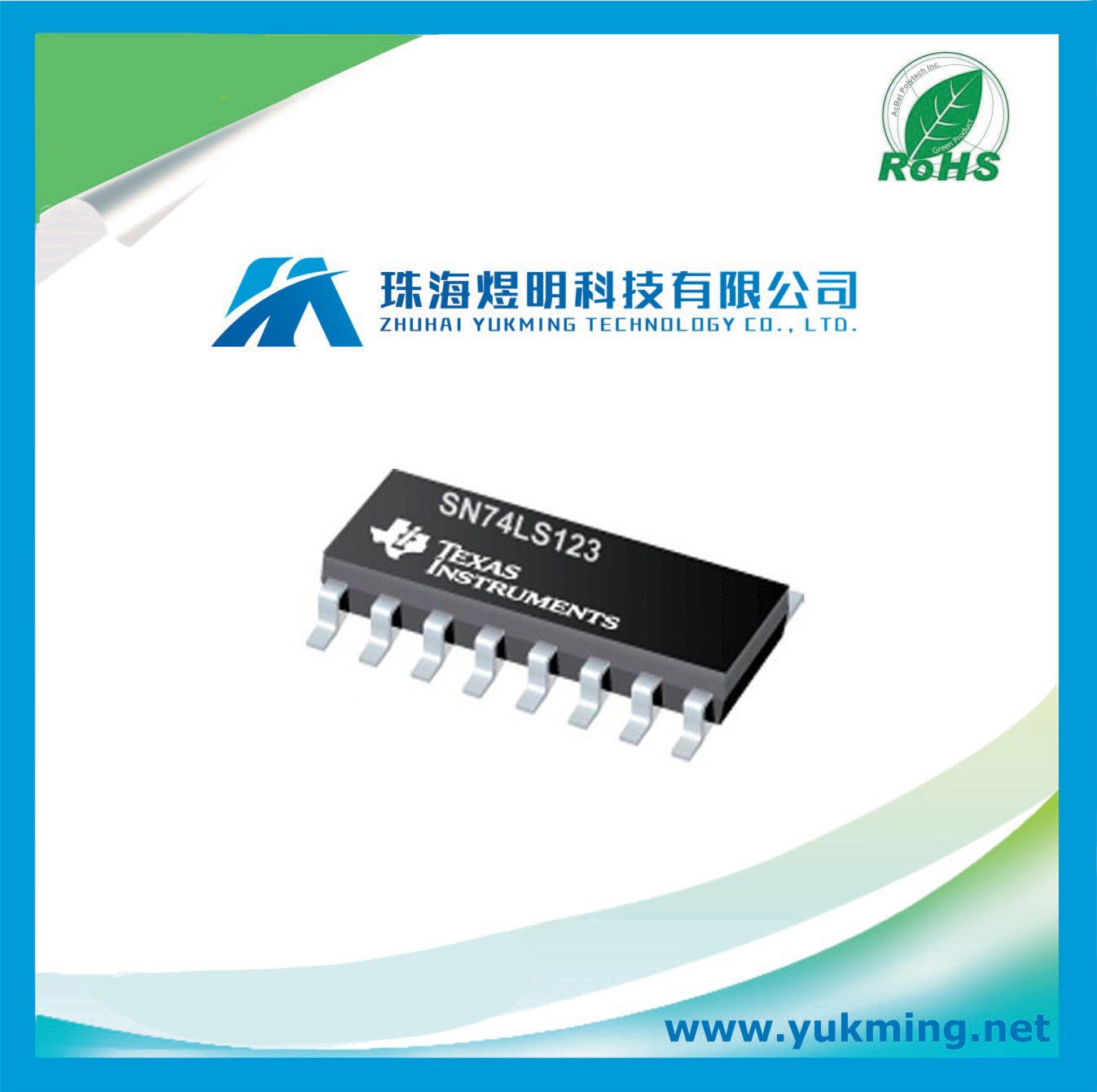

Integrated Circuit of Monostable Multivibrator IC Sn74ls123n

Name: Integrated Circuit of Monostable Multivibrator IC Sn74ls123n
Brand: all-electronics-online.com
SKU: 796716825
Availability: InStock
Rating: 4.5 (41 reviews)

Price:	US $ 0.3-1.5/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SN74LS123N
Logic Family:	Ls
Logic Function:	Monostable Multivibrator
Fabrication Technology:	Bipolar
Number Of Elements Per Chip:	2
Maximum High Level Output Current (Ma):	-0.4
Maximum Low Level Output Current (Ma):	8
Minimum Operating Supply Voltage (V):	4.75
Maximum Operating Supply Voltage (V):	5.25
Typical Operating Supply Voltage (V):	5
Maximum Quiescent Current (Ma):	12(Typ)

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Monostable Multivibrator

DESCRIPTION
Monostable Multivibrator Dual 16-Pin PDIP Tube

Think of Texas Instruments' SN74LS123N monostable multivibrator the next time you need to be alerted when a chosen condition is met within your project. This monostable multivibrator has an operating temperature range of 0 °C to 70 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.

Specifications
EU RoHS Compliant
Logic Family LS
Logic Function Monostable Multivibrator
Fabrication Technology Bipolar
Number of Elements per Chip 2
Maximum High Level Output Current (mA) -0.4
Maximum Low Level Output Current (mA) 8
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 70
Minimum Operating Supply Voltage (V) 4.75
Packaging Tube
Maximum Operating Supply Voltage (V) 5.25
Typical Operating Supply Voltage (V) 5
Maximum Quiescent Current (mA) 12(Typ)
Absolute Propagation Delay Time (ns) 56
Mounting Through Hole
Package Height (mm) 5.08(Max) - 0.51(Min)
Package Length (mm) 19.69(Max)
Package Width (mm) 6.6(Max)
PCB changed 16
Standard Package Name DIP
Supplier Package PDIP
Pin Count 16
Lead Shape Through Hole

Features
• D-C Triggered from Active-High or Active-Low Gated Logic Inputs
• Retriggerable for Very Long Output Pulses, Up to 100% Duty Cycle
• Overriding Clear Terminates Output Pulse
• '122 and 'LS122 Have Internal Timing Resistors
