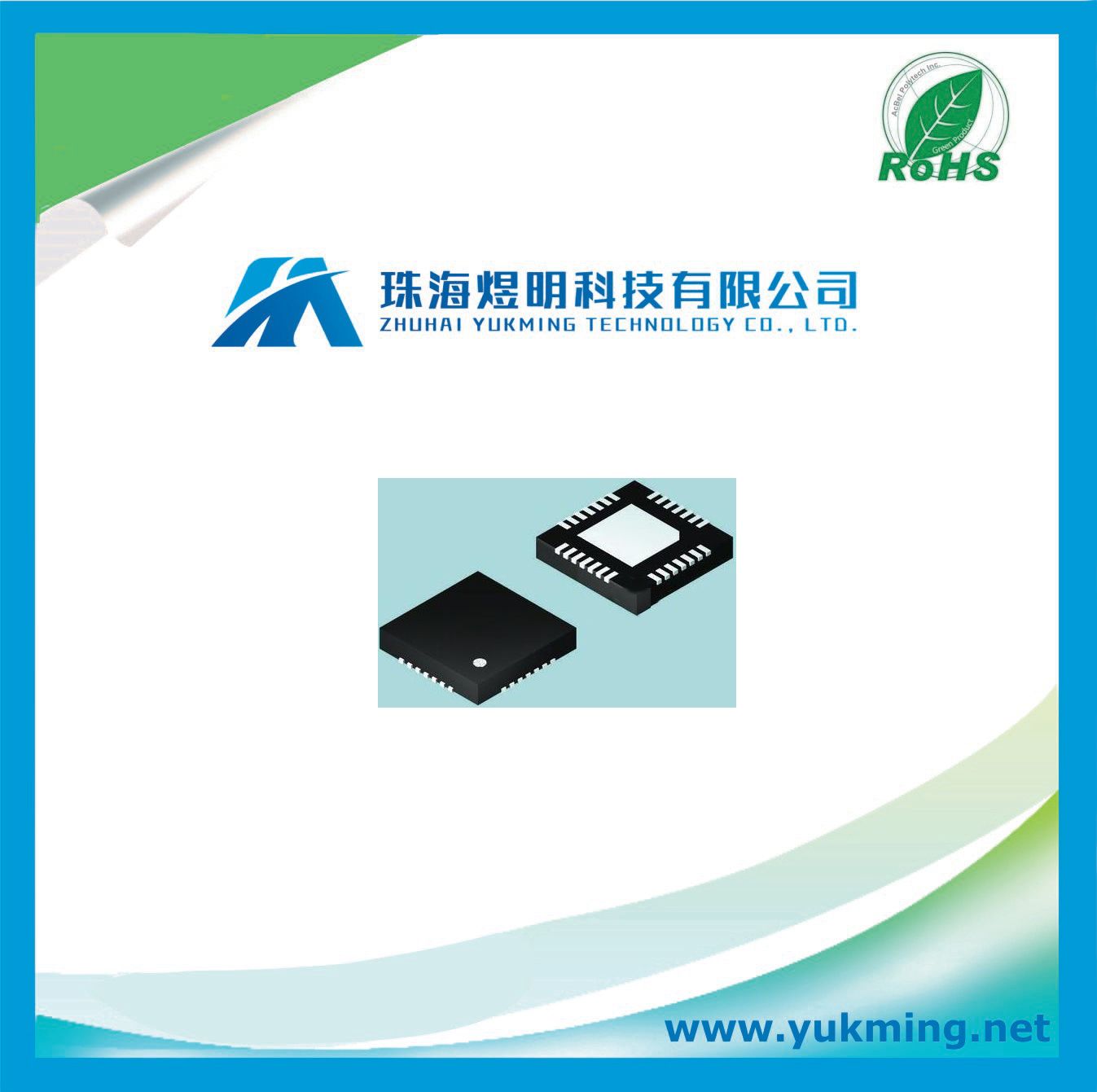

Integrated Circuit Pic16lf1847-Imv of Microcontroller IC

Prod Model:	PIC16LF1847-IMV
Family Name:	Pic16
Data Bus Width (Bit):	8
Maximum Clock Rate (MHz):	32
Maximum CPU Frequency (MHz):	32
Operating Temperature Range:	-40 to 85 Degree C

Product Description

MANUFACTURER
Microchip Technology

PRODUCT CATEGORY
Microcontroller

DESCRIPTION
MCU 8-bit PIC16 PIC RISC 14KB Flash 3.3V 28-Pin UQFN EP Tube

This PIC16LF1847-I/MV microcontroller from Microchip Technology will make your CPU more versatile and quick. This microcontroller has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 32 MHz. This device is based on the PIC core architecture. Its flash program memory is 14KB. Its ADC resolution is 10. This device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.5 V, while its maximum is 3.6 V. This is a 8 bit processor.

Specifications

EU RoHS Compliant
Family Name PIC16
Data Bus Width (bit) 8
Instruction Set Architecture RISC
Maximum Clock Rate (MHz) 32
Maximum CPU Frequency (MHz) 32
Device Core PIC
Program Memory Type Flash
Program Memory Size 14KB
RAM Size 1KB
Number of Programmable I/Os 15
Core Architecture PIC
Programmability Yes
Number of Timers 5
Interface Type I2C/SPI/USART
CAN 0
I2C 2
SPI 2
Watchdog 1
Ethernet 0
UART 0
Analog Comparators 2
USART 1
USB 0
I2S 0
Maximum Operating Supply Voltage (V) 3.6
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
ADC Channels 12
ADC Resolution 10
Number of ADCs Single
Packaging Tube
Maximum Power Dissipation (mW) 800
Minimum Operating Supply Voltage (V) 2.5
Typical Operating Supply Voltage (V) 3.3
Temperature Flag Opr
Supplier Temperature Grade Industrial
CECC Qualified No
Mounting Surface Mount
Package Height (mm) 0.48
Package Length (mm) 4
Package Width (mm) 4
PCB changed 28
Standard Package Name QFN
Supplier Package UQFN EP
Pin Count 28
Lead Shape No Lead
