Integrated Circuit R5f21258snfp of Arm Microcontroller IC

Name: Integrated Circuit R5f21258snfp of Arm Microcontroller IC
Brand: all-electronics-online.com
SKU: 796520455
Availability: InStock
Rating: 4.4 (107 reviews)

Price:	US $ 1.63/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	R5F21258SNFP

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Family: ARM - Microcontroller
Series: R8C/2x/25
Core processor: R8C
Core size: 16-bit
Speed: 20MHz
Connectivity: I²C, LIN, SIO, SSU, UART/USART
Peripheral: POR
I/O numbers: 41
Program storage capacity: 64KB(64K x 8)
Program storage type: Flash
RAM capacity: 3K x 8
Voltage - Power source (Vcc/Vdd): 2.2 V ~ 5.5 V
Data converter: A/D 12x10b
Oscillator type: Inside
Operation temperature: -20°C ~ 85°C

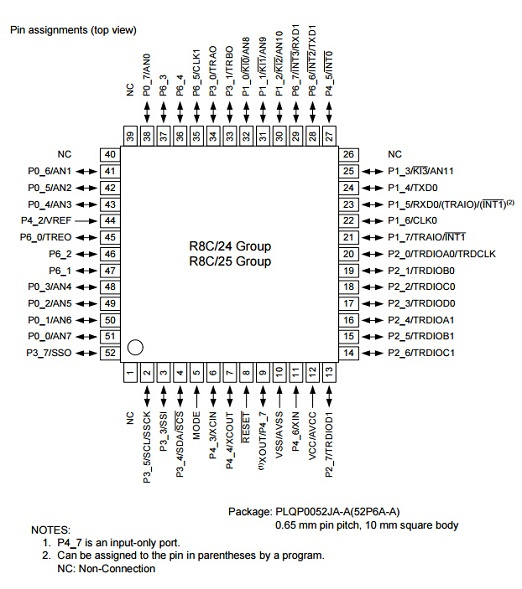

Package: 52-LQFP

These MCUs are fabricated using a high-performance silicon gate CMOS process, embedding the R8C/Tiny SeriesCPU core, and are packaged in a 52-pin molded-plastic LQFP or a 64-pin molded-plastic FLGA. It implementssophisticated instructions for a high level of instruction efficiency. With 1 Mbyte of address space, they are capable ofexecuting instructions at high speed.Furthermore, the R8C/25 Group has on-chip data flash (1 KB x 2 blocks).The difference between the R8C/24 Group and R8C/25 Group is only the presence or absence of data flash. Theirperipheral functions are the same.

Application
Electronic household appliances, office equipment, audio equipment, consumer products, etc
